P5 Indoor SMD LED Display Full Color Lightweight Thin Aluminium
Panel Board
Quick Details:
1, Pixel Pitch: 5mm.
2, Recommended minimum viewing distance: 5m.
3, SMD LEDs, viewing angle: 160°/ 160°.
4, RGB full color: 281trillions.
5, Digital process: 16bits, refresh rate: 1,920Hz.
Description:
TBC SMD led displays include outdoor/indoor stage rental/fixed
installation led screens: 1.25mm, 1.33mm, 1.45mm, 1.55mm, 1.667mm,
1.875mm, 2mm, 2.5mm, 2.6mm, 2.976mm, 3mm, 3.2mm, 3.75mm, 3.91mm,
4mm, 4.81mm, 5mm, 5.9mm, 6mm, 8mm, 10mm, 12mm, 16mm.
Features and Advantages:
1, Magnetic module design, front service.
2, Thin, lightweight, easy install.
3, High gray scale, clear image.
4, High refresh rate up to 2,000, no strips when taking photos.
5, Air fan free, zero noise.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 1500 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 140(+70/-70) |
| Viewing angle - Vertical | deg. | 140(+70/-70) |
| Cabinet weight | kg | 30 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 120 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP40/IP20 |
| Operating temperature range | deg. C | 0 to 40 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 5. |
| Pixel matrix per cabinet | | 192x192 |
| Pixels per cabinet | | 36864 |
| Lines per meter | | 200 |
| Pixels per sq. meter | | 40000 |
| LEDs per sq. meter | | 40000 |
| Recommended minimum viewing distance | m | 5 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1440 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 490/170 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Application:

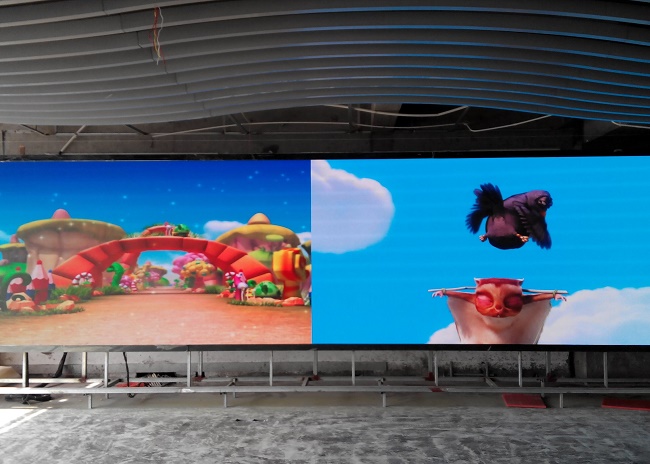

TBC SMD led screens are widely used in shopping mall, office,
meeting room, hotel, restaurant, cafe, concert hall, public places,
building, pole, church, cinema, advertising media and so on.
