Outdoor Full Color LED Display P8 Single Face Front Open Clear
Video Wall
Quick Details:
1, Pixel Pitch: 8mm.
2, RGB full color, refresh rate: 2,000:1, high contrast: 4,000:1.
3, IP rating: front: IP65/ rear: IP54.
4, SMD, Wide viewing angle: 160°/ 160°.
5, Single face, front open, customized cabinet.
6, 3years warranty.
Description:
TBC full color led displays include outdoor led billboard/ indoor
led video wall, fixed installation or rental led screen, the pixel
various from 1.25mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 6.77mm, 8mm,
10mm, 12mm, 16mm.
Front accessible design allows customers to make thinner LED
display, which is suitable for some special locations where there
is no more space for rear maintenance.
Application:
TBC full color led displays are widely used for commercial
advertising, media broadcasting, stage background, wall-mounted,
pole-mounted or hang-mounted in school, airport, station, shopping
mall, building, hotel, square, theatre, concert hall, stadium,
public places, and so on.
Features and Advantages:

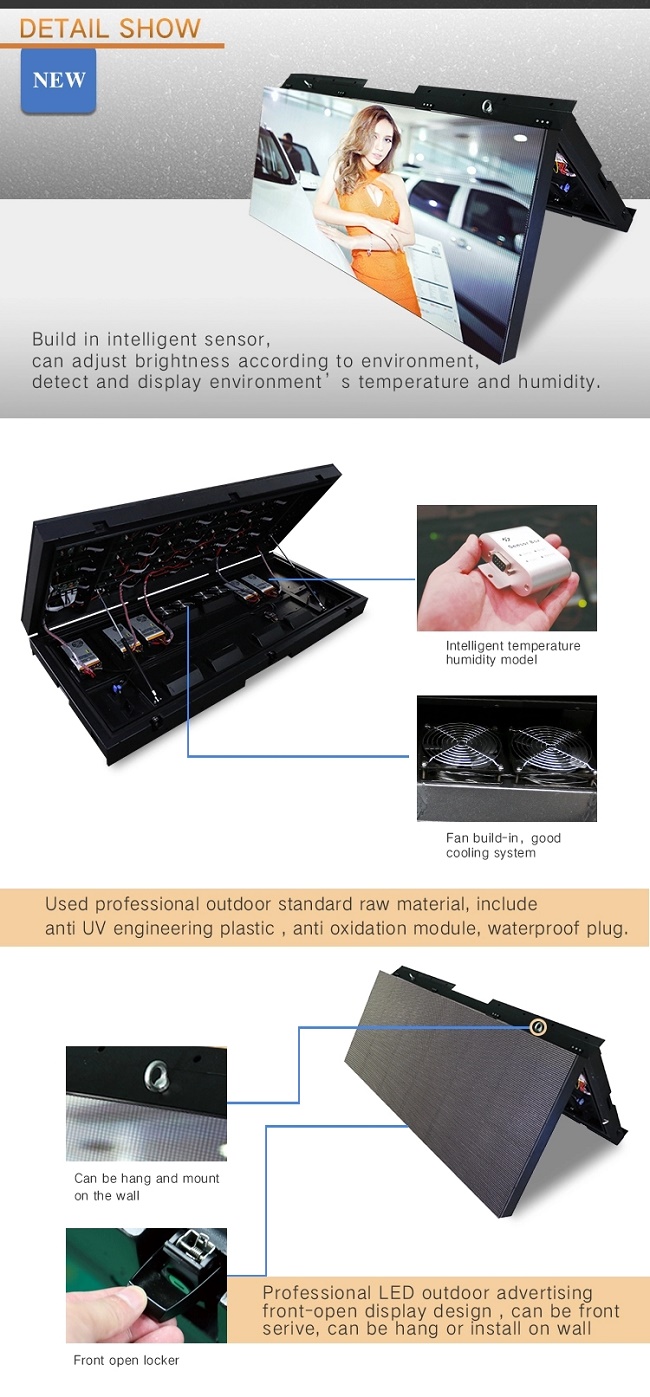

1, Build-in intelligent sensor, can adjust brightness according to
environment, detect and display environment's temperature and
himidity.
2, Good heat dissipation with fan cooling system.
3, IP65 waterproof and dust resistance, durable for any hard condition.
4, Front-open design, do front service, easy for maintenance, wall
mounted, save maitenance space.
5, SMD LEDs ensure large viewing angle, up to 160° horizontally and
160° vertically.
6, Asynchronous control with wifi or 3G.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 6000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 61 |
| Cabinet width | mm | 1024 |
| Cabinet height | mm | 1024 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 1.05 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 8 |
| Pixel matrix per cabinet | | 128x128 |
| Pixels per cabinet | | 16384 |
| Lines per meter | | 125 |
| Pixels per sq. meter | | 15625 |
| LEDs per sq. meter | | 15625 |
| Recommended minimum viewing distance | m | 8 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 1330/460 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
