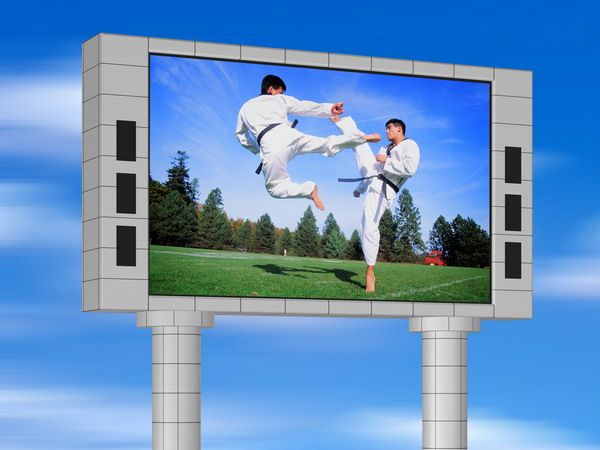

Outdoor Full Color LED Display P8 Electronic Clear Video Wall

Quick Details:

1, Pixel Pitch: 8mm.

2, Standard cabinet size: 1024x1024x150mm, 61kg.

3, Full color, 281trillions.

4, SMD, Wide viewing angle: 160°/ 160°.

5, IP rating: front: IP65/ rear: IP54.

6, Recommended minium viewing distance: 8m.

Description:

TBC full color led displays include outdoor led billboard/ indoor led video wall, fixed installation or rental led screen, the pixel various from 1.25mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 6.77mm, 8mm, 10mm, 12mm, 16mm.

Features and Advantages:
1, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 160° vertically.
3, IP65 high-performance waterproof and dust resistance.

4, Good heat dissipation with fans and using meanwell power supply, long lifespan.

Parameter			Unit	Value
Brightness			nits	6000
Color temperature			deg.k	3200 ~ 9300
Viewing angle - Horizontal			deg.	160(+80/-80)
Viewing angle - Vertical			deg.	160(+80/-80)
Cabinet weight			kg	61
Cabinet width			mm	1024
Cabinet height			mm	1024
Cabinet depth			mm	150
Cabinet area			sq. m.	1.05
Cabinet material				Cold Steel
Aspect ratio				1:1
Ingress protection (Front/Rear)			IP	IP65/IP54
Operating temperature range			deg. C	- 20 to 50
Operating humidity range			HR	10％ to 90％
Pixel type and configuration			R/G/B	SMD 3in1
Pixel pitch			mm	8
Pixel matrix per cabinet				128x128
Pixels per cabinet				16384
Lines per meter				125
Pixels per sq. meter				15625
LEDs per sq. meter				15625
Recommended minimum viewing distance			m	8
Colours				281trillion
Gray scale			Levels	65536 levels per colour
Brightness control			Levels	100
Digital processing			bit	16
Frame rate			Hertz	60
Display refresh rate			Hertz	1920
Input voltage			VAC	110/240
Input power frequency			Hertz	50/60
Input power (max/avg)			Watts per sq.m	1330/460
MTBF			Hours	≥10000
Lifetime (50%Brightness)			Hours	≥100000
Module brightness uniformity				＜5％
Blind spot rate				＜0.0001
Earth leakage current			mA	＜2
Red wavelength			nm	623
Green wavelength			nm	525
Blue wavelength			nm	470
Panel input format (with video processor)				VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection				CAT6 cable/Fiber
Operating system				Windows(XP/Vista/7/8/10)
Control distance				Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

Application:

TBC full color led displays are widely used for commercial advertising, media broadcasting, stage background, wall-mounted, pole-mounted or hang-mounted in school, airport, station, shopping mall, building, hotel, store, cinema, concert hall, stadium, public places, and so on.
