Outdoor P10 SMD LED Display Single Face Front Open Wall-mounted
Quick Details:
1, Pixel Pitch: 10mm.
2, Real SMD, Wide viewing angle: 160°/ 160°.
3, IP rating: front: IP65/ rear: IP54.
4, Customized size according to installation place.
5, Single face, front service, easy for maintenance.
6, 3years warranty.
Description:
TBC full color led displays include outdoor led billboard/ indoor
led video wall, fixed installation or rental led screen, the pixel
various from 1.25mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 6.77mm, 8mm,
10mm, 12mm, 16mm.
Front accessible design allows customers to make thinner LED
display, which is suitable for some special locations where there
is no more space for rear maintenance.
Features and Advantages:
1, Easy and fast installation, light weight.
2, Front open service, easy for maintenance.
3, Save maintenance space, customized cabinet for special
installing site.
3, SMD LEDs ensure large viewing angle, up to 160° horizontally and
160° vertically.
4, IP65 high-performance waterproof and dust resistance.
5, Good heat dissipation with fans and using meanwell power supply,
long lifespan.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 6000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 53 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 10 |
| Pixel matrix per cabinet | | 96x96 |
| Pixels per cabinet | | 9216 |
| Lines per meter | | 100 |
| Pixels per sq. meter | | 10000 |
| LEDs per sq. meter | | 10000 |
| Recommended minimum viewing distance | m | 10 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 1000/350 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |

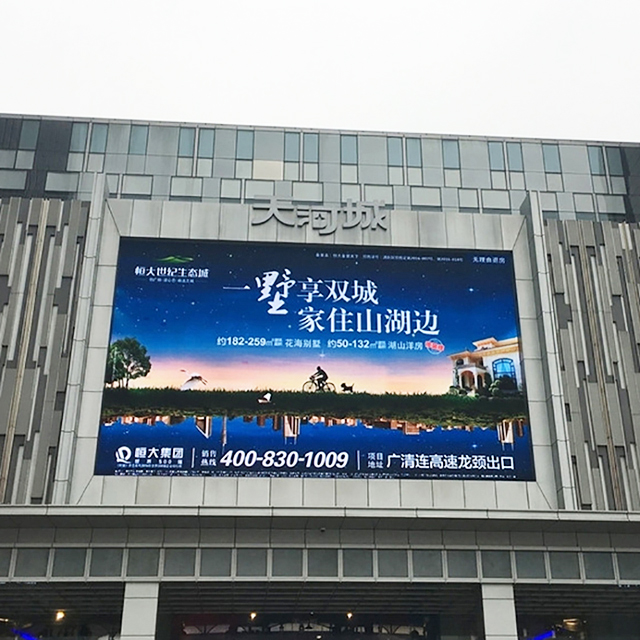

Application:
TBC full color led displays are widely used for commercial
advertising, media broadcasting, stage background, wall-mounted,
pole-mounted or hang-mounted in school, airport, station, shopping
mall, building, hotel, store, cinema, concert hall, stadium, public
places, and so on.
