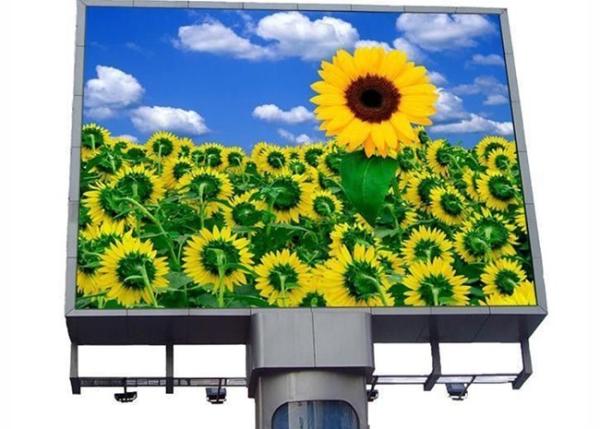

Outdoor Led Advertising display P16 Big Digital Board Clear Performance

Quick Details:

1, Pixel Pitch: 16mm.

2, Standard cabinet size: 1024×1024x150mm.

3, IP rating: front: IP65/ rear: IP54.

4, Real SMD, Wide viewing angle: 160°/ 160°.

5, Meanwell power supply.

6, Power input: AC110V/220V, 50/60Hz.

Description:

TBC Advertising led displays include permanent installation outdoor led billboard/ indoor led video wall, the pixel various from 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 6.77mm, 8mm, 10mm, 12mm, 16mm.

Within these series, outdoor 4mm, 5mm, 10mm and indoor 3mm, 4mm are the most hot-selling and highest cost-effective types.

Features and Advantages:
1, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 160° vertically.
3, Cabinet design lightweight, side handle for easy carrying and assemble.

4, IP65 high-performance waterproof and dust resistance.
5, Good heat dissipation with fans and using meanwell power supply, long lifespan.

6, High fresh rate up to 2,000Hz, high contrast to 4,000:1, vivid color.

Parameter			Unit	Value
Brightness			nits	6000
Color temperature			deg.k	3200 ~ 9300
Viewing angle - Horizontal			deg.	160(+80/-80)
Viewing angle - Vertical			deg.	160(+80/-80)
Cabinet weight			kg	61
Cabinet width			mm	1024
Cabinet height			mm	1024
Cabinet depth			mm	150
Cabinet area			sq. m.	1.05
Cabinet material				Cold Steel
Aspect ratio				1:1
Ingress protection (Front/Rear)			IP	IP65/IP54
Operating temperature range			deg. C	- 20 to 50
Operating humidity range			HR	10％ to 90％
Pixel type and configuration			R/G/B	SMD 3in1
Pixel pitch			mm	16
Pixel matrix per cabinet				64x64
Pixels per cabinet				4096
Lines per meter				62
Pixels per sq. meter				3906
LEDs per sq. meter				3906
Recommended minimum viewing distance			m	16
Colours				281trillion
Gray scale			Levels	65536 levels per colour
Brightness control			Levels	100
Digital processing			bit	16
Frame rate			Hertz	60
Display refresh rate			Hertz	1920
Input voltage			VAC	110/240
Input power frequency			Hertz	50/60
Input power (max/avg)			Watts per sq.m	1000/350
MTBF			Hours	≥10000
Lifetime (50%Brightness)			Hours	≥100000
Module brightness uniformity				＜5％
Blind spot rate				＜0.0001
Earth leakage current			mA	＜2
Red wavelength			nm	623
Green wavelength			nm	525
Blue wavelength			nm	470
Panel input format (with video processor)				VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection				CAT6 cable/Fiber
Operating system				Windows(XP/Vista/7/8/10)
Control distance				Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

Application:

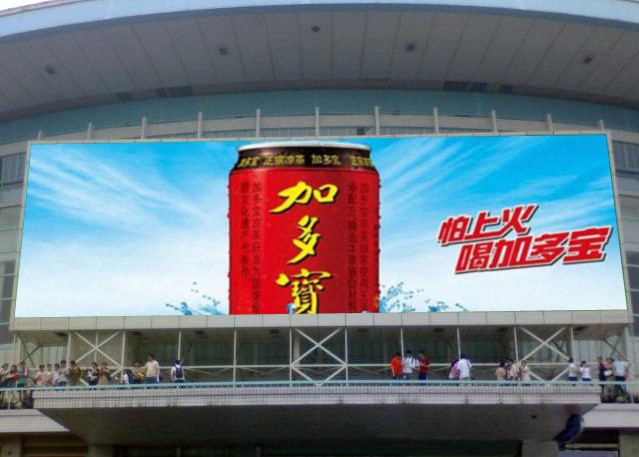

TBC fixed installation advertising led boards are widely used in airport, station, shopping mall, public places, advertising media and so on.

     Founded in 2008, Topbright Creation Limited is one of the leading LED manufacturer in China. We are able to provide huge range of LED display products and services to customers from advertising and entertainment business industries all over the world. With registered capital of 10 million CNY and nearly 300 employees, we are equipped with full series of automatic production line, including advanced manufacturing equipments and perfect testing devices, which guarantee a monthly capacity of 5000 square meters LED display.

     Our R&D team have more than 10 years experience in LED industry. They are the base support to our new products development and customized products according to customers’ requests. In order to design and develop higher quality products, our R&D team always tries best to meet the Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been listed by CE, ROHS, FCC, EMC standards.

     With perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, TBC LED has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 100 countries and regions all over the world.

     TBC philosophy is to make effective and affordable LED products for customers, we are like Toyota of LED industry: economic, reliable and effective.
