Outdoor Curved LED Screen P5.95 Lightweight Aluminium LED Panel
Display
Quick Details:
1, Pixel Pitch: 5.95mm.
2, RGB Full colors: 281trillions.
3, SMD LEDs, Wide viewing angle: 160°/ 160°.
4, Standard cabinet size: 500×500x80mm, 500x1000x80mm.
5, IP65 Waterproof.
Description:
TBC Curved LED Displays include outdoor/indoor stage rental/fixed
installation led screens: pixels include 1.25mm, 1.33mm, 1.45mm, 1.55mm, 1.667mm, 1.875mm,
2mm, 2.5mm, 2.6mm, 2.976mm, 3mm, 3.2mm, 3.75mm, 3.91mm, 4mm,
4.81mm, 5mm, 5.9mm, 6mm, 8mm, 10mm, 12mm, 16mm.
Features and Advantages:
1, Super-light weight and Ultra-thin: only 9kg in weight for
500x500mm panel, 14kg for 500x100mm panel, 80mm in thickness, can
be lifted with only one hand.
2, With fast lock system, easy to install and dismantle, quick
within 8seconds.
3, High refresh rate 1920Hz, no strips for camera shooting.
4, Flexible installation, can be stacked on floor or hung on truss.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 5000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 140(+70/-70) |
| Viewing angle - Vertical | deg. | 140(+70/-70) |
| Cabinet weight | kg | 9 |
| Cabinet width | mm | 500 |
| Cabinet height | mm | 500 |
| Cabinet depth | mm | 80 |
| Cabinet area | sq. m. | 0.25 |
| Cabinet material | | Aluminum |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 5.95 |
| Pixel matrix per cabinet | | 84x84 |
| Pixels per cabinet | | 7056 |
| Lines per meter | | 168 |
| Pixels per sq. meter | | 28224 |
| LEDs per sq. meter | | 28224 |
| Recommended minimum viewing distance | m | 6 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 800/280 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Application:

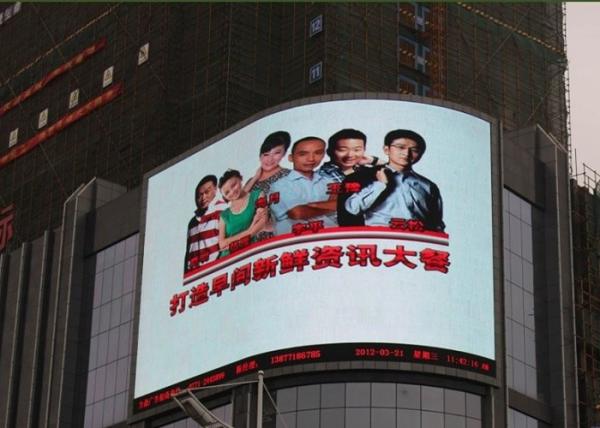

TBC Curved led video walls are usually used for stage background of
live shows, advertising and broadcasting in operas, theater,
church, concert hall, bars, shopping mall, airport, building,
hotel, restaurant and so on.
