Indoor Curved LED Screen P5 Arc Video Wall Full Color Front Access
Panel
Quick Details:
1, Pixel Pitch: 5mm.
2, RGB full color: 281trillions.
3, Digital process: 16bits.
4, SMD LEDs, Wide viewing angle: 160°/ 160°.
5, Recommended minimum viewing distance: 5m.
Description:
TBC Curved LED Displays include outdoor/indoor stage rental/fixed
installation led screens: pixels include 1.25mm, 1.33mm, 1.45mm,
1.55mm, 1.667mm, 1.875mm, 2mm, 2.5mm, 2.6mm, 2.976mm, 3mm, 3.2mm,
3.75mm, 3.91mm, 4mm, 4.81mm, 5mm, 5.9mm, 6mm, 8mm, 10mm, 12mm,
16mm.
Features and Advantages:
1, Magnetic module design, front service.
2, Thin, lightweight, easy install.
3, High gray scale, clear image.
4, High refresh rate up to 2,000, no strips when taking photos.
5, Air fan free, zero noise.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 1500 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 140(+70/-70) |
| Viewing angle - Vertical | deg. | 140(+70/-70) |
| Cabinet weight | kg | 30 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 120 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP40/IP20 |
| Operating temperature range | deg. C | 0 to 40 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 5. |
| Pixel matrix per cabinet | | 192x192 |
| Pixels per cabinet | | 36864 |
| Lines per meter | | 200 |
| Pixels per sq. meter | | 40000 |
| LEDs per sq. meter | | 40000 |
| Recommended minimum viewing distance | m | 5 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1440 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 490/170 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Application:

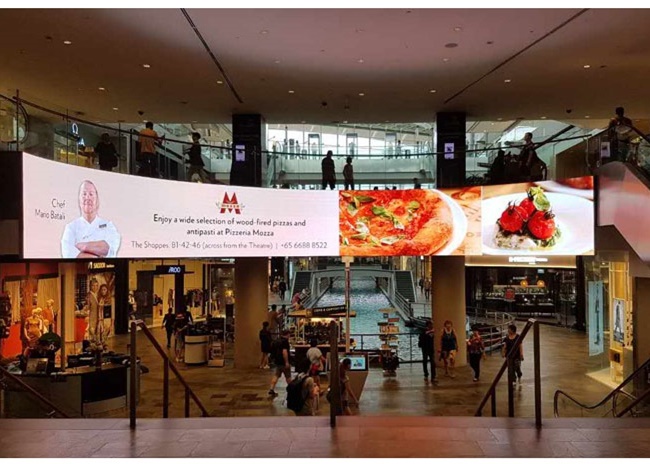

TBC Curved led video walls are usually used for stage background of
live shows, wall-mounted commercial advertising and broadcasting in
operas, theater, church, concert hall, bars, shopping mall,
airport, building, hotel, restaurant and so on.
