P10 Indoor Stadium Perimeter LED Display Event Video Broadcasting
Board
Quick Details:
1, Pixel Pitch: 10mm.
2, Indoor stadium use.
3, Aluminium cabinet, stadium, rental dual usage.
3, Full colors: 281trillions.
4, SMD leds, viewing angle: 160°/ 160°.
5, Fresh rate: 1,920Hz.
6, Digital process: 16bits.
Description:
TBC Stadium Perimeter LED Displays include outdoor led screen: 8mm,
10mm, 12mm and indoor led perimeter: 6mm and 10mm.
Features and Advantages:
1, Classic design, light weight aluminium cabinet, easy for moving.
2, Convenient connections enable fast and easy installation.
3, SMD lamp, wide viewing angle for audiances from different
directions.
4, Soft cushion on top for player and screen protection.
5, Back-up data system for non-stop displaying.
6, Standard cabinet size: 960×960x150mm, can also custom size
1280x960mm or 1920x960mm.
7, Meet FIFA safety standard.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 1500 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 50 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 4:3 |
| Ingress protection (Front/Rear) | IP | IP40/IP20 |
| Operating temperature range | deg. C | 0 to 40 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 10 |
| Pixel matrix per cabinet | | 96x96 |
| Pixels per cabinet | | 9216 |
| Lines per meter | | 100 |
| Pixels per sq. meter | | 10000 |
| LEDs per sq. meter | | 10000 |
| Recommended minimum viewing distance | m | 10 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 520/180 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Application:

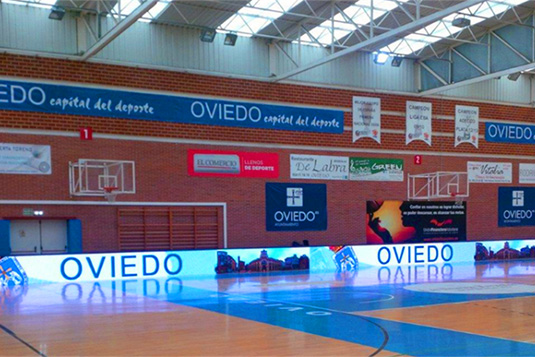

TBC Stadium Perimeter LED Screen boards are usually used for brand
logo message advertising, live broadcasting in basketball or
football stadium.
