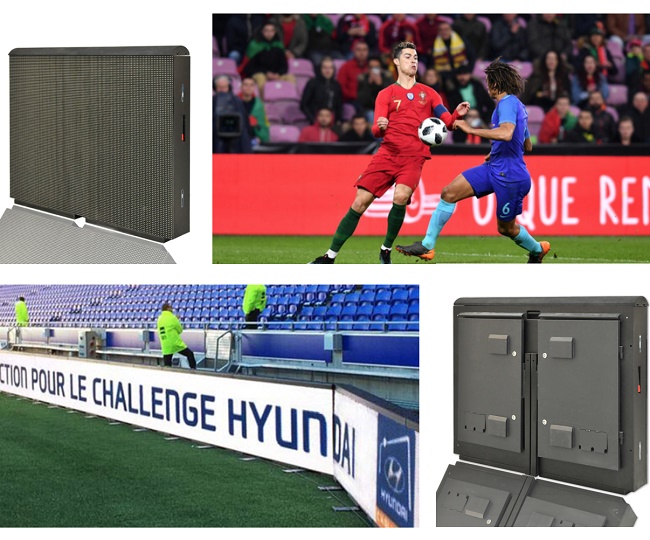

Football Stadium LED Display Outdoor Perimeter P10 Aluminium Screen
Board
Quick Details:
1, Pixel Pitch: 10mm.
2, SMD leds, viewing angle: 160°/ 160°.
3, Full colors: RGB 281trillions.
4, Aluminium cabinet, stadium, rental dual usage.
5, Standard cabinet size: 960×960x150mm, 1280x960mm or 1920x960mm
customized cabinet also available.
6, IP65 Waterproof.
Description:
TBC Stadium Perimeter LED Displays include outdoor led screen: 8mm,
10mm, 12mm and indoor led perimeter: 6mm and 10mm.
Application:
TBC Stadium Perimeter LED Screens are usually used for brand logo
message advertising, live broadcasting in basketball or football
stadium.
Features and Advantages:
1, Classic design, light weight aluminium cabinet, easy for moving.
2, Convenient connections enable fast and easy installation.
3, Wide viewing angle 160°/160° and adjustable cabinet inclining angle for best viewing performance for audiances from different
directions.
4, Soft mask for player and screen panel protection.
5, Back-up data system for non-stop displaying.
6, FIFA safety standard, easy and safe to use.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 6000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 50 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 4:3 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 10 |
| Pixel matrix per cabinet | | 96x96 |
| Pixels per cabinet | | 9216 |
| Lines per meter | | 100 |
| Pixels per sq. meter | | 10000 |
| LEDs per sq. meter | | 10000 |
| Recommended minimum viewing distance | m | 10 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 960/330 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
