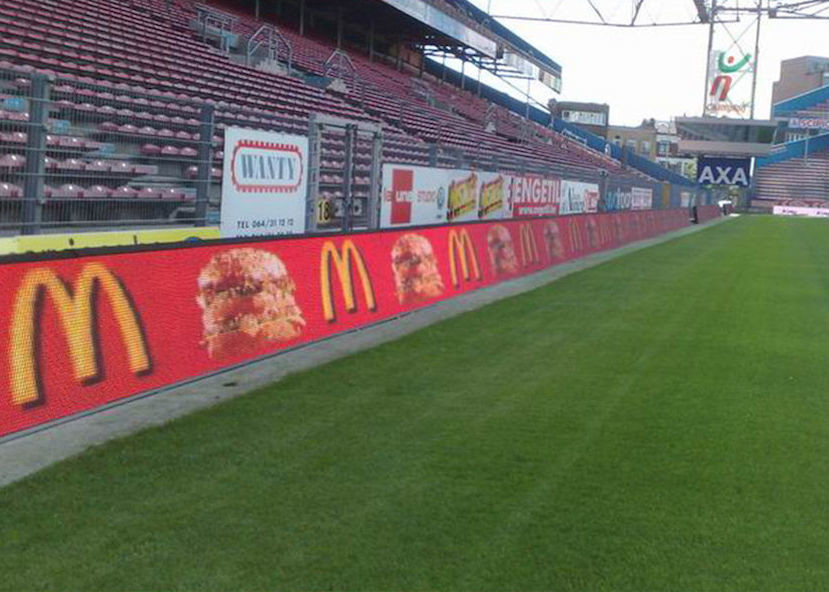

Outdoor P10mm Football Stadium Led Banner Screen Display Outdoor IP65 Aluminum Cabinet

Mechanical

• Quick-service modules. Module / cabinet change time <1 min, without affecting running system – i.e. hot-swappable.
• Mechanism for access gates at several locations (optional), with no signal interruption.
• Mechanical connectors to align the system, and minimise gaps between cabinets.
• Black non-glare finishing on face-plate, and black/dark neutral colours on cabinet.
• Weather-protection to IP-65 (front) and IP-54 (back) standard.

• Rubber louvers front and top to protect cabinets from impact and players from injuries
• Transport casing designed for efficient storage and shipping (for transportable systems).

Content Control / Data Interfacing

• Optional: Individual control of brightness, gamma, colours of every single pixel/ module/cabinet.
• Default images (auto-switch feature) installed and enabled (set to static shared-rotation) in case of total connection loss with server.
• System viewed and operated as one single screen by control software.
• Control signal connection via two redundant feeding points. Fibre optic data cabling from dedicated controller locations to the two return side corners.
• Data ring loop configured; if one connection fails an automatic switch activates data source from the opposite section.

Electrical

• European-voltage system (220-240V, 50Hz).
• Single-PSU-failure tolerant concept.
• Heavy, high flex rubber cabling for cold enviroment outdoor use.
• EMC protection to highest EU standards and regulations.

     Founded in 2008, Topbright Creation Limited is one of the leading LED manufacturer in China. We are able to provide huge range of LED display products and services to customers from advertising and entertainment business industries all over the world. With registered capital of 10 million CNY and nearly 300 employees, we are equipped with full series of automatic production line, including advanced manufacturing equipments and perfect testing devices, which guarantee a monthly capacity of 5000 square meters LED display.

     Our R&D team have more than 10 years experience in LED industry. They are the base support to our new products development and customized products according to customers’ requests. In order to design and develop higher quality products, our R&D team always tries best to meet the Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been listed by CE, ROHS, FCC, EMC standards.

     With perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, TBC LED has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 100 countries and regions all over the world.

     TBC philosophy is to make effective and affordable LED products for customers, we are like Toyota of LED industry: economic, reliable and effective.
