Basketball Stadium Perimeter LED Display Indoor P6 Digital Screen
Panel
Quick Details:
1, Pixel Pitch: 6mm, SMD full color leds.
2, Refresh rate: 1,920Hz.
3, Wide viewing angle: 160°/ 160°.
4, Brightness: 1,500nits.
5, Aluminium cabinet, stadium, rental dual usage.
Description:
TBC Stadium Perimeter LED Displays include outdoor led screen: 8mm,
10mm, 12mm and indoor led perimeter: 6mm and 10mm.
Features and Advantages:
1, Convenient connections, easy and fast installation and moving.
2, TPE material soft mask, to protect the player and screen.
3, Automatic back-up data system for non-stop displaying.
4, High refresh rate, no strip for camera live broadcasting.
5, 160°/160° wide viewing angle for audiances from different
directions.
6, Adjustable cabinet inclining angle, for best viewing and camera
shooting.
7, Meet FIFA safety standard.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 1500 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 50 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 6:5 |
| Ingress protection (Front/Rear) | IP | IP40/IP20 |
| Operating temperature range | deg. C | 0 to 40 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 6 |
| Pixel matrix per cabinet | | 160x160 |
| Pixels per cabinet | | 25600 |
| Lines per meter | | 166 |
| Pixels per sq. meter | | 27777 |
| LEDs per sq. meter | | 27777 |
| Recommended minimum viewing distance | m | 6 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 500/170 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Application:

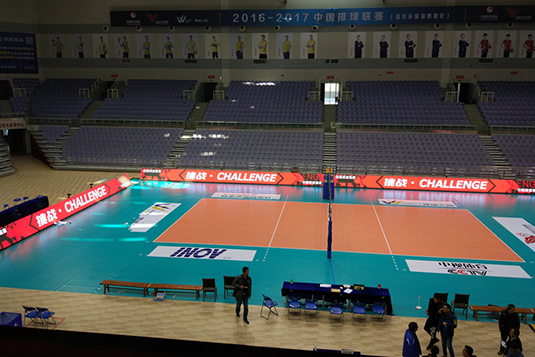

TBC Stadium Perimeter LED Screens are widely used for brand logo
message advertising, live broadcasting in basketball, soccer,
football, baseball stadium.
