    P10 Outdoor Stadium Perimeter Led Display Smd Ip65 6000 Nits With Uv Proof

    Ask Lasest Price
    Brand Name : TBC
    Model Number : Q10
    Certification : CE-EMC, CE-LVD, RoHS, ETL, FCC
    Payment Terms : T/T, Western Union, PayPal
    Supply Ability : 10,000sqm/month
    Delivery Time : 25days
    Price : Negotiable
    • Product Details
    • Company Profile

    P10 Outdoor Stadium Perimeter Led Display Smd Ip65 6000 Nits With Uv Proof

    Pixel 10mm Football Stadium Perimeter Led Screen Display Outdoor IP65 UV Proof


    Application:

    Pixel 10mm Football Stadium Perimeter Led Screen Display Outdoor IP65 UV Proof are the most durable design of led stadium perimeter for outdoor use, it's durable, reliable and easy to use, widely applied for all kinds of football, basket ball stadium.


    Features and Advantages:

    1. Angle adjustable back bracket. User can adjust the best viewing angle for audience. When rental and fix installation, the bracket can be easily folded on the cabinet.

    2. New structure design. Meet the needs of rental led, stadium perimeter and fixed installation. This multi-functional cabinets makes the new items easily and conveniently applied in different location and application.

    3. Rubber protector for top of cabinet. Use soft material for the player protection and can reduce the outside impact. It efficiently protect the player from injury.

    4. Aluminum alloy is used for the cabinet to reduce weight and achieve convenience.


    Parameters

    Brightnessnits6000
    Color temperaturedeg.k3200 ~ 9300
    Viewing angle - Horizontaldeg.160(+80/-80)
    Viewing angle - Verticaldeg.160(+80/-80)
    Cabinet weightkg50
    Cabinet widthmm960
    Cabinet heightmm960
    Cabinet depthmm150
    Cabinet areasq. m.0.92
    Cabinet material Cold Steel
    Aspect ratio 4:3
    Ingress protection (Front/Rear)IPIP65/IP54
    Operating temperature rangedeg. C- 20 to 50
    Operating humidity rangeHR10% to 90%
    Pixel type and configurationR/G/BSMD 3in1
    Pixel pitchmm10
    Pixel matrix per cabinet 96x96
    Pixels per cabinet 9216
    Lines per meter 100
    Pixels per sq. meter 10000
    LEDs per sq. meter 10000
    Recommended minimum viewing distancem10
    Colours 281trillion
    Gray scaleLevels65536 levels per colour
    Brightness controlLevels100
    Digital processingbit16
    Frame rateHertz60
    Display refresh rateHertz1920
    Input voltageVAC110/240
    Input power frequencyHertz50/60
    Input power (max/avg)Watts per sq.m960/330
    MTBFHours≥10000
    Lifetime (50%Brightness)Hours≥100000
    Module brightness uniformity <5%
    Blind spot rate <0.0001
    Earth leakage currentmA<2
    Red wavelengthnm623
    Green wavelengthnm525
    Blue wavelengthnm470
    Panel input format (with video processor) VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
    Data interconnection CAT6 cable/Fiber
    Operating system Windows(XP/Vista/7/8/10)
    Control distance Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

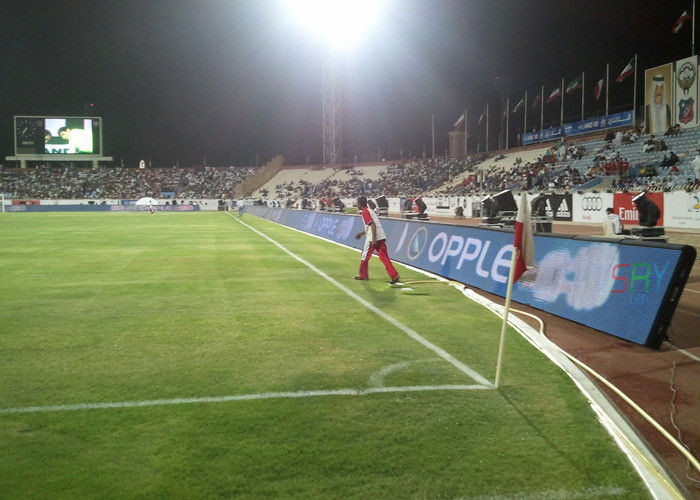

    Pictures:


    P10 Outdoor Stadium Perimeter Led Display Smd Ip65 6000 Nits With Uv Proof


    Quality P10 Outdoor Stadium Perimeter Led Display Smd Ip65 6000 Nits With Uv Proof for sale
