Indoor P3.91mm Stage Rental LED Display with 14kg Lightweight
Cabinet
Quick Details:
1, Pixel Pitch: 3.91mm, SMD.
2, Full colors: 281trillions.
3, Wide viewing angle: 160°/ 160°.
4, Contrast ratio: 3000:1
5, Standard cabinet size: 500x1000x80mm, light weight
6, High refresh: 1920Hz.
Application:

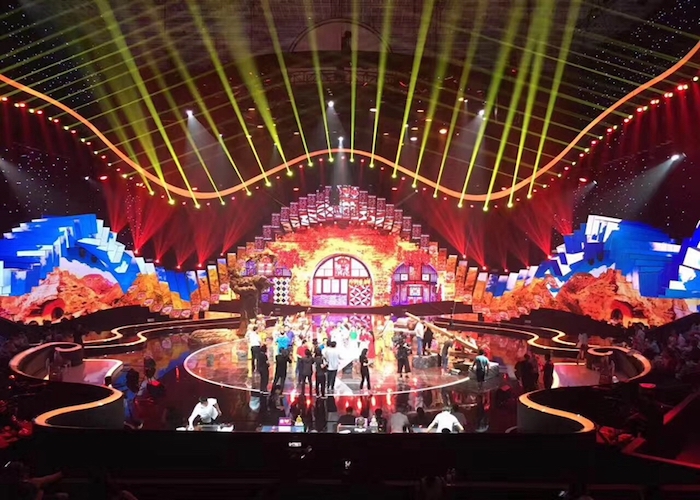

Indoor P3.91mm Stage Rental LED Displays are the most hotselling rental led display we make,
annual sales over 10,000sqm. It's often used for stage, events,
live broadcasting etc.
Features and Advantages:
1.Easy to install
2.Light weight and slim
3.Good heat dissipation
4.Power saving compared with common products
5.Using high refresh IC, better viewing effect
6.Larger viewing angle: Horizontal angle 140 degree/elevation angle
140 degree
7.The LED Chips have the advantages of large viewing angle, low
power consumption and good color uniformity.
8.Use the same level of red, green and blue led chips, which makes
excellent and uniform image display
Pictures
| Brightness | nits | 4200 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 14 |
| Cabinet width | mm | 500 |
| Cabinet height | mm | 1000 |
| Cabinet depth | mm | 80 |
| Cabinet area | sq. m. | 0.50 |
| Cabinet material | | Aluminum |
| Aspect ratio | | 1:2 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 3.906 |
| Pixel matrix per cabinet | | 128x256 |
| Pixels per cabinet | | 32768 |
| Lines per meter | | 256 |
| Pixels per sq. meter | | 65544 |
| LEDs per sq. meter | | 65544 |
| Recommended minimum viewing distance | m | 4 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 800/280 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
