500x1000 Stage Rental LED Display P4.81mm Outdoor IP65 Ingress Rate
Quick Details:
1, Pixel Pitch: 4.81mm, SMD
2, Size: 500x1000mm
3, Refresh rate:1920Hz
4, Contrast ratio: 3000:1
5, Weight: 14kg
6, IP65 Waterproof
Application:
Outdoor P4.81mm Stage Rental LED Displays is the most hot selling
product for stage of live shows, events and broadcasting in
theaters, cinemas, concert hall, bars and so on.
Features and Advantages:
(1) High brightness SMD LED is used for outdoor led display, keeps
the display visible even when facing the strong sunshine directly.
(2) With Anti-UV ray mask, the color of the mask would never change
even if under exposure of UV ray.
(3) Weatherproof design, completely outdoor use.
(4) Easy for assembling and connection.
(5) High color uniformity and clear image bring you a vivid audio
visual effect.
(6) The LED Chips that we use have the advantages of large viewing
angle, low power consumption and good color uniformity.
(7) Use the same level of red, green and blue led chips, which
makes excellent and uniform image display

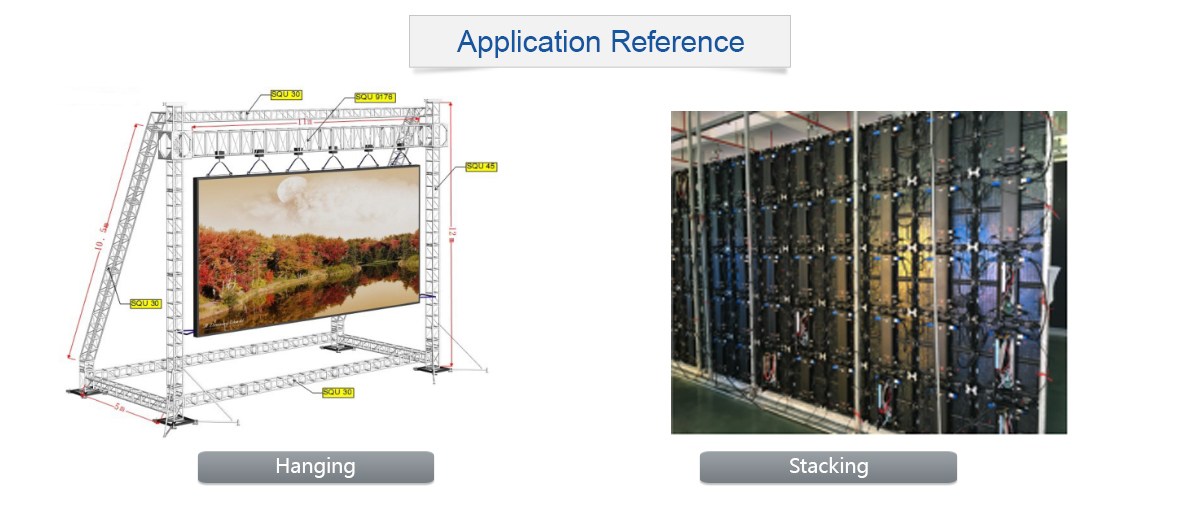

Pictures
| Brightness | nits | 4200 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 14 |
| Cabinet width | mm | 500 |
| Cabinet height | mm | 1000 |
| Cabinet depth | mm | 80 |
| Cabinet area | sq. m. | 0.50 |
| Cabinet material | | Aluminum |
| Aspect ratio | | 1:2 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 3.906 |
| Pixel matrix per cabinet | | 128x256 |
| Pixels per cabinet | | 32768 |
| Lines per meter | | 256 |
| Pixels per sq. meter | | 65544 |
| LEDs per sq. meter | | 65544 |
| Recommended minimum viewing distance | m | 4 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 800/280 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
