Outdoor P3.91mm Stage Rental LED Display 80mm Thin Cabinet
Quick Details:
1, Pixel Pitch: 3.91mm, SMD.
2, Full colors: 281trillions.
3, Wide viewing angle: 160°/ 160°.
4, Contrast ratio: 3000:1
5, Standard cabinet size: 500x1000x80mm, light weight
6, IP65 Waterproof, reliable for outdoor use.
Application:
Outdoor P3.91mm Stage Rental LED Displays are the most popular rental led display we
manufacture, annual sales over 10,000sqm. It's frequently used for
stage, events, live broadcasting etc.
Features and Advantages:
1 High brightness SMD LED is used for outdoor led display, keeps
the display visible even when facing the strong sunshine directly.
2 With Anti-UV ray mask, the color of the mask would never change
even if under exposure of UV ray.
3 Weatherproof design, IP65 rated.
4 Super easy for assembling and connection.
5 High color uniformity and clear image create a vivid audio visual
effect.
6 The LED Chips have the advantages of large viewing angle, low
power consumption and good color uniformity.
7 Use the same level of red, green and blue led chips, which makes
excellent and uniform image display

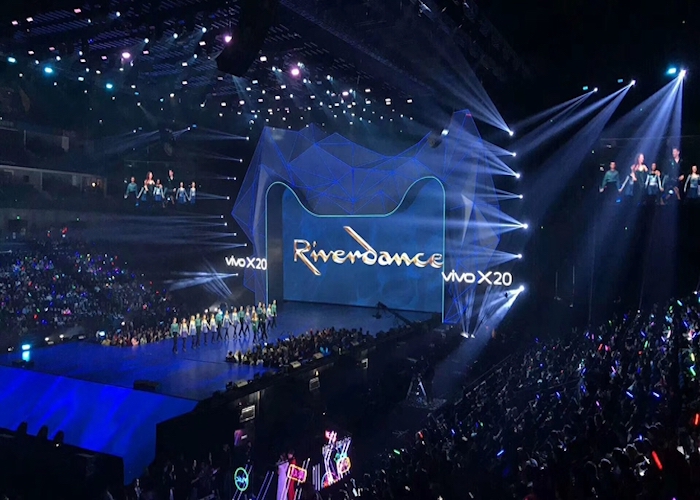

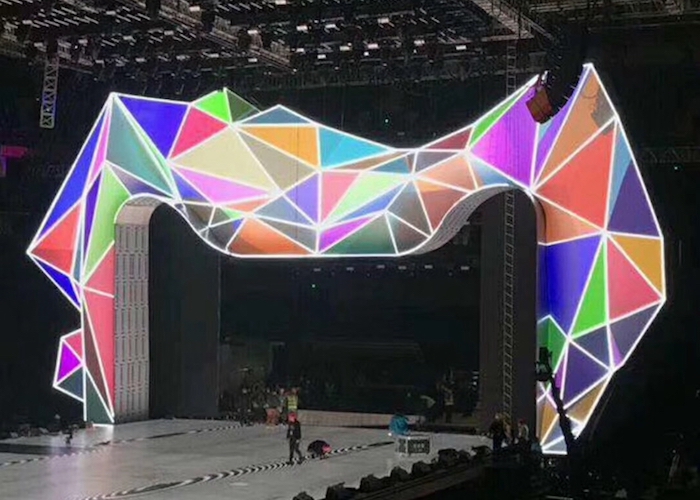

Pictures
| Brightness | nits | 4200 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 14 |
| Cabinet width | mm | 500 |
| Cabinet height | mm | 1000 |
| Cabinet depth | mm | 80 |
| Cabinet area | sq. m. | 0.50 |
| Cabinet material | | Aluminum |
| Aspect ratio | | 1:2 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 3.906 |
| Pixel matrix per cabinet | | 128x256 |
| Pixels per cabinet | | 32768 |
| Lines per meter | | 256 |
| Pixels per sq. meter | | 65544 |
| LEDs per sq. meter | | 65544 |
| Recommended minimum viewing distance | m | 4 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 800/280 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
