Outdoor P3.2mm Stage Background Led Video Wall 3840Hz High Refresh
Rate High End Stage Rental Events
Application:
Outdoor P3.2mm Stage Background Led Video Wall 3840Hz High Refresh
Rate are the most premium product for high end rental market,
unique design, great color performance plus stability, making it
the perfect choice for high end events.
Available in 2.6mm, 2.9mm and 3.2mm

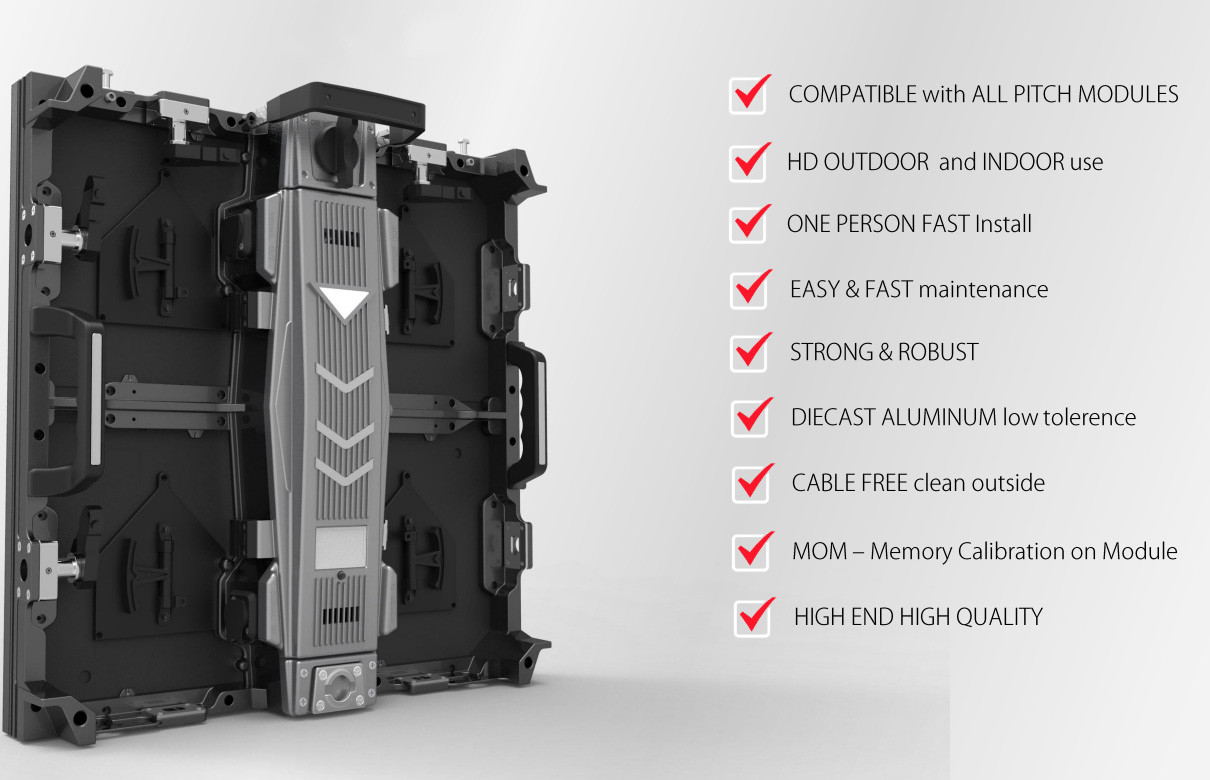

Features and Advantages:
1. Black Shell SMD with High Brightness
5000 nits high brightness create good visibility for any outdoor
and indoor events
2. Die Cast Aluminum Low Tolerence
Every Panel is manufactured with CNC auto-machines of high
precision so that to guarantee its seamlessness during assembly.
3. Quick Installation
Handle and fast lock design enable quick and convenient
installation and disassembly, one person can handle it all.
4. High Refresh Rate
3840Hz high refresh rate, no ghosting, no flicker, no moire, only
perfect image
5. Front Service
Front maintenance design, easy maintenance.
6. Stable and Reliable
Under the patent of inlaying SMD into PCB, the stability is better
than any other similar products in the market.
Pictures
| Brightness | nits | 4000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 9 |
| Cabinet width | mm | 500 |
| Cabinet height | mm | 500 |
| Cabinet depth | mm | 90 |
| Cabinet area | sq. m. | 0.25 |
| Cabinet material | | Aluminum |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 3.205 |
| Pixel matrix per cabinet | | 156x156 |
| Pixels per cabinet | | 24336 |
| Lines per meter | | 312 |
| Pixels per sq. meter | | 97351 |
| LEDs per sq. meter | | 97351 |
| Recommended minimum viewing distance | m | 3 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 940/320 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
