HD Indoor Stage Rental LED Display P3.91 Die-casting Aluminium
Cabinet
Quick Details:
1, Pixel Pitch: 3.91mm, SMD LEDs.
2, Full colors: 281trillions.
3, Wide viewing angle: 160°/ 160°.
4, Input Voltage: AC110V/220V, 50/60Hz.
5, Standard cabinet size: 500×500x80mm, 500x1000x80mm.
Description:
TBC Stage Rental LED Displays include outdoor rental led screen:
2.6mm, 2.976mm, 3.2mm, 3.91mm, 4.81mm, 5.9mm and indoor stage led
video wall: 3.91mm and 4.81mm. Within these pixels, 3.91mm and
4.81mm are the best-selling types.
Features and Advantages:
1, Die-casting aluminium, ultra lightweight and thin, only 8kg and
8cm, can be lifted with only one hand.
2, Fast assembling and easy installation with handle and fast lock
design.
3, Seamless connection, each cabinet flatness only 0.01mm.
4, High definition, high refresh rate 1,920Hz and 16bits gray
scale, give you more colorful video and image.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 1000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 140(+70/-70) |
| Viewing angle - Vertical | deg. | 140(+70/-70) |
| Cabinet weight | kg | 8 |
| Cabinet width | mm | 500 |
| Cabinet height | mm | 500 |
| Cabinet depth | mm | 80 |
| Cabinet area | sq. m. | 0.25 |
| Cabinet material | | Aluminum |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP40/IP20 |
| Operating temperature range | deg. C | 0 to 40 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 3.91 |
| Pixel matrix per cabinet | | 128x128 |
| Pixels per cabinet | | 16384 |
| Lines per meter | | 256 |
| Pixels per sq. meter | | 65536 |
| LEDs per sq. meter | | 65536 |
| Recommended minimum viewing distance | m | 4 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1440 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 600/210 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Application:

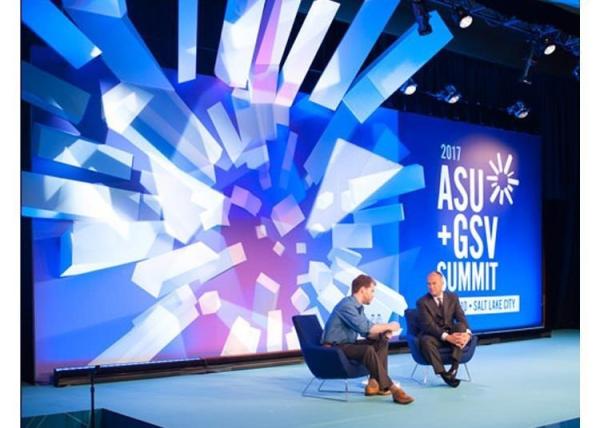

TBC Stage Rental LED Displays are usually used for stage background
of live shows, advertising and broadcasting in theater, opera
house, church, concert hall, bars and so on.
