500 X 500mm Stage Rental LED Display
Indoor Slim Die Casting Aluminum Cabinet 4.81mm Stage HD Led Video
Wall 500 X 500mm With Nation Star Gold Wire Led
Flicker Free 4.81mm Stage HD Led Video Wall 500 X 500mm Slim Die
Casting Aluminum Cabinet
Application:
Flicker Free 4.81mm Stage HD Led Video Wall 500 X 500mm Slim Die
Casting Aluminum Cabinet are the most welcomed indoor rental led
display, widely used for stage, events, live broadcasting etc.
Features and Advantages:
Easy installation and disassembly
Smart handle deisgn and fast lock design enable fast and convenient
installation and disassembly, one person can handle it all.
Front Magnetic maintenance
Light weight cabinet, 8kg per panel, easy to handle
Front service design, easy maintenance and service.
Concave and convex curves as you wish, no limit to your design
Patented high precision curving blocks support 0-10° concave curve
and 0 -5°
convex curve(customized).

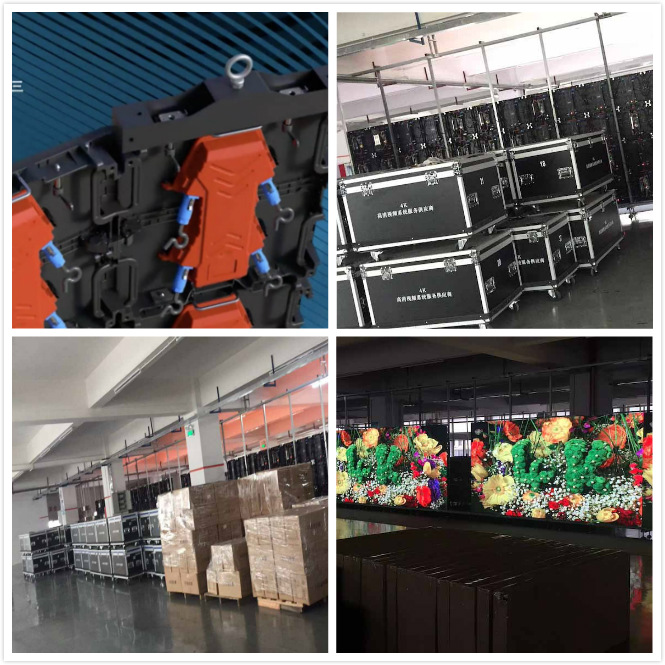

Pictures
| Brightness | nits | 1000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 11 |
| Cabinet width | mm | 500 |
| Cabinet height | mm | 1000 |
| Cabinet depth | mm | 80 |
| Cabinet area | sq. m. | 0.50 |
| Cabinet material | | Aluminum |
| Aspect ratio | | 1:2 |
| Ingress protection (Front/Rear) | IP | IP40/IP20 |
| Operating temperature range | deg. C | 0 to 40 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 4.808 |
| Pixel matrix per cabinet | | 104x208 |
| Pixels per cabinet | | 21321 |
| Lines per meter | | 207 |
| Pixels per sq. meter | | 43258 |
| LEDs per sq. meter | | 43258 |
| Recommended minimum viewing distance | m | 5 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1440 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 710/240 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
