Outdoor Pixel 5.95mm Stage Rental Led Display High Brightness SMD
Full Color
Quick Details:
1, Pixel Pitch: 5.95mm.
2, RGB Full colors: 281trillions.
3, SMD LEDs, Wide viewing angle: 160° in horizontal, and 160° in vertical.
4, Big cabinet size: 500x1000x80mm.
5, IP65, good waterproof and dustproof.
Description:
TBC LED Displays adopt physical and virtual pixel technology which makes the picture
more clear and vivid, no flicker and blind dots. The screen is
manufactured in a waterproof and dustproof design so it can work
very well in rain and sunshine. It can be assembled and
disassembled very easy, and it is an ideal product for any kind
advertisements.
Features:
1, Outddoor die-casting aluminium panel, super-light weight and ultra-thin, save labor cost.
2, With fast lock system, easy to install and dismantle, quick
assemble within 8seconds.
3, High refresh rate 3840Hz, ensure the picture wrinkle-less, line-less and stable.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 5000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 14 |
| Cabinet width | mm | 500 |
| Cabinet height | mm | 1000 |
| Cabinet depth | mm | 80 |
| Cabinet area | sq. m. | 0.5 |
| Cabinet material | | Aluminum |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 5.95 |
| Pixel matrix per cabinet | | 84x168 |
| Pixels per cabinet | | 14112 |
| Lines per meter | | 168 |
| Pixels per sq. meter | | 28224 |
| LEDs per sq. meter | | 28224 |
| Recommended minimum viewing distance | m | 6 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 800/280 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Application:

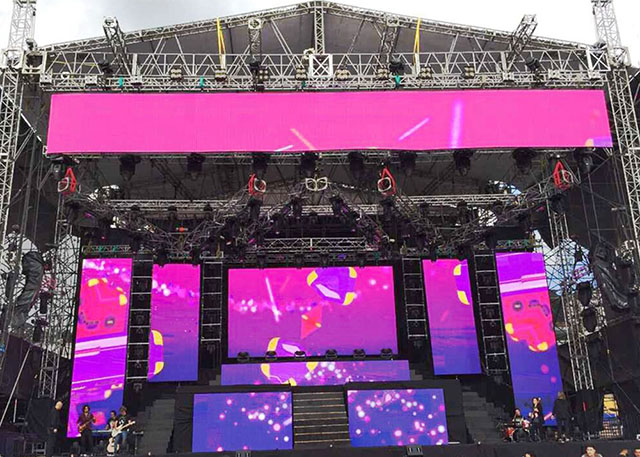

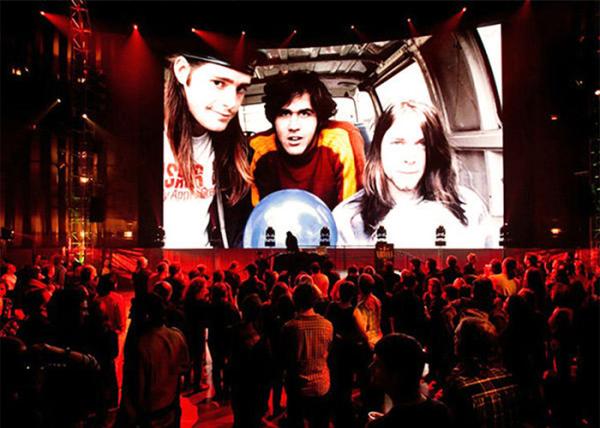

TBC Stage Rental LED Displays are usually used for stage background
of live shows, advertising and broadcasting in operas, theater,
church, concert hall, bars and so on.
