Outdoor P5.95 Rental LED Display High Refresh 3840Hz No Strips for
Stage Background
Quick Details:
1, Pixel Pitch: 5.95mm.
2, SMD1921 LEDs, Wide viewing angle: 160°/ 160°.
3, Standard cabinet size: 500x1000x80mm.
4, IP65, High brightness, perfect outdoor performance.
Description:
TBC Stage Rental LED Displays include outdoor rental led screen:
2.6mm, 2.976mm, 3.2mm, 3.91mm, 4.81mm, 5.9mm and indoor stage led
video wall: 3.91mm and 4.81mm. All with high definition, high
refresh rate, vivid video performance.
Features:
1, Ultra-thin and light weight, easy installation, lower labor cost.
2, Die-casting aluminium structure, high accuracy connection,
error<0.1mm.
3, High refresh rate 3840Hz, no strips for camera shooting.
4, Flexible installation, can be stacked on floor or hung on truss.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 5000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 14 |
| Cabinet width | mm | 500 |
| Cabinet height | mm | 1000 |
| Cabinet depth | mm | 80 |
| Cabinet area | sq. m. | 0.5 |
| Cabinet material | | Aluminum |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 5.95 |
| Pixel matrix per cabinet | | 84x168 |
| Pixels per cabinet | | 14112 |
| Lines per meter | | 168 |
| Pixels per sq. meter | | 28224 |
| LEDs per sq. meter | | 28224 |
| Recommended minimum viewing distance | m | 6 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 800/280 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Application:

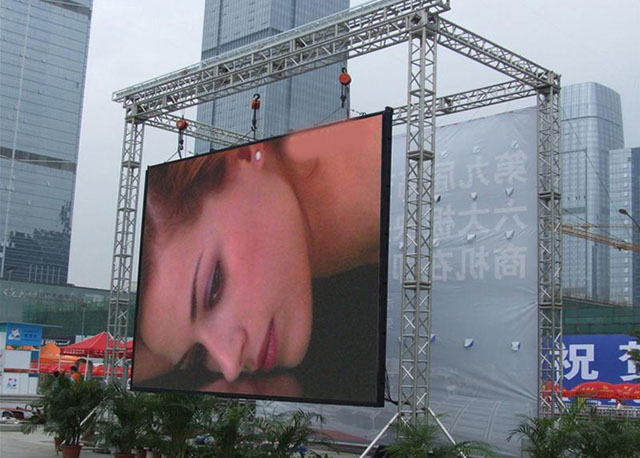

TBC Outdoor Rental LED screens are mostly used for stages, shows
and events, conference, concerts, fashion shows, broadcast, theme
park, exhibition and other temporary activities.
