16bits Stage Led Screen Nation Star SMD2020 P3.91 500x500mm 8KG
Light Weight 8KG Die Casting Aluminum Cabinet
Application:
16bits Stage Led Screen Nation Star SMD2020 P3.91 500x500mm 8KG
Light Weight 8KG Die Casting Aluminum Cabinet are the most
welcomed indoor rental led display, widely used for stage, events,
live broadcasting etc.
Features and Advantages:
HD 4K Video Display Excellent Visual Effects
Ultra-high dynamic contrast and high-quality display,
ultra-high-definition perfect picture quality, bring you
unprecedented visual enjoyment.
easily attract attention, greatly enhance the value of advertising.

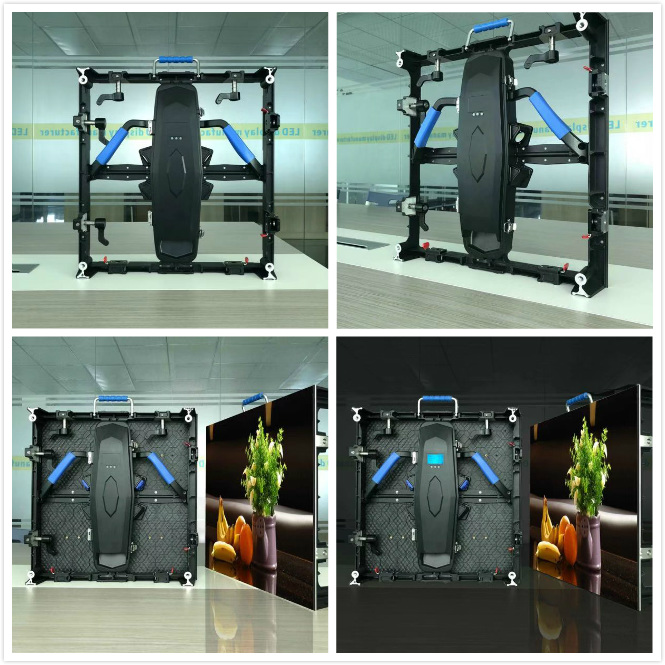

CNC Precision Cutting Cabinet Structural Design
With the High-precision cast aluminum material, perfect splicing
without gaps. Fast locking makes assembly and disassembly extremely
easy.
High-quality aviation plugs ensure reliability.
Magnetic Quick Service Module For Quick Maintenance
The aluminum cabinet’s rear control system used a snap-in design,
maintenance and installation is more efficient and convenient.
Special and Swift Design, Completed Cabinet Connection In One
Second
Unique design, the upper and lower Cabinet connection can be
completed in only one second, use the method to watch the video
below.
Easily Adjusted Angle Lock
The Cabinet can be arc-shaped connected, with its own angle
adjustment device, can achieve positive and negative 10 degrees of
adjustment to meet the different arc connection requirements.
Parameters:
| Parameter | Value | Unit |
| Brightness | 1000 | nits |
| Viewing angle - Horizontal | 160(+80/-80) | deg. |
| Viewing angle - Vertical | 160(+80/-80) | deg. |
| Cabinet weight | 11 | kg |
| Cabinet width | 500 | mm |
| Cabinet height | 1000 | mm |
| Cabinet depth | 80 | mm |
| Cabinet material | Aluminum | |
| Ingress protection (Front/Rear) | IP40/IP20 | IP |
| Operating temperature range | 0 to 40 | deg. C |
| Operating humidity range | 10％ to 90％ | HR |
| Pixel type and configuration | SMD 3in1 | R/G/B |
| Pixel pitch | 3.906 | mm |
| Pixel matrix per cabinet | 128x256 | |
| Pixels per cabinet | 32768 | |
| Pixels per sq. meter | 65544 | |
| Colours | 281trillion | |
| Digital processing | 16 | bit |
| Display refresh rate | 1440 | Hertz |
| Input voltage | 110/240 | VAC |
| Input power (max/avg) | 600/210 | Watts per sq.m |
| Lifetime (50%Brightness) | ≥100000 | Hours |
| Data interconnection | CAT6 cable/Fiber | |
| Operating system | Windows(XP/Vista/7/8/10) | |
Pictures:
