High Brightness P3.91-7.82mm Outdoor LED Mesh Display 3840 High
Refresh Rate
Application Of Outdoor Advertising LED Mesh Display
LED transparent screen has highly permeability, 50% to 90% of the
permeability, lighter weight, small space, ensure the glass curtain
wall of the original transparent lighting function.
Nice installation, lower cost, no need any steel structure,
directly fixed on the glass curtain wall, the background is
transparent, the broadcast advertising picture gives people the
feeling of suspension on the glass curtain wall
The most important features of using transparent LED display are:
high light transmittance, good skill effect, good heat dissipation
effect, lighter weight and easy maintenance.

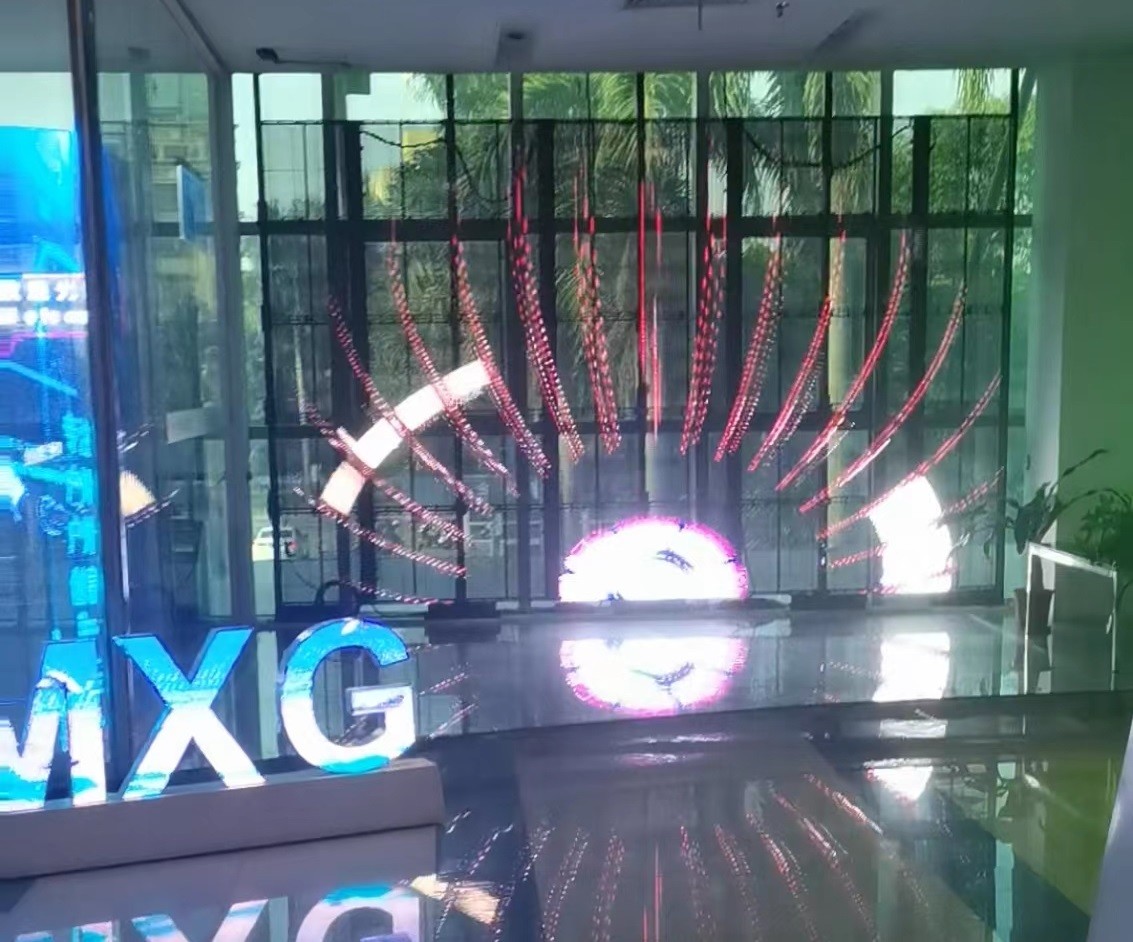

LED transparent screen is now mainly used in glass curtain wall,
windows, commercial display, stage art, TV, exhibition, jewelry
store, canopy and other fields.
In fact, transparent LED display is not completely transparent,
mainly through technology to improve the permeability, so that the
display more close to transparency.
Quick detail Of Outdoor Advertising LED Mesh
1, Pixel Pitch: 3.91-7.82mm, 15.625mm, 31.25mm
2, DIP346 LED, high brightness and durable for outdoor use
3, Greyscale: 16bits
4, Cabinet size: 500x1000mm Die Cast Aluminum
5, Recommended Viewing Distance: 10-16m.
6, Cabinet Material: Die Cast Aluminum Cabinet, 21kg Weight
7, Refresh Rate: 3840Hz
8, Ingress Rate: IP68 Outdoor Standard Connectors
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:>7000-8500cd/sqm
11, Curve Installation: Yes, Concave and Convex Available
Specification Of Outdoor Advertising LED Mesh Screen
Product Unit Parameters Parameters |
| Mode | EV3.91-7.82 | EV15 | EV31.25 |
| LEDs | 1R1G1B | 1R1G1B | 1R1G1B |
| LED type | SMD1921 | DIP346 | DIP346 |
| Pixel pitch | 3.91mm-7.82mm | 15.625-31.25mm | 31.25-31.25mm |
| Unit size | W1000×H1000mm | W500×H1000mm | W500×H1000mm |
| Resolution | 65536dots/㎡ | 2048dots/㎡ | 1024dots/㎡ |
| Unit direction | Vertical Horizontal | Vertical Horizontal | Vertical Horizontal |
| Transparency rate | 55% | 75% | 85% |
| Brightness | ≥4500nit | ≥7000nit | ≥3500nit |
| Weight | 22KG/㎡ | 21KG/㎡ | 19KG/㎡ |
| Max consumption | 480W/㎡ | 300W/㎡ | 280W/㎡ |
| Adv consumption | 160W/㎡ | 130W/㎡ | 125W/㎡ |
| Viewing angle | H120°/V120° | H120°/V120° | H120°/V120° |
| Protection level | IP68 | IP68 | IP68 |
| Tube structure | 1 row, 4 columns. | 1 row, 2 columns | 1 row, 2 columns |
| Tube width | 47mm | 8.5mm | 8.5mm |
| Thickness | 110mm | 110mm | 110mm |
| Install depth | 150mm | 150mm | 150mm |
Heat dissipation
| Convective heat dissipation | Convective heat dissipation | Convective heat dissipation |
| Wind dissipaion | Level 12 | Level 12 | Level 12 |
| Power supply | Power supply with PFC | Power supply with PFC | Power supply with PFC |
| Installation | Fast install | Fast install | Fast install |
| Fire safety | 10S/unit | 10S/unit | 10S/unit |
| Fire resistance | Full VO grade | Full VO grade | Full VO grade |
| Service | Front,Back | Front,Back | Front,Back |
| Control mode | steady state | steady state | steady state |
| Color temperature | 3200-9300K | 3200-9300K | 3200-9300K |
| Refresh rate | 60Hz | 60Hz | 60Hz |
| Working temperature | -40℃ to 70℃ | -40℃ to 70℃ | -40℃ to 70℃ |
| Storage temperature | -55℃ to 120℃ | -55℃ to 120℃ | -55℃ to 120℃ |
| Life time | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Input voltage | AC110-220V | AC110-220V | AC110-220V |
| Grey grade | 16bit | 16bit | 16bit |
| Seismic capability | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z
axes |
1, Energy saving and environmental protection, no fan and air
conditioning heat dissipation, energy saving more than 40% than the
traditional LED display.
2, high transparency rate, with 70%-95% permeability rate, to
ensure the glass curtain wall of the original transparent lighting
function.
3, LED transparent screen can be standardized and customized,
effectively reduce the cost, customization can make the LED
transparent screen and building to achieve a high degree of
harmony.
4, thin and fast installation: the traditional LED display is bulky
and high consumption, which is not conducive to maintenance. It
needs to consume a lot of transportation and installation labor
costs in installation.
5, LED transparent screen is more creative: for product sales and
advertising to make interesting and changeable equipment support,
so that advertising creativity directly hit the actual products, as
long as there is a glass curtain wall can be applied.
Feature Of Indoor Rental LED Video Wall
Thin and light case, fanless design, no noise, fast installation
and maintenance, high heat dissipation.
LED Mesh screen is ultra-light and ultra-thin
The box is only 6.4Kg/㎡, which is 75% less than the weight of
traditional outdoor LED screen.
Steel structure weighs only 5kg/㎡, 80% less than the weight of
traditional outdoor LED display steel structure.

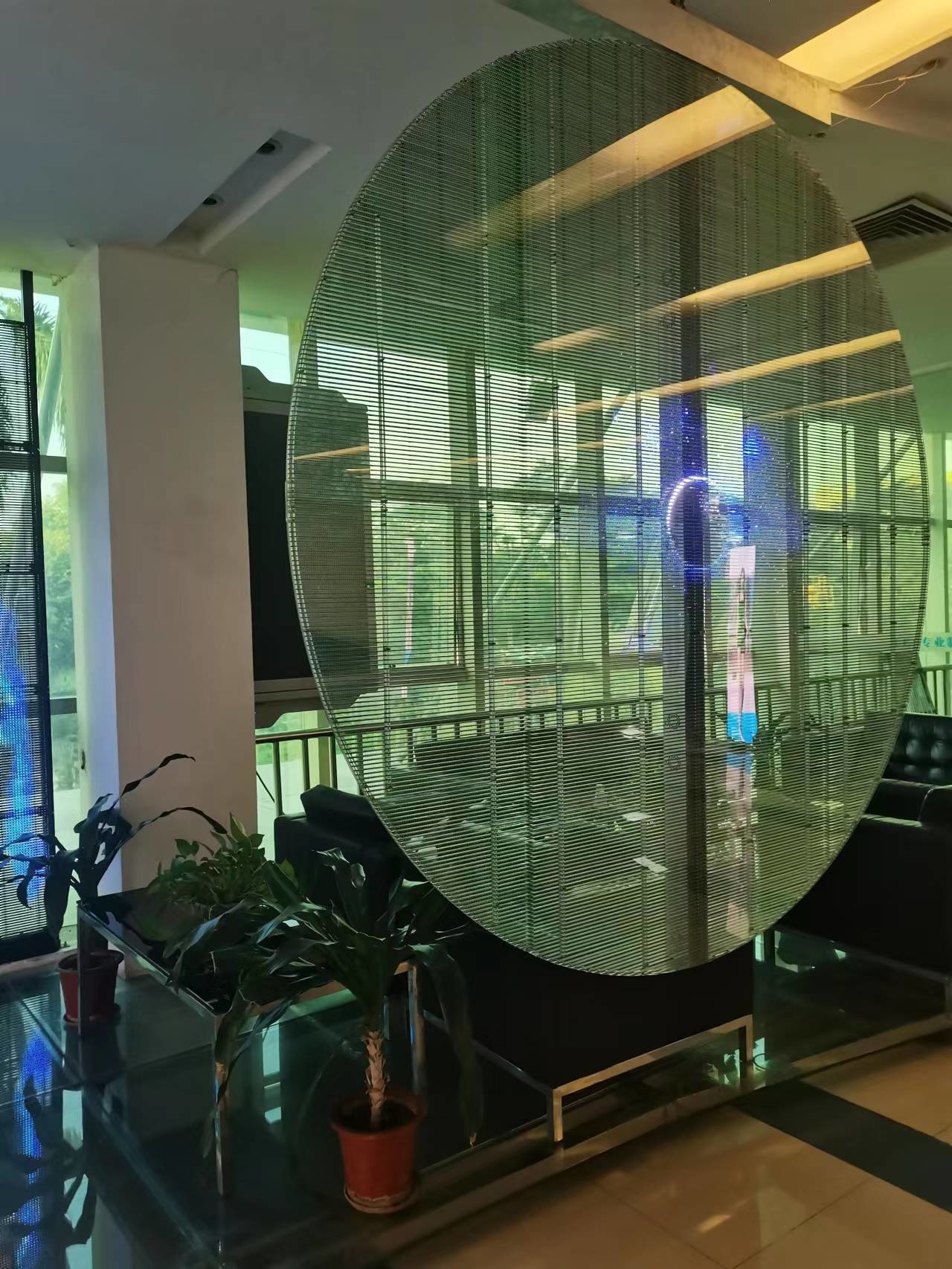

LED Mesh screen high light transmission rate
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the service work?
A: We have experienced Engineers who worked in the industry for 15
years and able to communicate with fluent English. They can
remotely provide technical support via video conference or
teamviewer or go to the site for the guidance.
Q2. What installation options do we have?
A: Wall mounting with metal structures.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
