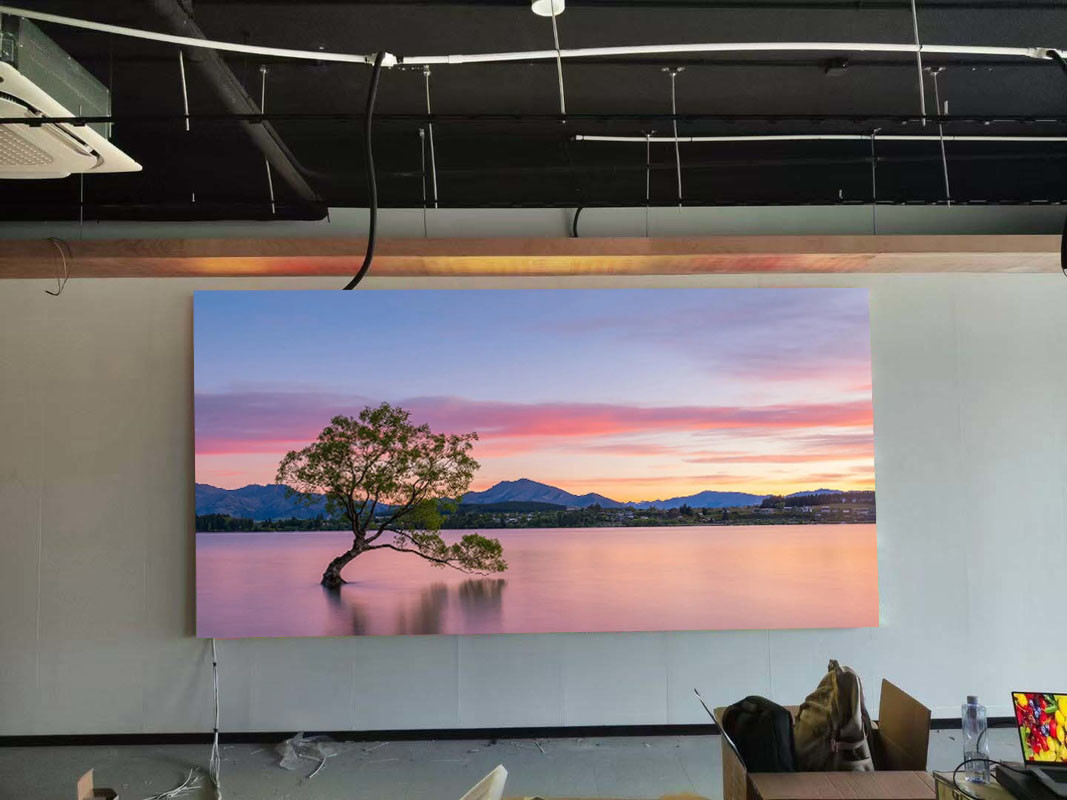

Refresh Rate 3840Hz Indoor LED Video Wall Display Wall Mount
Installation
High Refresh Rate Indoor LED Display Steel Cabinet Wall Mount
Installation
Indoor P3mm 960x960mm Steel Cabinet Wall Mount Installation with
3840Hz Refresh Rate
Quick detail Of Indoor Fixed LED Screen
1, Pixel Pitch: 2.5mm, 3mm, 4mm
2, Nation Star or Kinglight SMD LEDs, high contrast and high
reliability
3, Greyscale: 16bits
4, Cabinet size: 768x768mm or 960x960mm Steel Wall Mount Cabinet
5, Service type: Magnetic front service
6, PSU: MEANWELL or G energy brand
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 indoor use and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>800-1000cd/sqm
Specification Of Indoor Fixed LED Screen
| E 2.5 | E 3 | E 4 | E4 |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 4mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 160,000 pixels/m2 | 111,111 pixels/m2 | 62,500 pixels/m2 | 62,500 pixels/m2 |
| Module Dimensions(W x H) (mm) | 320 x 160 | 192 x 192 | 256 x 128 | 320X160 |
| Panel Dimensions (mm) | 960 x 960 x 100 640 x 480 x 100 | 960 x 960 x 100
| 1024 x 1024 x 100
| 960x960x100 |
| Module Resolution | 168 x 84 | 64 x 64 | 64 x 32 | 80x40 |
| Cabinet Resolution | 384 x 384 | 320 x 320 | 256 x 256 | 240x240 |
| Panel Material | Steel | Steel | Steel | Steel |
| Weight per Cabinet | 26kg | 26kg | 26kg | 26kg |
| Digital Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000:1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel | 650 W /panel |
| Brightness | >8,00 nits | >8,00 nits | >8,00 nits | >7,00 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan | 1/20 Scan |
Description Of Indoor Fixed LED Screen
TBC LED E Series indoor fixed led screen include P2.5mm, 3mm and
P4mm Features are:
1, Steel wall mount cabinet, can be installed to the wall directly
2, High refresh rate 3840Hz adjustable
3, Magnetic modules, Front and Rear Maintenance via Magnets
4, NOVA Star or Colorlight system free to choose
5, Easy to use and installation
Feature Of Indoor Fixed LED Video Wall
1. Golden ratio 16:9
Minimum spacing box resolution 640 * 360
2. Ultra-thin and ultra-light box, more efficient installation and
maintenance
As thin as 44mm, weight only 20kg/m2
3. Front maintenance, space-saving
Can be installed against the wall, no need to set aside maintenance
channels
4. Module comes with calibration data storage, automatically import
data when replaced
5. Covering the whole scene of commercial display and wider
application
The emergence of led display is a reflection of the current
development of science and technology, and now indoor can also see
more and more led display, led display appearance and universal
application has also changed everyone's daily life to a certain
extent, so why do everyone choose led display? What are the
advantages of led display?
What are the advantages of indoor installation of led display?
led display in the digital age today has become a reflection of
business, of course, but also for the world to add a lot of neon
luster. led display has entered a new stage of development, not
only can display products in various directions, but also through
the display of details to more perfectly show the difference of the
product.
The installation of led display in the room can also improve a
certain level in the store, and we can also play the role of a
bulletin board. Through the display screen, you can also play
welcome words, festival celebrations, etc., which can render a
certain atmosphere, which is very important for the importance of
business visitors.
The advantage of indoor led display is that the product can
automatically adjust the brightness of the system, which can adjust
the brightness according to different time, place and environment,
and can play the brightness of the led display less than 60% of the
ambient temperature. led display can also avoid light pollution to
a certain extent, there is a multi-level gray correction
technology, allowing consumers to enjoy a softer and clearer
picture.
What are the uses of indoor led display?
Exchange, financial information display: led display in this field
accounted for more than 50% of the domestic demand for led display
in previous years, and there is still a large demand.
Airport Flight dynamic information Display: the requirements for
residence display in civil aviation airport construction are very
clear, and the led display is the product of choice for flight
residence display system FIDS (Flight information Display system).
Port and station passenger guidance information display:
information system and broadcast system with LED display as the
main body, train arrival and departure disclosure system, train
arrival and departure disclosure system, ticketing information
system together constitute the automation system of passenger
transport hub, which has become an important part of the
technological development and transformation of domestic railway
stations and ports.
In addition to these uses, indoor led displays are also widely used
in stage performances, exhibitions and other places, playing its
role. If you want to buy a desirable led display, you also need to
find a reliable company like TBCLED, from research and development,
production to installation and other after-sales service, our
company guarantee the quality of products and service quality.
Advantages Of Indoor Fixed LED Video Wall
Uniform color, natural picture:
Broadcast-grade color gamut, color temperature and brightness
intelligent adjustable, uniform color, high contrast, beautiful
natural picture; anti-UV, anti-deformation module kit, to protect
the screen body flat and not deformed.
Wide viewing angle:
Up, down, left and right 160 degree viewing angle, broadcast-level
color gamut, color temperature and brightness intelligent
adjustable, more suitable for long time viewing. Box for the
command and control center display screen features planned into
16:9 ratio, easy to achieve 4:3 or 16:9 ratio of the screen.
Energy saving ≥ 36%:
Using the industry's top low-power ultra-bright LED lights, energy
saving ≥ 30%, with industrial-grade high-power power switch core
patented technology, the overall energy saving ≥ 36%, energy saving
and environmental protection.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
