Full Color P10 Outdoor LED Billboard High Definition Digital Sign

Quick Details:

1, Pixel Pitch: 10mm.

2, Full colors: 281trillions.

3, SMD, Wide viewing angle: 160°/ 160°.

4, Digital process: 16bits.

5, Standard cabinet size: 960×960x150mm, weight: 53kg.

6, Recommended minimum viewing distance: 10m.

Description:

TBC Outdoor LED Billboards include permanent installation outdoor digital led display, the pixel various from 4mm, 5mm, 6mm, 6.77mm, 10mm, 12mm, 16mm.

Features and Advantages:
1, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 160° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and assemble job.

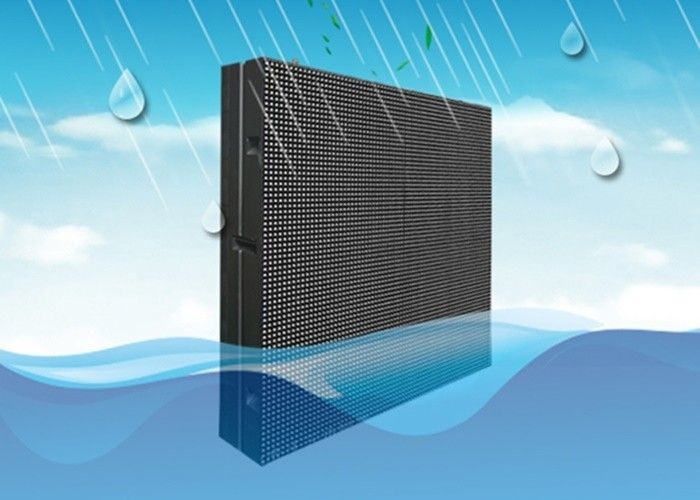

4, IP65 waterproof and dust resistance, durable for any weather condition.
5, Meanwell brand power supply, saving energy and high efficiency.

6, High refresh rate 2,000Hz, high contrast ratio 4,000:1, vivid color.

Specifications:

Parameter			Unit	Value
Brightness			nits	6000
Color temperature			deg.k	3200 ~ 9300
Viewing angle - Horizontal			deg.	160(+80/-80)
Viewing angle - Vertical			deg.	160(+80/-80)
Cabinet weight			kg	53
Cabinet width			mm	960
Cabinet height			mm	960
Cabinet depth			mm	150
Cabinet area			sq. m.	0.92
Cabinet material				Cold Steel
Aspect ratio				1:1
Ingress protection (Front/Rear)			IP	IP65/IP54
Operating temperature range			deg. C	- 20 to 50
Operating humidity range			HR	10％ to 90％
Pixel type and configuration			R/G/B	SMD 3in1
Pixel pitch			mm	10
Pixel matrix per cabinet				96x96
Pixels per cabinet				9216
Lines per meter				100
Pixels per sq. meter				10000
LEDs per sq. meter				10000
Recommended minimum viewing distance			m	10
Colours				281trillion
Gray scale			Levels	65536 levels per colour
Brightness control			Levels	100
Digital processing			bit	16
Frame rate			Hertz	60
Display refresh rate			Hertz	1920
Input voltage			VAC	110/240
Input power frequency			Hertz	50/60
Input power (max/avg)			Watts per sq.m	1000/350
MTBF			Hours	≥10000
Lifetime (50%Brightness)			Hours	≥100000
Module brightness uniformity				＜5％
Blind spot rate				＜0.0001
Earth leakage current			mA	＜2
Red wavelength			nm	623
Green wavelength			nm	525
Blue wavelength			nm	470
Panel input format (with video processor)				VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection				CAT6 cable/Fiber
Operating system				Windows(XP/Vista/7/8/10)
Control distance				Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

Application:

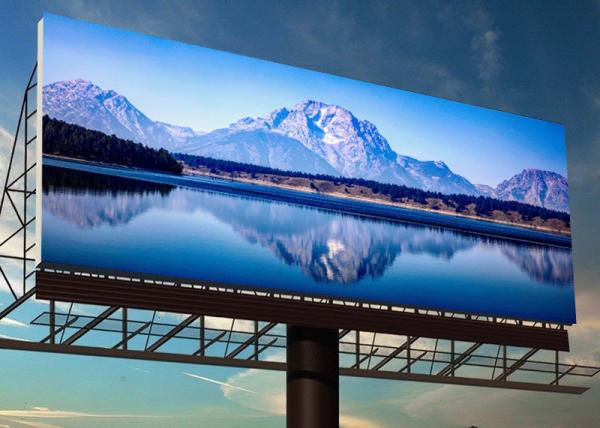

TBC fixed installation outdoor led screens are widely used for commercial advertising or media broadcasting in airport, station, pole, square, stadium, public places and so on.

     Founded in 2008, Topbright Creation Limited is one of the leading LED manufacturer in China. We are able to provide huge range of LED display products and services to customers from advertising and entertainment business industries all over the world. With registered capital of 10 million CNY and nearly 300 employees, we are equipped with full series of automatic production line, including advanced manufacturing equipments and perfect testing devices, which guarantee a monthly capacity of 5000 square meters LED display.

     Our R&D team have more than 10 years experience in LED industry. They are the base support to our new products development and customized products according to customers’ requests. In order to design and develop higher quality products, our R&D team always tries best to meet the Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been listed by CE, ROHS, FCC, EMC standards.

     With perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, TBC LED has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 100 countries and regions all over the world.

     TBC philosophy is to make effective and affordable LED products for customers, we are like Toyota of LED industry: economic, reliable and effective.
