Indoor P2.5mm 320x160mm Front Magnetic Maintenance Flexible LED Module 2880Hz

Indoor LED display screens are used in indoor environments, with moderate brightness, large viewing angle, close color mixing distance, light weight, and high density, making them suitable for close viewing

1. The area scalability makes it difficult to achieve seamless splicing due to the large LCD area. LED display screens can be freely extended and achieve seamless splicing.

2. The luminous flux of LCD plasma screens decays rapidly, and usually needs to be replaced after running for about a year and a half. However, under the same operating conditions, LED screens have no problems for at least five years.

3. LED screen scrubbers can use interactive technology to enhance the interaction between the screen scrubber as an advertising medium and the advertising audience, such as customizing touch screens and implementing cloud technology playback management.

4. In terms of display effect, LED display screens have higher brightness, wider viewing angles, and better color reproduction ability than LCD screens. LED screen scanners are generally used in airports, shopping malls, hotels, high-speed trains, subways, cinemas, exhibitions, office buildings, etc. The target customers have strong consumption ability and huge advertising value.

performance:

1) Strong luminous brightness, the display content is clear and visible when sunlight is directly shining on the screen surface within the visible distance. The super grayscale control has a 1024-4096 level grayscale control, with a display color of 16.7M or more, clear and realistic colors, and strong three-dimensional sense

2) Static scanning technology, using static latch scanning method, high-power driving, fully ensuring luminous brightness

3) Automatic brightness adjustment has an automatic brightness adjustment function, which can achieve the best playback effect in different brightness environments

4) Fully adopting imported large-scale integrated circuits greatly improves reliability and facilitates debugging and maintenance

5) Advanced digital video processing, distributed scanning technology, BSV LCD splicing technology for high-definition display, modular design/constant current static driving, automatic brightness adjustment, ultra-high brightness pure color pixels, clear image, no shake and ghosting, and no distortion. Video, animation, charts, text, images and other various information display, networked display, remote control

The above is a brief introduction to what LED display screens are. LED display screens are widely used in our daily lives, not only to decorate storefronts, but also to better promote products.

Quick detail Of Indoor Flexible LED Screen

1, Pixel Pitch: 1.86mm, 2mm, 2.5mm, 3mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 140°/ 140°.
3, Greyscale: 16bits with NOVA Star MRV328
4, Cabinet size: Customized according to actual application
5, Recommended Viewing Distance: 1-4m.

6, Cabinet Material: Aluminum Cabinet or mount to the steel structure directly

7, Refresh Rate: 1920-3840Hz

8, Ingress Rate: IP43 Indoor

9,Quality Certificate:CE, RoHS,FCC, ETL

10,Brightness:500-800cd/sqm

11, Curve Installation: Yes, any kind of curve installation

Specification Of Indoor Soft LED Screen

Description Of Indoor Soft LED Display

1.1 Scope of application This specification only applies to the 320mm X 160mm modules in the XR series. The dot spacing includes 1.86mm, 2mm, 2.5mm, 3mm.

1.2 Main features:

--Module standardized size design 320mm X 160mm, low current, low heat, high contrast ratio above 5000:1, refresh 1920-3840 Hz, 14-18 bit gray scale, no delay and no smear in the image;

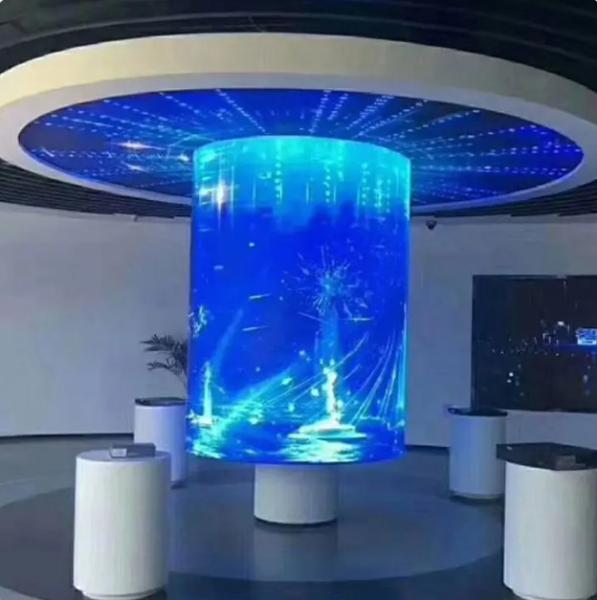

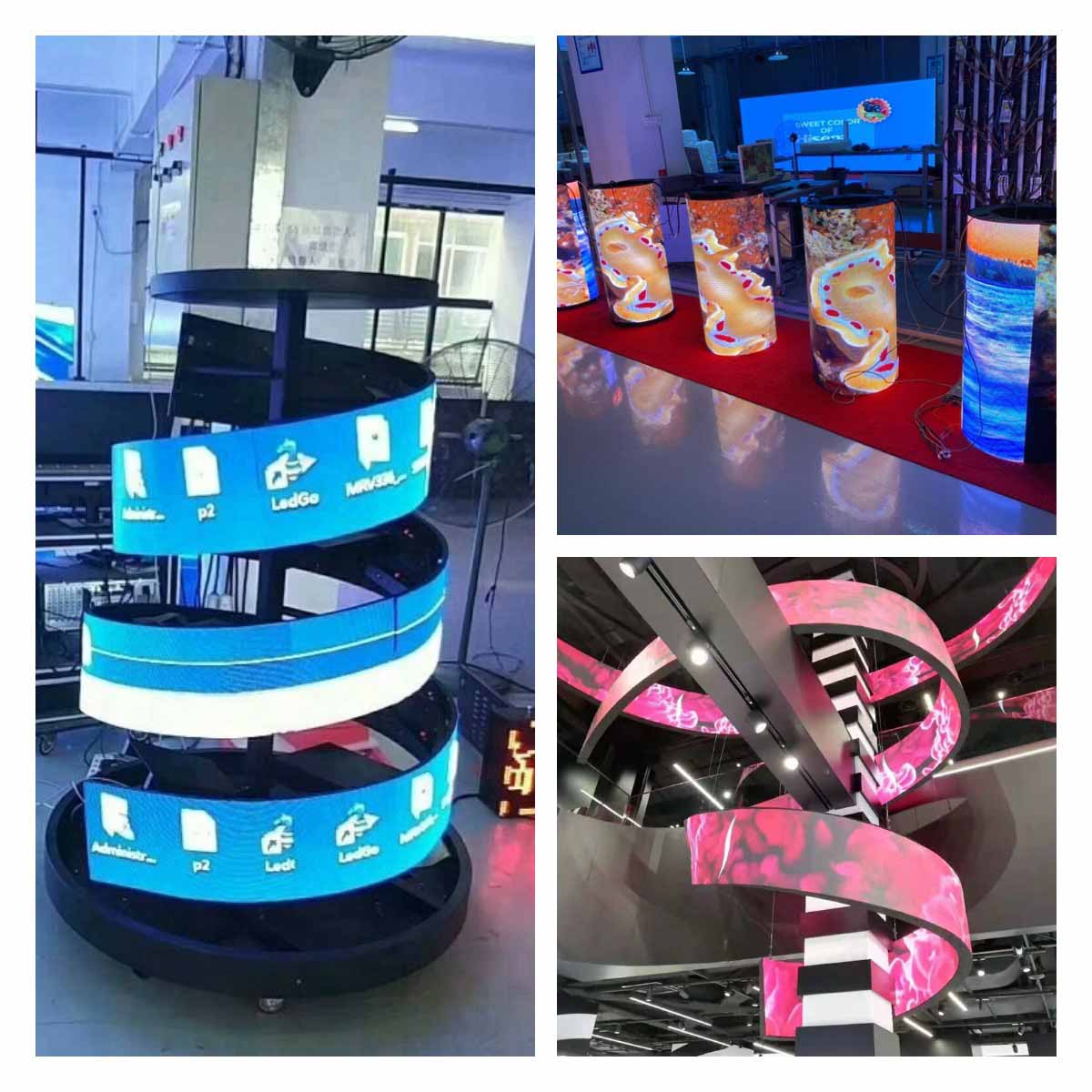

--The viewing angle is up to 160 °. XR soft module series is suitable for cylindrical screen, spiral screen, wave screen, ribbon screen and other artistic models. Application scenarios: planning museum, science and technology museum, urban planning museum, art gallery, museum, creative center, etc;

--The box structure adopts high-strength sheet metal sandblasting iron box with unique sectional splicing process, which effectively reduces the splicing gap of the screen body;

--The module is installed by strong magnetic adsorption, which can be adjusted slightly, and the flatness of the screen body is good. Power box front maintenance design, special scenarios, can achieve front installation, with specific tools to meet the front maintenance;

--The PCB board is made of flexible soft board, and the bottom shell is made of superior silica gel material;

Module thickness is only 8.6mm, ultra-thin design, small footprint;

Our Services

1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

FAQ

Q1. How does the semi auto corner protector work?

A: Gently push the button, the corner protector will release and cover the corner area.

Q2. What installation options do we have?

A: Either stacking on ground or haning is supported.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping

     Founded in 2008, Topbright Creation Limited is one of the leading LED manufacturer in China. We are able to provide huge range of LED display products and services to customers from advertising and entertainment business industries all over the world. With registered capital of 10 million CNY and nearly 300 employees, we are equipped with full series of automatic production line, including advanced manufacturing equipments and perfect testing devices, which guarantee a monthly capacity of 5000 square meters LED display.

     Our R&D team have more than 10 years experience in LED industry. They are the base support to our new products development and customized products according to customers’ requests. In order to design and develop higher quality products, our R&D team always tries best to meet the Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been listed by CE, ROHS, FCC, EMC standards.

     With perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, TBC LED has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 100 countries and regions all over the world.

     TBC philosophy is to make effective and affordable LED products for customers, we are like Toyota of LED industry: economic, reliable and effective.
