7000nits Outdoor LED Billboard
7000nits Outdoor Fixed LED Billboard With 3840Hz Refresh Rate
Outdoor P10mm 960x960mm Aluminum Cabinet High Brightness 7000nits
With 3840Hz Refresh Rate
Quick detail Of Outdoor Rental LED Screen
1, Pixel Pitch: 6.67mm, 8mm, 10mm
2, Waterproof Nation Star SMD LEDs, high brightness and high
reliability
3, Greyscale: 14bits with NOVA A5S
4, Cabinet size: 960x960mm and 1440x960mm Aluminum Cabinet
5, Service type: Waterproof and magnetic front service
6, PSU: Pin connection independent power box, easily and evenly
remove and put on
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP68 Outdoor standard and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>7000-10000cd/sqm
Feature Of Outdoor Fixed LED Billboard
1. Lightweight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
2. Nice appearance and simple structures.3. Jointed correctly, being installed & dismounted by one person
without tool.4. Humanized operating interface with breakdown indicator lights,
easy to maintain.5. High debugging brightness and no damage to gray scale, achieving
the debugging technology for nice image.
Description Of S Series Outdoor Fixed LED Screen
TBC LED S Series outdoor fixed led screen include P6.67mm, 8mm and
P10mm Features are:
1. High brightness SMD3535 LED is used for outdoor LED display,
keeps the display content visible even if facing the strong
sunshine directly.
2. Weatherproof design, completely outdoor use.
3. The LED Chips that we use have the advantages of large viewing
angle, low power consumption and good color uniformity.
4. Good quality raw material, accurate technique and careful
inspection insures the high quality of LED display.
5. Cabinet size double fan design, speed up internal air
circulation, auxiliary heat make the screen more stable and
reliable.
Specification Of Outdoor Fixed LED Screen
| S 6.67 | S 8 | S 10 |
| Pixel Pitch | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 22,478 pixels/m2 | 15,625 pixels/m2 | 10,000 pixels/m2 |
| Module Dimensions(W x H) (mm) | 480 x 320 | 480 x 320 | 480 x 320 |
| Panel Dimensions (mm) | 960 x 960 x 80 1440 x 960 x 80 | 960 x 960 x 80 1440 x 960 x 80 | 960 x 960 x 80 1440 x 960 x 80 |
| Modules Per Cabinet (W x H) | 2 x 3 | 2 x 3 | 2 x 3 |
| Module Resolution | 71 x 47 | 60 x 40 | 48 x 32 |
| Cabinet Resolution | 143 x 143 | 120 x 120 | 96 x 96 |
| Panel Material | Aluminum | Aluminum | Aluminum |
| Weight per Cabinet | 35kg | 35kg | 35kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >7,000-10000nits | >7,000-10000nits | >7,000-10000nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/8 Scan | 1/8 Scan | 1/2 Scan |
Application Of Outdoor LED Video Wall
Mainly for outdoor advertising, information publishing, journalism
and communication in some places, such as cultural square, traffic
arteries, stations, terminals, information centers, entertainment
venues, shopping, centers, commercial city and etc.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
LED display how to do?
An LED display is composed of an outer frame part, a display part,
a choke part, a power supply distribution and a number of small
accessories.
The details are as follows:

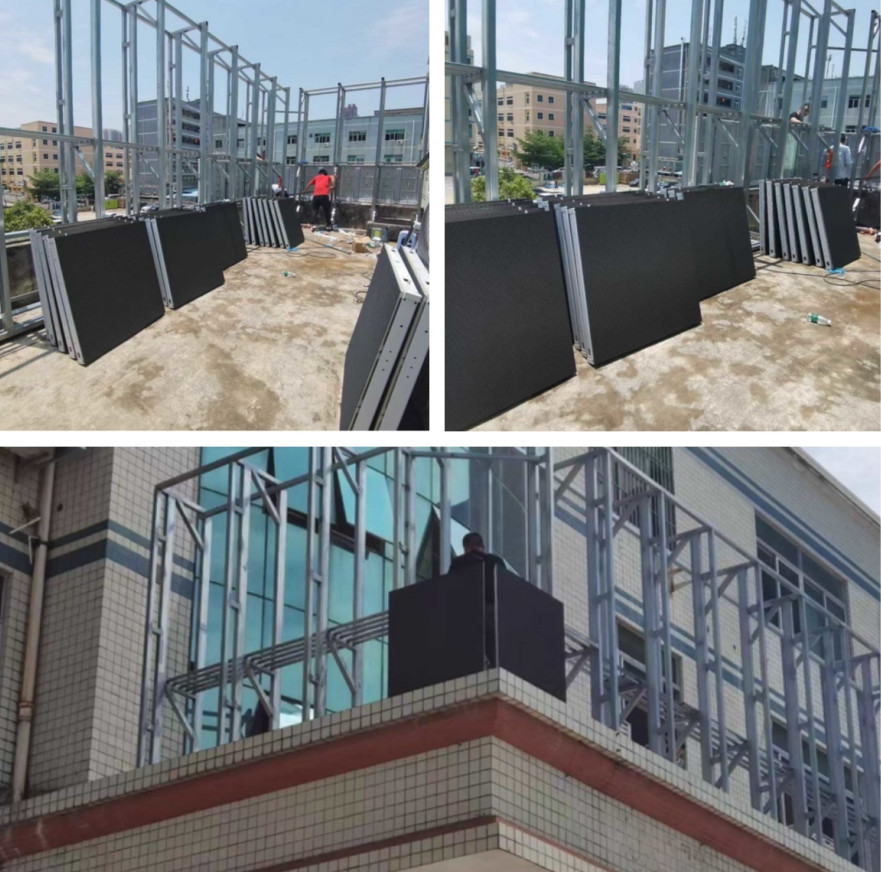

1, the outer frame part, special aluminum profiles, corners, light
steel keel, tailgate (aluminum-plastic board, OSong board) is used
to form the outer frame supporting the LED display.
2, the display part, that is, the LED display unit board and the
wiring power cord composition, is used to display pictures of the
equipment.
3, the control part, the control card and the transfer board, in
addition to the line to form a control module, connected to the LED
display unit board.
4, the power supply part is composed of a plurality of 220V to 5V
power supplies. The commonly used power supply is 40A and 30A.
5, small accessories, such as strong magnets, brackets, magnetic
disks and so on.
After the above parts are composed, an LED display can be made.
