Perfect Visual Stadium Perimeter LED Display with Wonderful Scenes
and Close-up Shots
Functions
1. Introduce the information of the players, and the competition is
live. Large, clear live footage of the game, breaking the seat
restrictions, making it easier to watch the game from a distance.
2. Connected to the referee system and the timing and scoring
system, the LED screen can play the game time and score in real
time.
3. Slow motion replay has become the basis for referees to make
correct decisions, maintaining the fairness and justice of the game
and reducing unnecessary conflicts.
4. Wonderful scenes, slow motion replay, close-ups, to bring the
audience a perfect visual feast.
5. The broadcast of commercial advertisements to the game scene
icing on the cake, perfect picture quality and sound effects, so
that the scene more competition atmosphere and shock.
Classifications
LED sports event screen is generally divided into live LED live
screen and timing score two parts, computer network control system
for data processing, control of large screen display content, in
recent years because of market needs, football stadium around the
LED fence screen is also widely used, mainly for commercial
advertising.
1. LED full color large screen
This kind of LED screen is mainly used to play the wonderful
picture of the stadium game and slow motion close-up footage, the
LED display control system and the venue in all directions of the
camera together, you can see these live and switch pictures from
all angles.

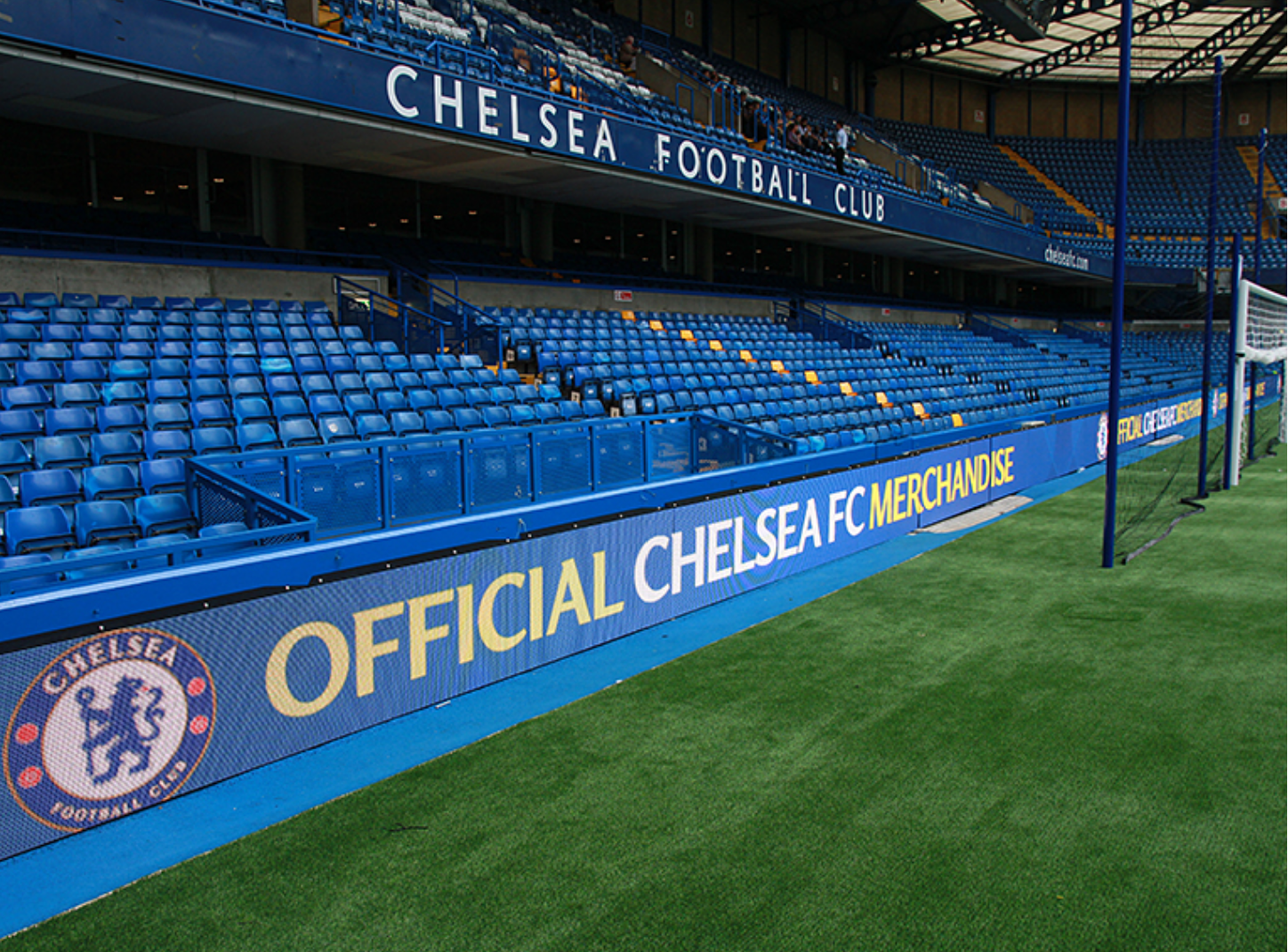

2. LED stadium fence screen
If the giant LED display in every corner of the stadium is to play
wonderful pictures, then the LED display around the football
stadium is mainly used for commercial advertising and game
information, LED stadium fence display attracted well-known brands
around the world. Let the world see the blooming charm of LED
stadium fence screen.
3. LED scoring screen
LED scoring screen is generally used in basketball, table tennis,
volleyball and other competition venues. The LED display is
connected with the timing and scoring system of the game, which can
play and display the latest scores and information at any time; In
addition, this type of LED display can also play competition
information and precautions or other information. In previous
years, monochrome and two-color are more popular, and with the
development and demand of society, LED full-color scoring screens
are also popular in sports stadiums.
Quick detail Of Outdoor Stadium LED Perimeter
1, Pixel Pitch: 10mm
2, SMD3528 LED, high brightness 6000nits and high refresh rate
3, Greyscale: 16bits
4, Cabinet size: 960x960mm Die Cast Aluminum
5, Recommended Viewing Distance: 10-16m.
6, Cabinet Material: Die Cast Aluminum Cabinet, 32kg Weight with
adjustable bracket
7, Refresh Rate: 3840Hz
8, Player protection: Soft cushion on top of cabinet
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>6000cd/sqm
11, Quick Installation: Yes, fast side lock for quick assembly and
disassembly
Parameters
Product Unit Parameters Parameters |
| Mode | P10mm |
| LEDs | 1R1G1B |
| LED type | SMD3528 |
| Pixel pitch | 10mm |
| Unit size | W960×H960mm |
| Unit resolution | 96×96 dots |
| Resolution | 4,096dots/㎡ |
| Unit direction | Vertical Horizontal |
| Brightness | ≥6000nit |
| Weight | 32KG/㎡ |
| Max consumption | 500W/㎡ |
| Adv consumption | 230W/㎡ |
| Viewing angle | H120°/V120° |
| Protection level | IP65 |
| Thickness | 100mm |
Heat dissipation
| Convective heat dissipation |
| Power supply | Power supply with PFC |
| Installation | Fast install |
| Service | Back |
| Control mode | steady state |
| Color temperature | 3200-9300K |
| Refresh rate | 60Hz |
| Working temperature | -40℃ to 70℃ |
| Storage temperature | -55℃ to 120℃ |
| Life time | ≥100,000 hours |
| Input voltage | AC110-220V |
| Grey grade | 16bit |
