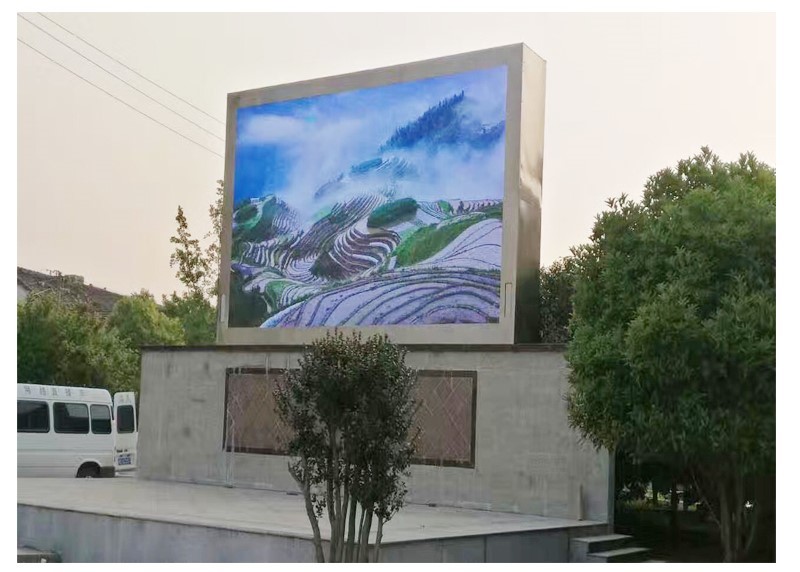

Full Color P10 Outdoor LED Billboard for High Definition Digital Advertising

Features and Advantages

1,Brightness is high enough

For outdoor, it is bright enough for people to see the content of the billboard, and it is currently the only large display terminal that can be used outdoors all day.

2,Large area, wide viewing Angle
The area is dozens of square meters to more than hundreds of square meters, several times or even ten times larger than the traditional electronic advertising media, and in terms of viewing Angle, the indoor viewing Angle can be greater than 160 degrees, outdoor viewing Angle can be greater than 120 degrees. This is more advantageous in some applications.

3,Long life

The service life of the LCD module panel is greater than 100,000 hours, because the backlight is generally LED lights, so the life of the backlight is comparable to the life of the LED screen. Even if it is used 24 hours a day, the equivalent life theory is more than 10 years, and the half-life is 50,000 hours, but how long it can actually be used is also closely related to the use of the product environment and maintenance.

4,Easy maintenance

Unlike other types of large screen, LED large screen if a part is not bright, you can directly change a box, and even now some manufacturers do more sophisticated, you can directly change a LED, not because of a part of the reason so that the whole screen can not be used.

5,Exquisite process

With waterproof, high temperature, low temperature and other outdoor harsh environment.

Specifications

Parameter			Unit	Value
Brightness			nits	6000
Color temperature			deg.k	3200 ~ 9300
Viewing angle - Horizontal			deg.	160(+80/-80)
Viewing angle - Vertical			deg.	160(+80/-80)
Cabinet weight			kg	53
Cabinet width			mm	960
Cabinet height			mm	960
Cabinet depth			mm	150
Cabinet area			sq. m.	0.92
Cabinet material				Cold Steel
Aspect ratio				1:1
Ingress protection (Front/Rear)			IP	IP65/IP54
Operating temperature range			deg. C	- 20 to 50
Operating humidity range			HR	10％ to 90％
Pixel type and configuration			R/G/B	SMD 3in1
Pixel pitch			mm	10
Pixel matrix per cabinet				96x96
Pixels per cabinet				9216
Lines per meter				100
Pixels per sq. meter				10000
LEDs per sq. meter				10000
Recommended minimum viewing distance			m	10
Colours				281trillion
Gray scale			Levels	65536 levels per colour
Brightness control			Levels	100
Digital processing			bit	16
Frame rate			Hertz	60
Display refresh rate			Hertz	1920
Input voltage			VAC	110/240
Input power frequency			Hertz	50/60
Input power (max/avg)			Watts per sq.m	1000/350
MTBF			Hours	≥10000
Lifetime (50%Brightness)			Hours	≥100000
Module brightness uniformity				＜5％
Blind spot rate				＜0.0001
Earth leakage current			mA	＜2
Red wavelength			nm	623
Green wavelength			nm	525
Blue wavelength			nm	470
Panel input format (with video processor)				VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection				CAT6 cable/Fiber
Operating system				Windows(XP/Vista/7/8/10)
Control distance				Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

Application

Outdoor LED Display has a wide range of application scenarios, which can be used in advertising, commercial squares, traffic guidance, city signs, sports venues, cultural and performing arts, large-scale events and weather forecasting, etc., to provide people with a variety of functions such as information transmission, publicity and promotion and entertainment experience.

     Founded in 2008, Topbright Creation Limited is one of the leading LED manufacturer in China. We are able to provide huge range of LED display products and services to customers from advertising and entertainment business industries all over the world. With registered capital of 10 million CNY and nearly 300 employees, we are equipped with full series of automatic production line, including advanced manufacturing equipments and perfect testing devices, which guarantee a monthly capacity of 5000 square meters LED display.

     Our R&D team have more than 10 years experience in LED industry. They are the base support to our new products development and customized products according to customers’ requests. In order to design and develop higher quality products, our R&D team always tries best to meet the Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been listed by CE, ROHS, FCC, EMC standards.

     With perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, TBC LED has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 100 countries and regions all over the world.

     TBC philosophy is to make effective and affordable LED products for customers, we are like Toyota of LED industry: economic, reliable and effective.
