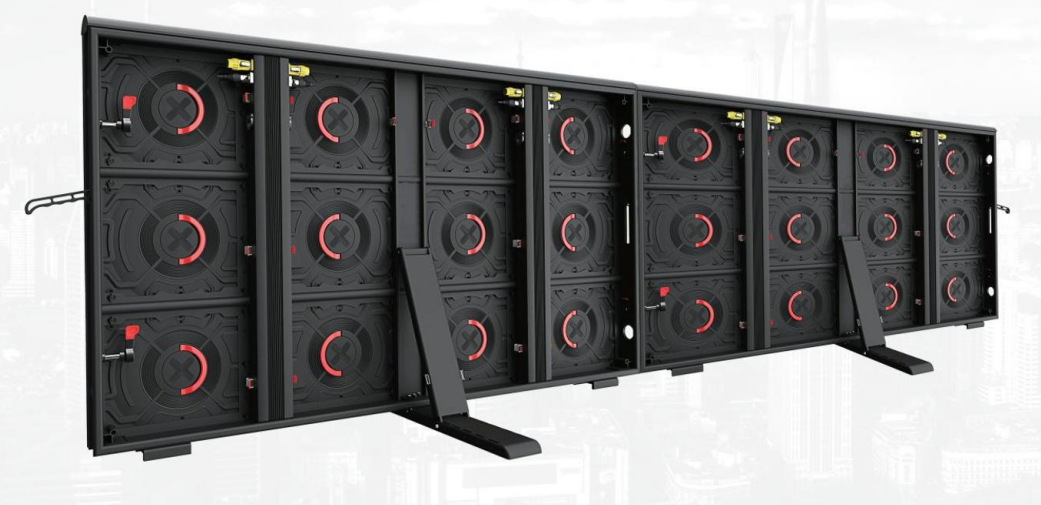

Outdoor P10mm LED Perimeter Folding Aluminum Bracket 7000nits High Brightness 3840Hz Refresh Rate

Quick detail Of Outdoor Stadium LED Perimeter

1. Pixel Pitch: 10mm
2. SMD2727 LED, high brightness 7000nits and high refresh rate 3840Hz
3. Greyscale: 16bits
4. Cabinet size: 1600x900mm high-quality alumiunm cabinet
5. Recommended Viewing Distance: 10-16m.

6. Cabinet Weight:45KG with adjustable bracket

7. Refresh Rate: 3840Hz

8. Player protection: Soft cushion on top of cabinet

9. Quality Certificate:CE, RoHS,FCC, ETL

10. Brightness: 7000nit

11. Quick Installation: Yes, fast side lock for quick assembly and disassembly

Specification Of Outdoor Stadium LED Perimeter

Description Of Outdoor Football Stadium LED Perimeter

TBC LED outdoor football stadium led perimeter features are:

1. Advanced LED SMD2727, high brightness under bright sunlight, highly visible

2. Lightweight high quality alumiunm bracket, quick install and easy to handle for transportation

3. High refresh rate up to 3840Hz, good for live broadcasting

4. Adjustable angle bracket, allow customer to change how audience can see the led

5. Soft cushion on top for maximum player protection

Feature Of Outdoor Stadium LED Perimeter

1. Polymer soft mask, better contrast. With special soft screen mask and cabinet rubber cover protector, it can protect the players from being hurt during the match.

2. High-quality aluminum cabinet. Lighter 45kgs per panel, save shipping cost and installation labor cost.

3. Ultra-thin cabinet only 98mm.

4. Both front and rear side to achieve IP65.

5.160°Super wide viewing angle.

6. The brightness is 7000cd/㎡, 5000:1 high contrast ratio, 16bit Gray scale processing technology, with 65536 colors, great visual performance even under direct sunlight.

7. High gray scale 16 bit.

8. The independent brackets support flexibly 90°,85°,80°,75°,70°,65° for audience and cameras. The most important is the bracket of QS Series LED display can be folded and hidden.

9. Support full-front and rear maintenance, save more time.

10. Seamless splicing, perfect flatness.

Our Services

1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

FAQ

Q1. How does the service work?

A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

Q2. What installation options do we have?

A: Wall mounting with metal structures.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
