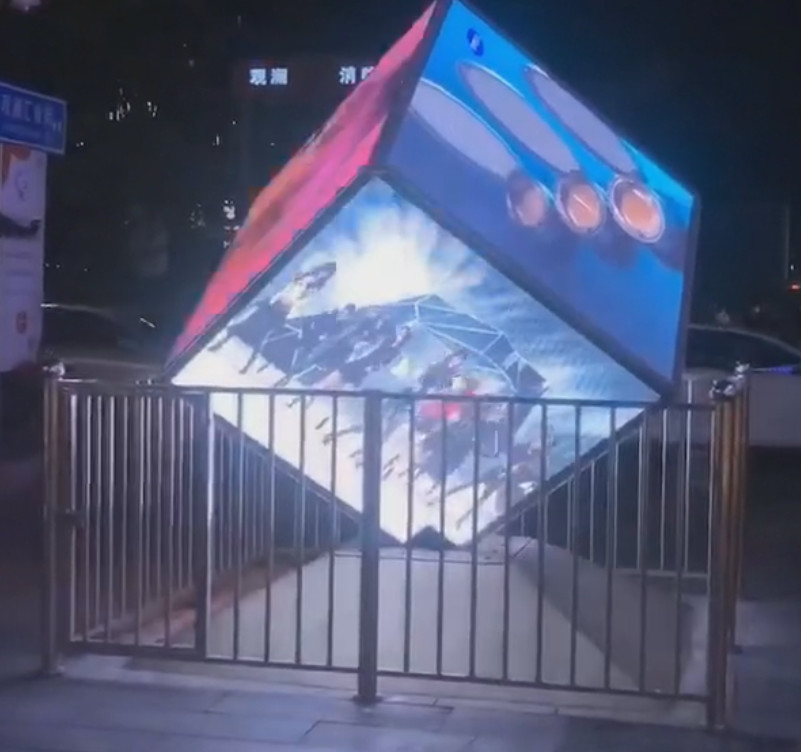

Cubic LED displays, also known as 3D LED displays, are a type of
LED display that has a three-dimensional structure, giving them a
unique appearance and set of advantages compared to traditional
flat LED displays. Here are some of the key advantages and
applications of cubic LED displays:
1. Eye-catching design: Cubic LED displays have a distinctive
three-dimensional appearance that makes them stand out in crowded
environments, such as shopping malls, public squares, and event
venues. This makes them ideal for advertising and promotional
purposes, as they can attract the attention of passersby and
effectively convey messages.
2. Versatility: Cubic LED displays can be customized in terms of
size, shape, and color, allowing them to be adapted to a wide range
of applications and environments. This versatility makes them
suitable for use in various industries, including retail,
entertainment, hospitality, and corporate settings.
3. High-resolution images: Cubic LED displays can produce
high-resolution images with vivid colors and sharp details, making
them ideal for displaying visual content such as videos,
animations, and graphics. This makes them suitable for use in
applications such as digital signage, event production, and visual
merchandising.
4. Wide viewing angle: Cubic LED displays have a wide viewing
angle, which means that they can be seen clearly from multiple
angles, making them suitable for use in large public spaces where
people may be viewing from different directions.
5. Durability and low maintenance: Cubic LED displays are built
with durable materials and components, making them suitable for use
in outdoor environments. They also require minimal maintenance,
which reduces ongoing costs and makes them a cost-effective
solution for long-term use.
6. Interactivity: Some cubic LED displays can be integrated with
interactive technologies, such as touch screens and motion sensors,
allowing users to engage with the content in a more immersive way.
This makes them suitable for use in applications such as
interactive exhibitions, product demonstrations, and educational
settings.
In summary, cubic LED displays offer a unique combination of
eye-catching design, versatility, high-resolution images, wide
viewing angle, durability, and interactivity, making them an
attractive option for a wide range of applications and industries.
III. Parameter:
| Parameter | Unit | Value |
| Brightness | nits | 6000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 140(+70/-70) |
| Viewing angle - Vertical | deg. | 140(+70/-70) |
| Cabinet weight | kg | 54 |
| Cabinet width | mm | 1280 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 1.23 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 4:3 |
| Ingress protection (Front/Rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 10. |
| Pixel matrix per cabinet | | 128x96 |
| Pixels per cabinet | | 12288 |
| Lines per meter | | 100 |
| Pixels per sq. meter | | 10000 |
| LEDs per sq. meter | | 10000 |
| Recommended minimum viewing distance | m | 10 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 960/330 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
