LED Film screen--product features
1.Thin
• The screen is light in weight and has no pressure on the glass,
• Thickness: about 3mm, weight 3-6kg/ square meter
2. Transparent
• The structure is extremely simple, the permeability is high, does
not affect the viewing line, and the permeability is as high as 85%
or more
3. High flexibility
• The maximum unit size is limited to 960mm*3000mm,
• The maximum size and length of a single glass is 3 meters,
without a power box in the middle.
• Can be bent and cut, not limited by size, can be flexibly
designed according to customer needs Strong flexibility, can be
attached to any curved glass/wall
4. Easy to install
• Easy to install, directly attached to the glass surface, and then
just connect the signal and power supply
5. Large viewing angle
• Up to 140 degrees up, down, left, and right fields of view, no
dead angle, no color cast, the image is always perfect and seamless
6. Cost saving
• Product installation does not require additional steel frame
structure, does not need to change the appearance of ancillary
buildings, effectively reducing transportation and installation
costs
LED film screen - product parameters
Project | Unit | parameter | parameter | parameter | parameter |
Product No |
| DM4/8 | DM6.5 | D10 | D20 |
light source model | SMD | 2121 | 2121 | 2121 | 2121 |
Density | dot/m2 | 31250 | 23668 | 10000 | 2500 |
Module Size | mm | 960(H)X256(W) | 962(H)X208(W) | 960(H)X320(W) | 960(H)X320(W) |
Screen compositon | High transparency,high temperature resistance,flame retardantPC |
Weight | kg/m2 | 6 | 6 | 6 | 6 |
Permeability |
|
|
|
|
|
Brightness | cd/m2 | ≥4000 | ≥5000 | ≥5000 | ≥3000 |
Refresh | Hz |
|
|
|
|
Scan |
| stati | stati | stati | stati |
Maximum power | W/m2 |
|
|
|
|
average power | W/m2 | 300 | 300 | 200 | 200 |
installation method |
|
|
|
|
|
maintenance method |
Pre/Post Maintenance |
Brightness Level |
| 256 |
| Operating Voltage | | DC5V |
gray scale | bit | 12- 16 |
IP | IP | IP30 |
Viewing angle | Degree | Horizontal≥150度, Vertical ≥ 150 |
Input voltage |
| degreesAC95V~240V |
Operating temperature | °C | -20~65 |
Working humidity |
| 10% ~90RH |
service life | 1 00000 hours |
Film-type LED displays, also known as flexible LED displays, are a
type of LED display that uses a thin, flexible substrate to create
a lightweight and versatile display solution. Here are some of the
key features, advantages, and applications of film-type LED
displays:
Features:
1. Lightweight and flexible: Film-type LED displays are made with a
thin, flexible substrate, making them much lighter and more
flexible than traditional LED displays. This makes them easier to
install, transport, and store.
2. Curvable and conformable: Film-type LED displays can be curved
and conformed to fit a variety of shapes and surfaces, making them
suitable for use in applications where a customized display is
required.
3. High-resolution images: Film-type LED displays can produce
high-resolution images with vivid colors and sharp details, making
them ideal for displaying visual content such as videos,
animations, and graphics.
4. Wide viewing angle: Film-type LED displays have a wide viewing
angle, which means that they can be seen clearly from multiple
angles, making them suitable for use in large public spaces where
people may be viewing from different directions.
5. Durability and low maintenance: Film-type LED displays are built
with durable materials and components, making them suitable for use
in outdoor environments. They also require minimal maintenance,
which reduces ongoing costs and makes them a cost-effective
solution for long-term use.
Advantages:
1. Creative design possibilities: The flexibility and curvability
of film-type LED displays allow for a wide range of creative design
possibilities, enabling users to create unique and eye-catching
display solutions.
2. Versatility: Film-type LED displays can be used in a wide range
of applications and industries, including retail, entertainment,
hospitality, corporate settings, and public spaces.
3. Easy installation and maintenance: The lightweight and flexible
nature of film-type LED displays makes them easy to install,
relocate, and maintain, reducing the overall cost and effort
required for display solutions.
4. Energy efficiency: Film-type LED displays are energy-efficient,
using less power than traditional LED displays, which helps to
reduce energy costs and environmental impact.
Application range:
Film-type LED displays are suitable for a wide range of
applications, including:
1. Digital signage: Film-type LED displays can be used for digital
signage in retail stores, shopping malls, airports, and other
public spaces to display advertisements, promotions, and other
visual content.
2. Event production: Film-type LED displays can be used to create
immersive and engaging visual experiences at events, such as
concerts, festivals, and conferences.

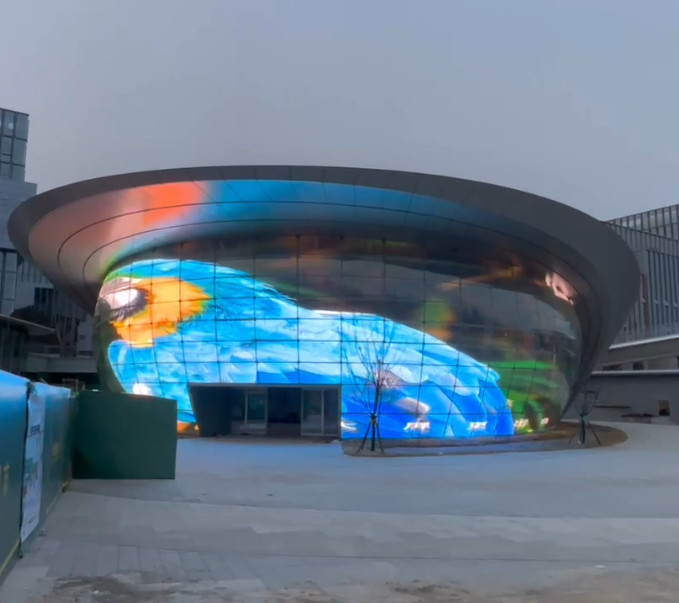

3. Architectural lighting: Film-type LED displays can be used for
architectural lighting projects, such as façade lighting, to create
visually stunning and energy-efficient lighting solutions.
4. Interactive exhibitions: Film-type LED displays can be
integrated with interactive technologies, such as touch screens and
motion sensors, allowing users to engage with the content in a more
immersive way.
5. Vehicle displays: Film-type LED displays can be used for vehicle
displays, such as bus advertising and taxi rooftop displays,
providing a flexible and durable solution for mobile advertising.
In summary, film-type LED displays offer a unique combination of
flexibility, versatility, high-resolution images, wide viewing
angle, durability, and energy efficiency, making them an attractive
option for a wide range of applications and industries.
