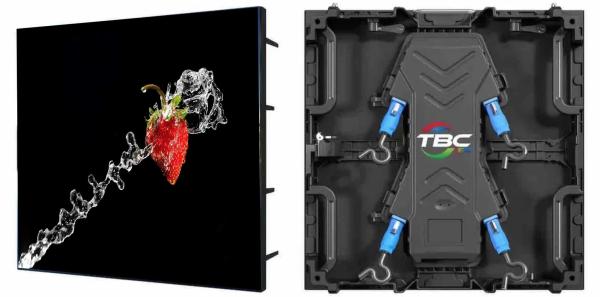

Indoor P2.6mm 500x500mm Rental LED Screen 3840Hz Refresh Rate
Indoor P2.6mm 500x500mm Die Cast Aluminum Cabinet Rental LED
Display 3840Hz Refresh Rate
Indoor P2.6mm 500x500mm Die Cast Aluminum Cabinet 3840Hz Refresh
Rate Nation Star LED with 22bits Greyscale
Feature Of Indoor Rental LED Video Wall
With the improvement of people's viewing requirements, a single
traditional stage effect can no longer meet the needs of the
audience; colorful, variable screen LED display because of its own
many advantages to fully meet the requirements of today's
choreography. Whether it is an outdoor commercial performance or
various forms of party, in the field of choreography is
increasingly playing an important role, LED display in the field of
choreography use diversification, to bring more diversified and
innovative choreography design. The competition in the industry for
the rental market is also becoming more intense, the leasing
products of various display companies continue to push the new,
especially in the high-end small pitch, transparent screen,
interactive tile screen and other new forces in the leasing
products, the development of the leasing screen is a vibrant
opportunity, the unprecedented prosperity of the leasing market.
The outbreak of small pitch has led to the development of the
entire LED display industry, and its impact on the rental market
has also caused a considerable impact on the high-end stage rental
market represented by small pitch came into being. But small pitch
to get a long development in the field of stage rental need to
solve many problems. From the cost, the biggest part of the reason
customers will choose the rental screen is that compared to
ordinary LED display, LED rental screen in the cost of more
advantageous, and small pitch products in the production process
only the use of lamp beads than ordinary display several times, so
the high price of small pitch products. From the maintenance, due
to the LED stage rental screen in the use of the process often need
to disassemble and handling is very easy to produce bump,
especially small spacing products are more prone to bump, when the
bump requires a large number of professionals to repair, counting
on manufacturers to repair is more difficult, the user will have to
set up a professional team to maintain the small pitch rental
screen, which undoubtedly increased part of the cost, which also
This is one of the reasons why small pitch products are not widely
used in the rental market. At present, as the domestic COB
packaging technology continues to mature, 5G piggyback system
continues to improve, LED rental screen enterprises should seize
the opportunity to innovate technology, the development of small
pitch HD rental screen direction. In terms of audience demand, the
future audience will pursue higher definition and more realistic
color on the basis of the existing, small pitch products are bound
to be the development trend of the stage rental screen.
Quick detail Of Indoor Rental LED Screen
1, Pixel Pitch: 2.6mm. 2.9mm, 3.91mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 140°/
140°.
3, Greyscale: 16bits with NOVA Star MRV328
4, Cabinet size: 500x500mm Die Cast Aluminum
5, Recommended Viewing Distance: 2-4m.
6, Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 Indoor
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:>1000cd/sqm
11, Curve Installation: Yes, Concave and Convex Available
12, Corner Protector: Available
Specification Of Indoor Rental LED Screen
| XT1.95 | XT 2.6 | XT 2.9 | XT 3.91 |
| Pixel Pitch | 1.953mm | 2.604mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density | 262,144 pixels/m2 | 147,456 pixels/m2 | 112,986 pixels/m2 | 65,536 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 128x128 | 96 x 96 | 84 x 84 | 64 x 64 |
| Cabinet Resolution | 256x256 | 192 x 192 | 168 x 168 | 128 x 128 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840 Hz | >3,840 -7680Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/32 Scan | 1/32 Scan | 1/21 Scan | 1/16 Scan |
Description Of Indoor Rental LED Screen
TBC LED Rental Series indoor rental led screen include P1.95mm,
P2.6mm, P2.9mm, 3.91mm. Features are:
1, Curve Application via Rotary Lock
2, Flash Function: Calibration Data Saved and Used Automatically
3, Front and Rear Maintenance via Magnets
4, Independent Power Box
5, Poster Function, Easily switched to a LED Poster
Advantages Of Indoor Rental LED Video Wall
The utility model provides a large screen rental LED display box
quick connection device, in the middle of the box back cover on
both sides of the power line and signal line cable connectors,
connectors are connected to the power line and signal line, the
lower end of the power line on one side set the input power
connector, the lower end of the power line on the corresponding
other side set the output power connector, the lower end of the
signal line on one side set the input signal connector, set the
output signal connector at the lower end of the corresponding
signal line on the other side, the output power connector of the
box is connected to the input power connector of another box, the
output signal connector of the box is connected to the input signal
connector of another box, forming multiple boxes of large-screen
rental LED display. The advantages of the utility model is: 1. to
achieve rapid connection of LED box site; 2. more convenient
transportation; 3, to avoid damage to the signal line connector in
the transportation process.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
