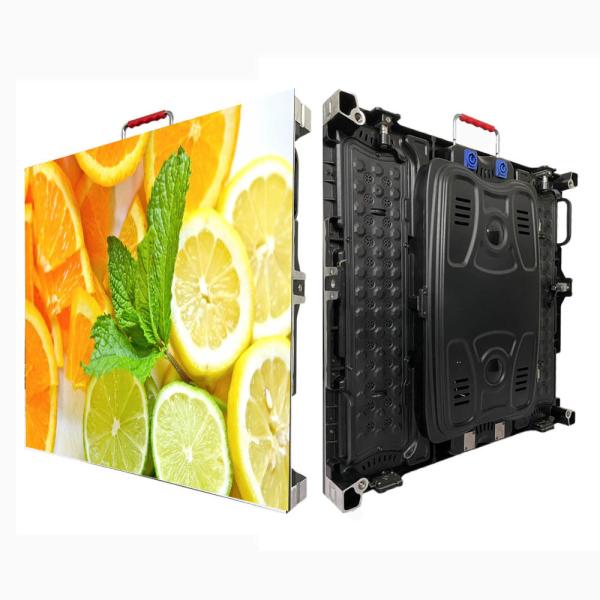

3840Hz Indoor LED Video Wall
High Refresh Rate Indoor LED Display Die Cast Aluminum Cabinet
576x576mm
Indoor P3mm 576x576mm Aluminum Cabinet Rental LED Display with
3840Hz Refresh Rate
Feature Of Indoor Fixed LED Video Wall
From module, power supply to receiving card and so on all can be
maintained from the front, so it is truly a front maintenance. It
breaks the industry's conventional cognition and innovative
technology, which not only can be truly front maintenance, but also
integrates the advantages of front and rear installation, wireless
connection and various installation methods, which injects new
vitality into the field of small pitch.
1. Front and rear installation optional: no maintenance channel,
directly from the front of the installation and maintenance, both
space-saving, but also convenient and fast.
2. A variety of installation methods: applicable to the
installation of steel structures, direct wall mounting, wall
mounting, can also be installed on the floor, with the floor
support frame, can be moved anywhere, flexible and convenient.
3. Special box design, protection of LED lights: small pitch
products in the transportation process is easy to damage the lamp
beads, HDV series of new products in the edge of the box to
increase the protection measures to avoid damage to the lamp beads.
4. Wireless connection between the boxes: hidden alignment design,
simple wireless, unlimited creativity.
5. Ultra-thin and ultra-light: New box thickness of only 60mm, the
weight is also greatly reduced, transport costs and labor costs are
greatly saved.
Quick detail Of Indoor LED Video Wall
1, Pixel Pitch: 2.5mm, 3mm, 4mm
2, Nation Star or Kinglight SMD LEDs, high contrast and high
reliability
3, Greyscale: 16bits
4, Cabinet size: 576x576mm Die Cast Aluminum Cabinet
5, Service type: Magnetic front service
6, PSU: MEANWELL or G energy brand
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 indoor use and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>800-1000cd/sqm
Specification Of Indoor Fixed LED Screen
| E 2.5 | E 3 | E 4 |
| Pixel Pitch | 2.5mm | 3mm | 4mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 160,000 pixels/m2 | 111,111 pixels/m2 | 62,500 pixels/m2 |
| Module Dimensions(W x H) (mm) | 320 x 160 | 192 x 192 | 256 x 128 |
| Panel Dimensions (mm) | 960 x 960 x 100 640 x 480 x 100 | 960 x 960 x 100 576 x 576 x 80 | 1024 x 1024 x 100
|
| Module Resolution | 168 x 84 | 64 x 64 | 64 x 32 |
| Cabinet Resolution | 384 x 384 | 320 x 320 | 256 x 256 |
| Panel Material | Steel | Die Cast Aluminum | Steel |
| Weight per Cabinet | 26kg | 8kg | 26kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >8,00 nits | >8,00 nits | >8,00 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
Description Of Indoor Fixed LED Screen
TBC LED E Series indoor fixed led screen include P2.5mm, 3mm and
P4mm Features are:
1, Steel wall mount cabinet, can be installed to the wall directly
2, High refresh rate 3840Hz adjustable
3, Magnetic modules, Front and Rear Maintenance via Magnets
4, NOVA Star or Colorlight system free to choose
5, Easy to use and installation
Advantages Of Indoor Fixed LED Video Wall
Uniform color, natural picture:
Broadcast-grade color gamut, color temperature and brightness
intelligent adjustable, uniform color, high contrast, beautiful
natural picture; anti-UV, anti-deformation module kit, to protect
the screen body flat and not deformed.
Wide viewing angle:
Up, down, left and right 160 degree viewing angle, broadcast-level
color gamut, color temperature and brightness intelligent
adjustable, more suitable for long time viewing. Box for the
command and control center display screen features planned into
16:9 ratio, easy to achieve 4:3 or 16:9 ratio of the screen.
Energy saving ≥ 36%:
Using the industry's top low-power ultra-bright LED lights, energy
saving ≥ 30%, with industrial-grade high-power power switch core
patented technology, the overall energy saving ≥ 36%, energy saving
and environmental protection.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
