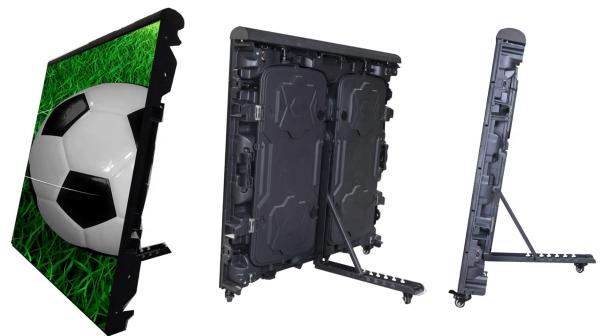

SMD3528 P10 Outdoor LED Display 6000nits High Brightness LED Screen

Outdoor P10mm Perimeter LED Screen Cricket Stadium 6000nits High Brightness

Outdoor P10mm LED Perimeter Aluminum Cabinet 6000nits High Brightness 3840Hz Refresh Rate

Specification Of Indoor Stadium LED Perimeter

Feature Of Outdoor Stadium LED Perimeter

For outdoor LED perimeter displays showing sports video, we use SMD triple technology, which provides wider viewing angle and higher real time rate for sports event broadcast. Our company provides high-quality led perimeter displays for all kinds of sports events, and its LED video image processor can achieve unlimited real-time communication, management and integration of dynamic display content (such as: video recording, time, text, charts, animation and scoreboard system, etc.), but also through the software partition function to achieve the whole screen multi-window display, can simultaneously display images, real-time display, text, clock, event scores. The content we display is simple, clear and easy to read, thus ensuring the best experience for the viewer and creating the perfect video effect.

Our LED perimeter displays can be used in different climate zones all over the world, and the temperature range can be from -30℃ to 60℃. Since our cases have good moisture and corrosion resistance, the products can even be used in high humidity and high salinity air environment by the sea.

The LED video control system comes with a double backup system so that customers can automatically or manually switch to the backup system in case of failure.

The application of SMD 3-in-1 technology in indoor and outdoor stadium LED displays achieves wider viewing angles and higher refresh rates, thus ensuring that viewers do not miss the opportunity to watch live sporting events.

Quick detail Of Outdoor Stadium LED Perimeter

1, Pixel Pitch: 10mm
2, SMD3528 LED, high brightness 6000nits and high refresh rate
3, Greyscale: 16bits
4, Cabinet size: 960x960mm Die Cast Aluminum
5, Recommended Viewing Distance: 10-16m.

6, Cabinet Material: Die Cast Aluminum Cabinet, 32kg Weight with adjustable bracket

7, Refresh Rate: 3840Hz

8, Player protection: Soft cushion on top of cabinet

9, Quality Certificate:CE, RoHS,FCC, ETL

10, Brightness:>6000cd/sqm

11, Quick Installation: Yes, fast side lock for quick assembly and disassembly

Description Of Outdoor Football Stadium LED Perimeter

TBC LED outdoor football stadium led perimeter features are:

1, Advanced LED SMD3528, high brightness under bright sunlight, highly visible

2, Lightweight die cast aluminum cabinet, quick install and easy to handle for transportation

3, High refresh rate up to 3840Hz, good for live broadcasting

4, Adjustable angle bracket, allow customer to change how audience can see the led

5, Soft cushion on top for maximum player protection

Application Of Outdoor Stadium LED Perimeter

Product features.

1. Single box with its own power and signal work indicator, convenient to quickly diagnose where the fault lies, so as to quickly repair.

2. Light box, thin screen body, high flatness, easy to carry, low transportation cost.

3. Quick locking and positioning pins for quick installation and disassembly.

4. For the format, the display mode can be programmed by users at will; it can display text, pictures, charts, images, animations and video information; and the amount of information displayed is not limited.

5. In different batches of customized products, LED boxes with the same specifications are calibrated to the same brightness and color.

6. Large viewing angle, uniform color, high brightness, specifically for stage performances to create LED stage background screen.

7. Medium and high-end configuration, stable performance, good flatness, seamless splicing.

8. The box adopts ultra-thin super design, beautiful appearance, easy to install, can be made into any shape according to the user's needs, assembly and disassembly, easy maintenance.

Our Services

1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

FAQ

Q1. How does the service work?

A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

Q2. What installation options do we have?

A: Wall mounting with metal structures.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
