Light Weight P4.81mm Stage Rental LED Display 5000nits LED Video
Wall
Outdoor P4.81mm Stage LED Screen 500x500mm Aluminum Cabinet Light
Weight 5000nits LED Video Wall
5000nits Outdoor Rental LED Video Wall With Removable Power Box
Specification Of Outdoor Rental LED Screen
| AT 2.9 | AT 3.9 | AT 4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan
|

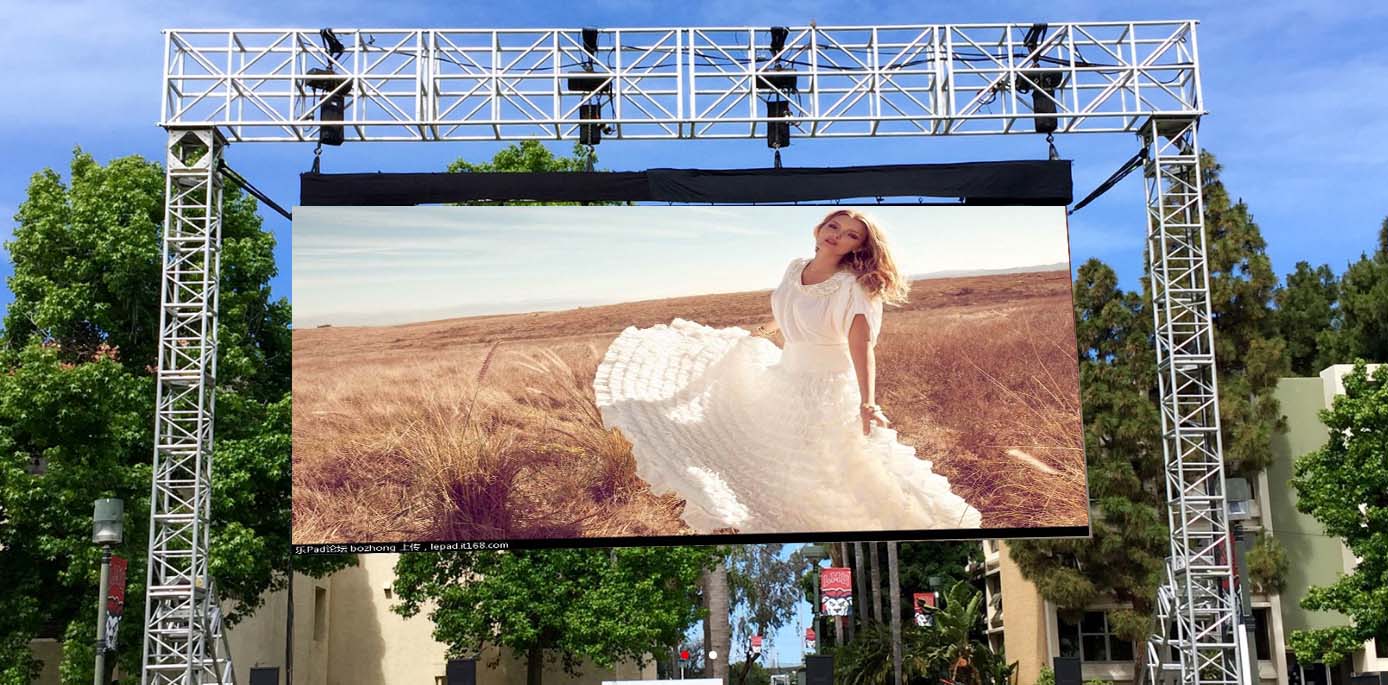

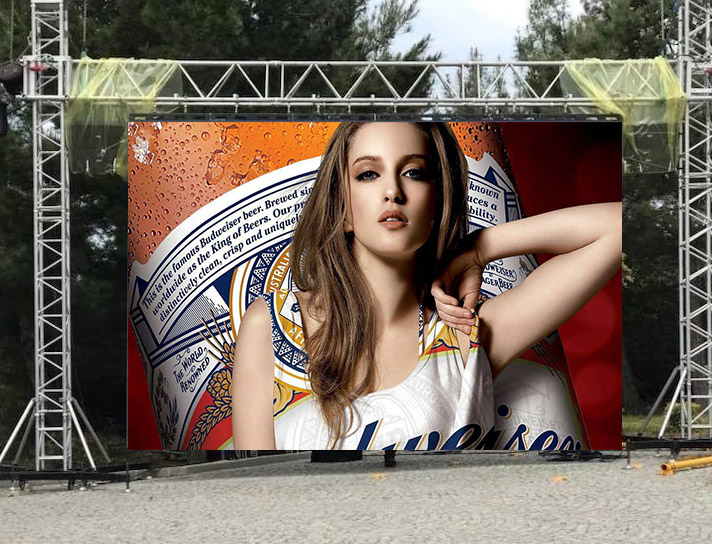

Application Of Outdoor Rental LED Video Wall
The following is a summary of 7 major points.
1. Low rejection rate of the audience
Outdoor rental LED advertisements can be broadcast to more
audiences in a real and timely manner through live broadcasting
technology. It includes special topics, columns, variety shows,
animations, radio plays, TV plays and so on, which are rich in
content and avoid the contact barriers caused by the conscious and
active avoidance of advertising audiences.
2. Nergy conservation and environmental protection
The light emitting element of the LED display screen is LED.
Because the power of a single LED is very low, generally 0.04 ~
0.08 W, the power is several times lower, but the effect is much
better. The LED display screen is made of environmentally friendly
materials, which is recyclable and will not cause environmental
pollution and damage due to extensive use.
3. Simple and convenient to release information
It is connected with the computer through the data line connection
or wireless communication mode, and can be set in the computer to
publish the advertisement content, which is convenient and fast.
4. Ultra-light-weighs only 7 kg, can be carried by one person in
one hand, and is extremely easy to install
5. Ultra-thin-the box body is made of die-casting aluminum, with
high strength, strong toughness, high precision, not easy to
deform, and labor-saving transportation
6. High precision-the size is accurate to 0.1mm by mechanical and
electrical processing
7. Compatible-new structural design, meet the requirements of
hoisting and stacking, and meet the requirements of indoor and
outdoor
Quick detail Of Outdoor Rental LED Screen
1, Pixel Pitch: 2.9mm, 3.91mm, 4.81mm
2, Waterproof Nation Star SMD LEDs, high brightness and high
reliability
3, Greyscale: 14bits with NOVA A5S, 22bits with NOVA Star A8S
4, Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet
5, Service type: Waterproof and magnetic front service
6, PSU: Pin connection independent power box, easily and evenly
remove and put on
7, Refresh Rate: 3840Hz
8, Ingress Rate: IP68 Outdoor standard and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>5000cd/sqm
11, Curve Installation: Rotary lock for +- 15 degree Concave and
Convex shape
12, Corner Protector: Semi-auto Corner Protector, gently push and
release the protector for the max security of LEDs
Feature Of Outdoor Rental LED Screen
TBC LED Ant Series outdoor rental led screen include P2.9mm, 3.91mm
and P4.81mm Features are:
1, Adjustable Angle lock for curve Application via Rotary Lock
2, Advanced Flash Function: The Calibration Data can be Saved to
the receiver card and used automatically
3, Outdoor Waterproof IP68 Standard, Rear Maintenance via Screw
4, Rubber seal for the back of the module, to create maximum
protection against rain or moisture
5, Easy to use corner protectors, push it and corner protector
released
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
