High Brightness 8000nits P31.25mm Outdoor LED Billboard IP68 Waterproof

P31.25mm LED Mesh Billboard Outdoor 8000nits High Brightness IP68 Waterproof -40C Cold Performance

Outdoor P31.25mm LED Mesh Aluminum Cabinet 8000nits IP68 Waterproof High Brightness Wind Resistant​

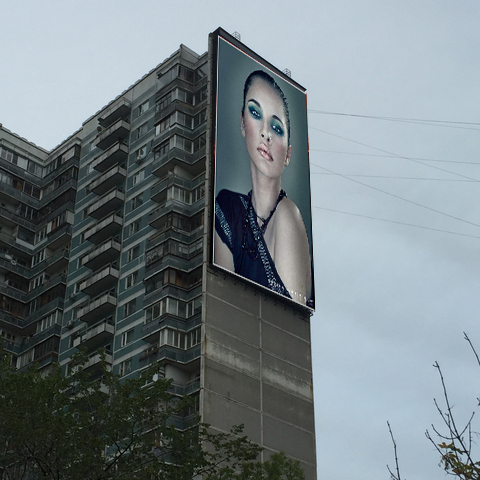

Application Of Outdoor Advertising LED Mesh Billboard

Media façades are layers of individually controllable lights, attached to – or even woven into – the exterior surface of a building to function as a dynamic palette for text, graphics and video animations.

Differences between LED Transparent screen and LED Mesh

1. The use of lamp beads is different:

The led light bar screen generally has a relatively large production area, so the dot spacing is relatively large, and the dot density is relatively small. However, when used in the outdoor environment, there is a need for high-brightness products, so it is generally made by directly inserting lamp beads to ensure the high-brightness characteristics of the screen body. The led transparent screen is installed indoors for outdoor viewing, the dot density is generally larger, the dot spacing is smaller, and the precision is higher, so it is generally made of SMD lamp beads.

2. The installation environment is different: the led light bar screen is installed outside the screen body, while the transparent led display screen is installed in the indoor environment.

Quick detail Of Outdoor Advertising LED Mesh

1, Pixel Pitch: 12.5mm, 15.625mm, 20mm
2, DIP346 LED, high brightness and durable for outdoor use
3, Greyscale: 16bits
4, Cabinet size: 500x1000mm Die Cast Aluminum
5, Recommended Viewing Distance: 10-16m.

6, Cabinet Material: Die Cast Aluminum Cabinet, 21kg Weight

7, Refresh Rate: 3840Hz

8, Ingress Rate: IP68 Outdoor Standard Connectors

9,Quality Certificate:CE, RoHS,FCC, ETL

10,Brightness:>7000-8500cd/sqm

11, Curve Installation: Yes, Concave and Convex Available

Specification Of Outdoor Advertising LED Mesh Screen

Description Of Outdoor Advertising LED Mesh Billboard

TBC LED EV Series outdoor advertising LED Mesh billboard include P12mm, P15.625mm, P20mm. Features are:

1, Advanced LED strip design, easy installation and service

2, Strong Tail board design, ensures quick installation and smooth surface

3, IP68 weather design and advanced heat sink shell, reliable and secure for long term use

4, 7000-8500 nits high brightness, make your led billboard visible from anywhere

5, Waterproof and wind resistant, perfect choice for outdoor long term use

Feature Of Indoor Rental LED Video Wall

Thin and light case, fanless design, no noise, fast installation and maintenance, high heat dissipation.

LED Mesh screen is ultra-light and ultra-thin
The box is only 6.4Kg/㎡, which is 75% less than the weight of traditional outdoor LED screen.
Steel structure weighs only 5kg/㎡, 80% less than the weight of traditional outdoor LED display steel structure.

LED Mesh screen high light transmission rate
Effectively protect the building lighting, say goodbye to the "screen blocking", "screen without light" era.

Stable performance of LED Mesh screen
Adopt super thermal conductivity material, heat dissipation performance is improved by 80%. Overall potting process design, military grade IP65 full protection, extreme climate conditions -40℃~60℃ stable work.
Highly permeable windproof design, wind resistance level 12.

LED Mesh screen also save energy and environment
Save 70% on steel structure cost, 80% on labor cost, 75% on transportation and logistics cost, 80% on maintenance and operation cost, and 70% on electricity cost.

Our Services

1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

FAQ

Q1. How does the service work?

A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

Q2. What installation options do we have?

A: Wall mounting with metal structures.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping

     Founded in 2008, Topbright Creation Limited is one of the leading LED manufacturer in China. We are able to provide huge range of LED display products and services to customers from advertising and entertainment business industries all over the world. With registered capital of 10 million CNY and nearly 300 employees, we are equipped with full series of automatic production line, including advanced manufacturing equipments and perfect testing devices, which guarantee a monthly capacity of 5000 square meters LED display.

     Our R&D team have more than 10 years experience in LED industry. They are the base support to our new products development and customized products according to customers’ requests. In order to design and develop higher quality products, our R&D team always tries best to meet the Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been listed by CE, ROHS, FCC, EMC standards.

     With perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, TBC LED has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 100 countries and regions all over the world.

     TBC philosophy is to make effective and affordable LED products for customers, we are like Toyota of LED industry: economic, reliable and effective.
