240x120mm P3mm Curved Led Display Screen 3840 High Refresh Rate

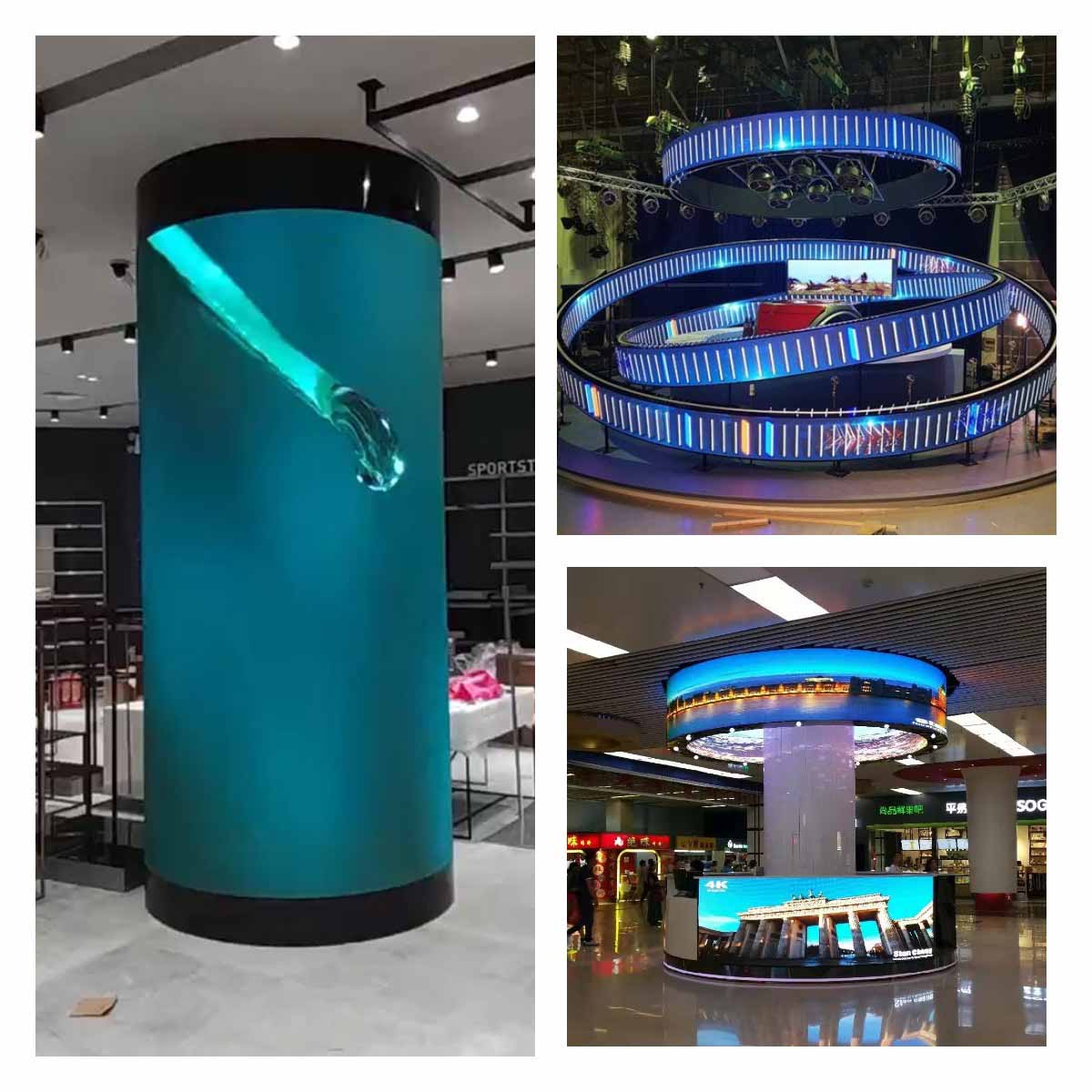

Application Of Soft LED Display
Most of the installation methods are based on magnetic column
adsorption, using the "one installation" installation method, that
is, to complete the customization of the shape according to
customer needs, and then directly adsorb to achieve one-step
installation. The installation method of magnetic attraction is as
simple as the conventional installation method of indoor screen,
and the connecting lines of the box body are connected by quick
butt joints, which is firm and reliable. It has good extensibility
and can be shaped at will. The cylindrical screen has high brush
performance and can be hoisted, seated and hung to meet the
requirements of sound display to the maximum extent. And can ensure
the height requirements of various cylindrical display projects,
using advanced digital video processing technology, distributed
scanning, 360-degree high-definition display, modular design,
constant current static drive, highlight true color output, clear
picture without jitter; But also can realize a multi-picture soft
module; by connecte with a main control computer, that appearance
of the cylinder is provide with three large annular LED display
screens which can synchronously play pictures, and three same and
lifelike pictures can be enjoy no matter a user stands at any angle
of the display to watch, so that the visual range of a product is
enlarged, the high compatibility of the product is integrated with
other video equipment, In fact, it is a leader in multimedia
products.
Quick detail Of Indoor Flexible LED Screen
1, Pixel Pitch: 0.9375mm,1.25mm, 1.579mm, 1.667mm, 1.875mm, 2mm, 2.5mm, 3mm, 4mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 140°/
140°.
3, Greyscale: 16bits with NOVA Star MRV328
4, Cabinet size: Customized according actual application
5, Recommended Viewing Distance: 1-4m.
6, Cabinet Material: Aluminum Cabinet or mount to the steel
structure directly
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 Indoor
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:500-800cd/sqm
11, Curve Installation: Yes, any kind of curve installation
Specification Of Indoor Soft LED Screen
| XT1.25 | XT 1.875 | XT 2 | XT 3 |
| Pixel Pitch | 1.25mm | 1.875mm | 2mm | 3mm |
| Pixel Configuration | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density | 64,000 pixels/m2 | 284,444 pixels/m2 | 250,000 pixels/m2 | 111,111 pixels/m2 |
| Module Dimensions(W x H) (mm) | 240 x 120 | 240 x 120 | 240 x 120 | 240 x 120 |
| Module Resolution | 192x96 | 128 x 64 | 120 x 60 | 80 x 40 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per module | 400g |
| Digital Processing | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >600 nits | >750 nits | >750 nits | >750 nits |
| Refresh Rate | >3,840 Hz | >3,840 -7680Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/48 Scan | 1/32 Scan | 1/30 Scan | 1/20 Scan |
Description Of Indoor Soft LED Display
1.1 Scope of application This specification only applies to the
240mm X 120mm modules in the XR series. The dot spacing includes
XR0.9375/XR1.25/XR1.579/XR1.667/Xr1.875/XR2/XL2.5/XR3/XR4.
1.2 Main features:
--Module standardized size design 240mm X 120mm, low current, low
heat, high contrast ratio above 5000:1, refresh 1920-3840 Hz, 14-18
bit gray scale, no delay and no smear in the image;
--The viewing angle is up to 160 °. XR soft module series is
suitable for cylindrical screen, spiral screen, wave screen, ribbon
screen and other artistic models. Application scenarios: planning
museum, science and technology museum, urban planning museum, art
gallery, museum, creative center, etc;
--The box structure adopts high-strength sheet metal sandblasting
iron box with unique sectional splicing process, which effectively
reduces the splicing gap of the screen body;
--The module is installed by strong magnetic adsorption, which can
be adjusted slightly, and the flatness of the screen body is good.
Power box front maintenance design, special scenarios, can achieve
front installation, with specific tools to meet the front
maintenance;
--The PCB board is made of flexible soft board, and the bottom
shell is made of superior silica gel material;
Module thickness is only 8.6mm, ultra-thin design, small footprint;
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
