High Brightness 5000nits Stage Rental LED Display P3.91mm
Waterproof

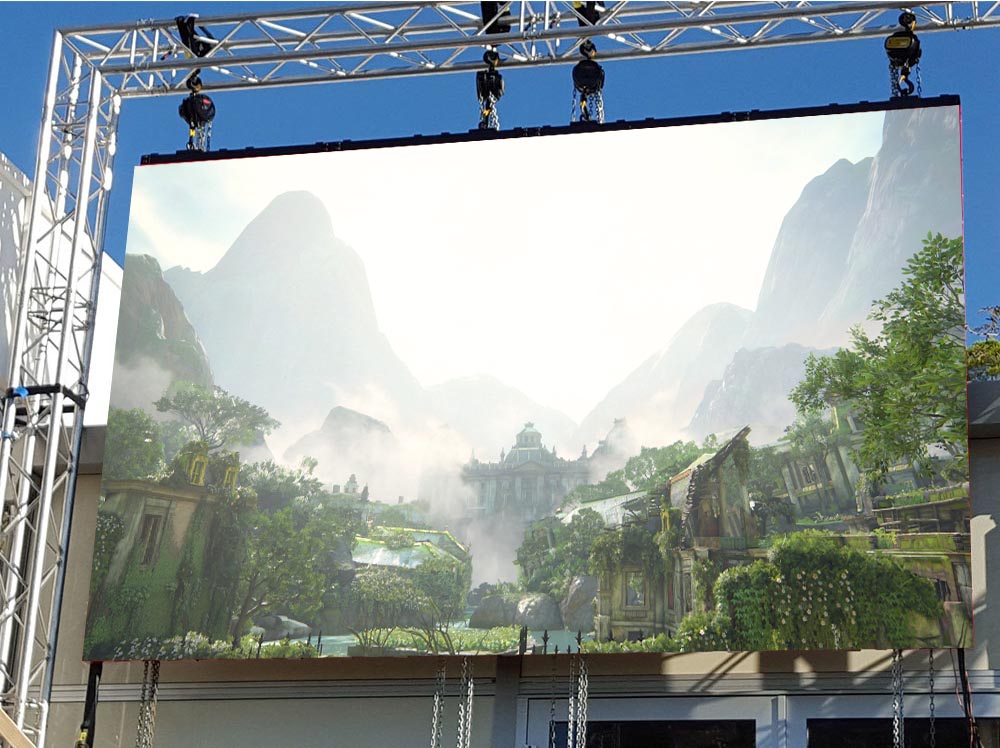

Application Of Outdoor Rental LED Video Wall
The novel front maintenance module is used for installation and
disassembly, so that the novel front maintenance module has the
advantages of no damage to the module, easiness in operation and
capability of adjusting the suction force to an object when in use,
thereby overcoming the defects of the prior art. In order to solve
the technical problem, the novel LED front maintenance module
comprises a screw rod, a magnet mounting plate, a magnet, a
limiting isolation column and a positioning plate, wherein the
magnet is fixedly mounted on the magnet mounting plate; the magnet
mounting plate is fixedly connected with the bottom end of the
screw rod; the limiting isolation column is fixed on the
positioning plate; and the screw rod can rotate up and down
relative to the positioning plate and is connected with the
limiting isolation column. Furthermore, the upper end of the
limiting isolation column is provided with a limiting plate for
preventing the magnet mounting plate from moving upwards, and the
screw is rotatably connected with the limiting plate. A positioning
sleeve matched with the magnet is arranged on the positioning
plate. The upper end of the screw is provided with a five-star
handle for rotating the screw, and the bottom end of the screw is
provided with a screw baffle. The positioning plate is provided
with a limiting hole of which the diameter is smaller than that of
the magnet. By adopting the design, the utility model has the
advantages of no damage to the module, easy operation, adjustable
suction to objects, convenient carrying and safe use.
Quick detail Of Outdoor Rental LED Screen
1, Pixel Pitch: 2.9mm, 3.91mm, 4.81mm
2, Waterproof Nation Star SMD LEDs, high brightness and high
reliability
3, Greyscale: 14bits with NOVA A5S, 22bits with NOVA Star A8S
4, Cabinet size: 500x500mm Die Cast Aluminum Cabinet
5, Service type: Waterproof and magnetic front service
6, PSU: Pin connection independent power box, easily and evenly
remove and put on
7, Refresh Rate: 3840Hz
8, Ingress Rate: IP68 Outdoor standard and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>5000cd/sqm

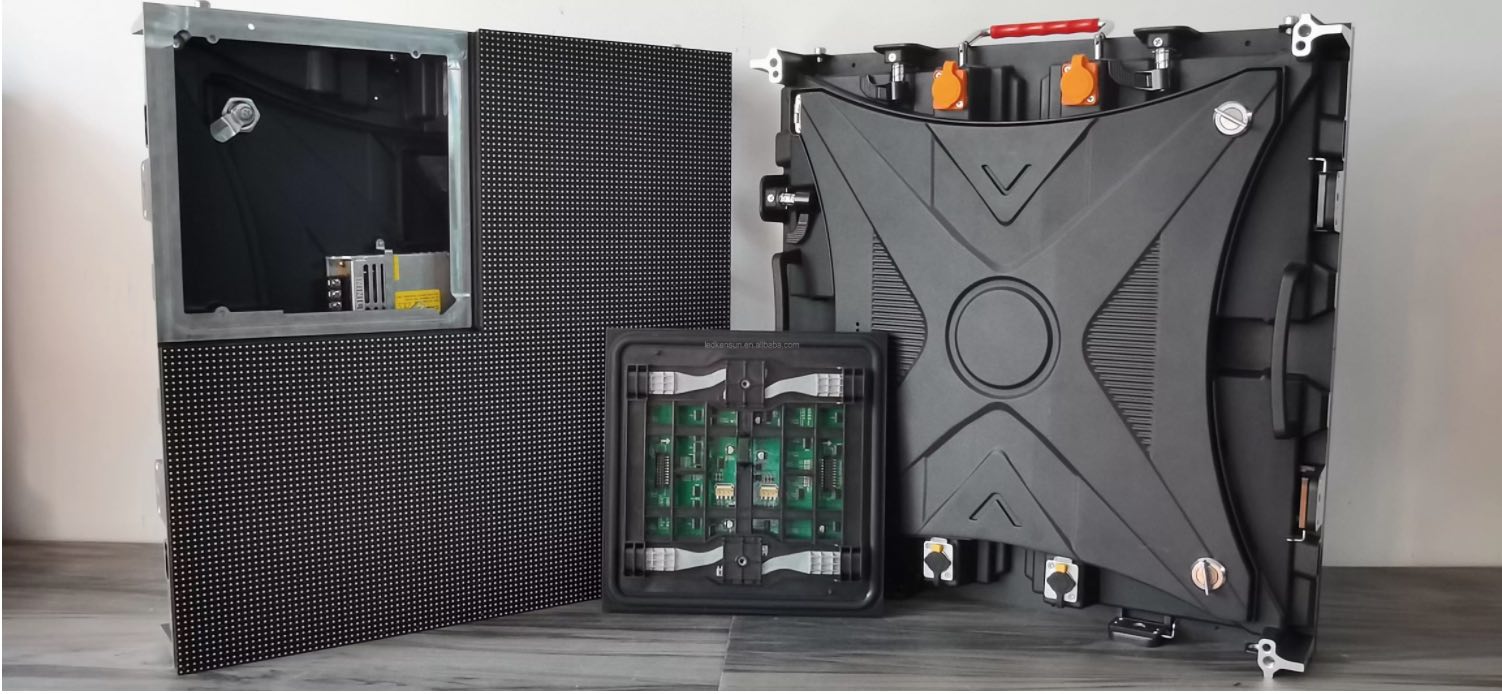

Specification Of Outdoor Rental LED Screen Front Service
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan
|
Feature Of Outdoor Rental LED Screen Front Service
1, ultra-thin: single box 7.5KG, 60mm thick;
2. Ultra-high refresh rate: It can ensure that high-definition
cameras and video cameras can capture high-definition and exquisite
display pictures when shooting;
3, low brightness and high gray performance: in the case of low
brightness, the display gray is uniform, and the display
consistency is good; n 4. High contrast: mask design, blackbody
SMD, non-reflective surface, large viewing angle, good display
effect;
5. High uniformity of brightness and color: select the same batch
of light-emitting devices with high quality to ensure high
uniformity;
6. Dark, bright and ghost phenomena in the adopted blanking scheme;
7. High reliability and long service life: The design of the
direct-insert adapter board is adopted to simplify the internal
connection of the box, effectively reduce the problem of poor
connection and reduce signal attenuation and interference.
High-quality light-emitting devices ensure high reliability and
long service life;
8. Seamless and fast splicing, simple maintenance: the lock catch
structure is adopted to make the splicing operation simple and
convenient without tools;
9, no noise: quiet design, free of air conditioning, free of fan
installation, eliminate noise, reduce power consumption, energy
saving;
10. Real-time error detection function: It can detect whether each
LED is in an open circuit state without adding additional external
components, and can eliminate problems such as crosses;
11. Front maintenance structure: convenient for disassembly,
replacement and maintenance..
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
