Indoor P2.5mm 320x160mm Front Magnetic Maintenance Flexible LED
Module 2880Hz

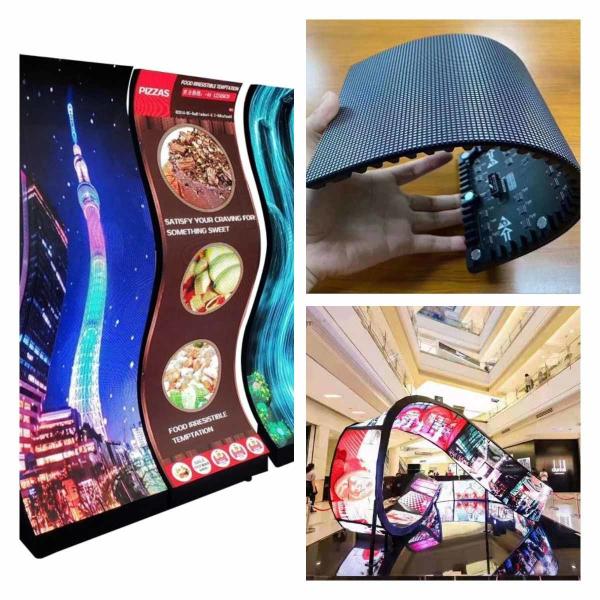

Application Of Soft LED Display
LED soft screen is a solution to adapt to the changing needs of LED
display shape and the diversity of installation and use sites. It
is a soft non-metalized design LED display product, which can be
installed in any environment and can also be easily made into a
circular arc screen with a diameter of less than 20cm.
1, modular design, easy to install and maintain.
2. Ultra-lightweight, based on metal-free design, it is lighter
than any display products of the same specification. The weight of
this soft screen itself is only about 10 kg per square meter, which
is easy to move and transport. Because it can be curled, you can
easily roll it up and pack it, and quickly send it to the
installation site.
3, ultra-thin design, the thickness is only 1.3cm, it is easy to do
a variety of complex surface shape, to meet the changing needs of
use.
4, can adapt to complex installation environment. It can be
installed in horizontal and vertical bending deformation, even in
complex installation environment, it can present perfect picture.
5. High-quality power supply, stable and reliable. High-quality
power supply is selected to further ensure the long-term stable
operation of the product.
LED soft screen has the advantages of lightness, thinness and
transparency, and its ingenious structural design enables it to
achieve horizontal and vertical bending and deformation
installation, which can be perfectly realized even if the
installation requirements are complex. The quick installation
method makes the installation and disassembly of the product handy.
Quick detail Of Indoor Flexible LED Screen
1, Pixel Pitch: 1.86mm, 2mm, 2.5mm, 3mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 140°/
140°.
3, Greyscale: 16bits with NOVA Star MRV328
4, Cabinet size: Customized according to actual application
5, Recommended Viewing Distance: 1-4m.
6, Cabinet Material: Aluminum Cabinet or mount to the steel
structure directly
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 Indoor
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:500-800cd/sqm
11, Curve Installation: Yes, any kind of curve installation
Specification Of Indoor Soft LED Screen
| Pixel Pitch | 1.86mm | 2.5mm | 2mm | 3mm |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density | 289,050 pixels/m2 | 160,000 pixels/m2 | 250,000 pixels/m2 | 111,111 pixels/m2 |
| Module Dimensions(W x H) (mm) | 320 x 160 |
| Module Resolution | 172x86 | 128 x 64 | 160 x 80 | 104 x 52 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per module | 400g |
| Digital Processing | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >600 nits | >750 nits | >750 nits | >750 nits |
| Refresh Rate | >2,880 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/43 Scan | 1/32 Scan | 1/40 Scan | 1/26 Scan |
Description Of Indoor Soft LED Display
1.1 Scope of application This specification only applies to the
320mm X 160mm modules in the XR series. The dot spacing includes
1.86mm, 2mm, 2.5mm, 3mm.
1.2 Main features:
--Module standardized size design 320mm X 160mm, low current, low
heat, high contrast ratio above 5000:1, refresh 1920-3840 Hz, 14-18
bit gray scale, no delay and no smear in the image;
--The viewing angle is up to 160 °. XR soft module series is
suitable for cylindrical screen, spiral screen, wave screen, ribbon
screen and other artistic models. Application scenarios: planning
museum, science and technology museum, urban planning museum, art
gallery, museum, creative center, etc;
--The box structure adopts high-strength sheet metal sandblasting
iron box with unique sectional splicing process, which effectively
reduces the splicing gap of the screen body;
--The module is installed by strong magnetic adsorption, which can
be adjusted slightly, and the flatness of the screen body is good.
Power box front maintenance design, special scenarios, can achieve
front installation, with specific tools to meet the front
maintenance;
--The PCB board is made of flexible soft board, and the bottom
shell is made of superior silica gel material;
Module thickness is only 8.6mm, ultra-thin design, small footprint;
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
