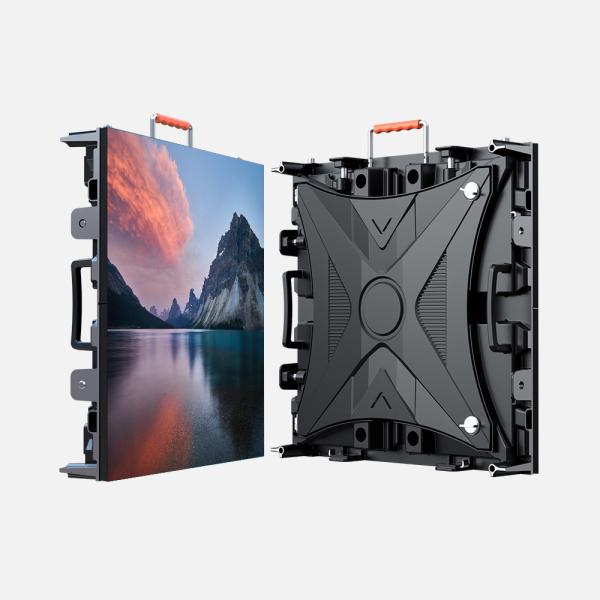

High Definition SMD Rental Stage Video Wall 3.125mm 3.91mm Pixel
Pitch
Application Of Outdoor Front Service Rental LED Video Wall
High-end outdoor rental LED display, featuring "thin and light,
front maintenance, seamless splicing", using SMD2121 black light,
pixel spacing 5.2mm, display effect ultra-high-definition, can
achieve 65536 level ultra-high contrast; single box is only 9 kg,
the thinnest part is 15 mm; The module adopts magnet design and
modular design of power board, which can be maintained in front and
improve work efficiency quickly. n Indoor rental LED display
requires extremely high product quality, because it is not only
necessary to ensure the comfort of the audience but also to ensure
that the effect of live shooting, live broadcasting or replay of
various media is high and clear, which requires high performance,
grayscale and refresh rate of LED display. Otherwise, when the
audience watches the TV broadcast, the picture may appear
flickering or water ripple, which will affect the effect of the
activity. At the same time, rapid disassembly and maintenance are
also the basic requirements for the rental screen.
Based on the previous features, the new Mini II and Genie IV are
developed to be easy to maintain; The LED display screen module
structure is taken down from the LED display screen box body by
adopting the magnetic adsorption of the magnetic element and the
LED display screen box body for pre-maintenance; and compared with
a module structure requiring screw disassembly in the prior art,
the module structure is simpler and more convenient to disassemble,
reduces the damage to module parts to the greatest extent, and
ensures the integrity of the module structure.
Quick detail Of Outdoor Rental LED Screen
1, Pixel Pitch: 3.125mm, 3.91mm, 4.81mm
2, Waterproof Nation Star SMD LEDs, high brightness and high
reliability
3, Greyscale: 14bits with NOVA A5S, 22bits with NOVA Star A8S
4, Cabinet size: 500x500mm Die Cast Aluminum Cabinet
5, Service type: Waterproof and magnetic front service
6, PSU: Pin connection independent power box, easily and evenly
remove and put on
7, Refresh Rate: 3840Hz
8, Ingress Rate: IP68 Outdoor standard and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>5000cd/sqm
Specification Of Outdoor Rental LED Screen Front Service
| Pixel Pitch | 3.125mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 102,400 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 80 x 80 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 160 x 160 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/10 Scan | 1/16 Scan | 1/13 Scan
|
Feature Of Outdoor Rental LED Screen Front Service
1, ultra-thin: single box 7.5KG, 60mm thick;
2. Ultra-high refresh rate: It can ensure that high-definition
cameras and video cameras can capture high-definition and exquisite
display pictures when shooting;
3, low brightness and high gray performance: in the case of low
brightness, the display gray is uniform, and the display
consistency is good; n 4. High contrast: mask design, blackbody
SMD, non-reflective surface, large viewing angle, good display
effect;
5. High uniformity of brightness and color: select the same batch
of light-emitting devices with high quality to ensure high
uniformity;
6. Dark, bright and ghost phenomena in the adopted blanking scheme;
7. High reliability and long service life: The design of the
direct-insert adapter board is adopted to simplify the internal
connection of the box, effectively reduce the problem of poor
connection and reduce signal attenuation and interference.
High-quality light-emitting devices ensure high reliability and
long service life;
8. Seamless and fast splicing, simple maintenance: the lock catch
structure is adopted to make the splicing operation simple and
convenient without tools;
9, no noise: quiet design, free of air conditioning, free of fan
installation, eliminate noise, reduce power consumption, energy
saving;
10. Real-time error detection function: It can detect whether each
LED is in an open circuit state without adding additional external
components, and can eliminate problems such as crosses;
11. Front maintenance structure: convenient for disassembly,
replacement and maintenance..
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
