P4.81mm Outdoor Stage Rental LED Display High Brightness 5000nits
3840Hz Refresh Rate
Application Of Outdoor Rental LED Screen
Outdoor rental display is the best choice to be perfectly applied
to different places and types of activities, the event organizer
has equipped it with a full range of accessories to provide more
creative ideas and solutions for the upcoming outdoor performances.

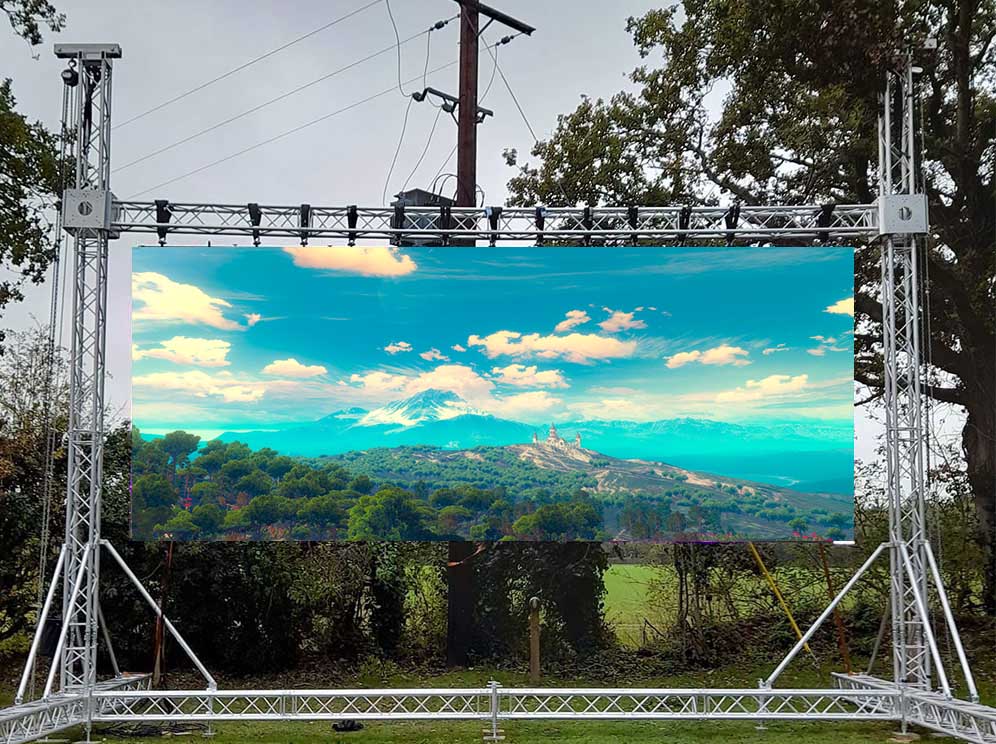

Support landing stacking and aerial hoisting By stacking/lifting
accessories, customers can choose the appropriate installation
scheme according to the needs of different scenarios. Support a
variety of creative collocation According to different types of
activities, two box sizes of 500 X 500mm and 1000 X 500mm can be
flexibly spliced to customize the personalized construction scheme.
Best display indoors and outdoors All cabinets are configured with
a brightness of 5000 nits to ensure excellent display even in
direct sunlight.
This is an important investment of event organizers, TBC LED rental
series is thin, tough, bright, easy to maintain, and most
importantly, stable and reliable product performance. Without a
doubt, it meets the expectations of everyone.
Quick detail Of Outdoor Rental LED Screen
1, Pixel Pitch: 2.9mm, 3.91mm, 4.81mm
2, Waterproof Nation Star SMD LEDs, high brightness and high
reliability
3, Greyscale: 14bits with NOVA A5S, 22bits with NOVA Star A8S
4, Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet
5, Service type: Waterproof and magnetic front service
6, PSU: Pin connection independent power box, easily and evenly
remove and put on
7, Refresh Rate: 3840Hz
8, Ingress Rate: IP68 Outdoor standard and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>5000cd/sqm
11, Curve Installation: Rotary lock for +- 15 degree Concave and
Convex shape
12, Corner Protector: Semi-auto Corner Protector, gently push and
release the protector for the max security of LEDs
Specification Of Outdoor Rental LED Screen
| AT 2.9 | AT 3.9 | AT 4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan
|
Feature Of Outdoor Rental LED Screen
TBC LED Ant Series outdoor rental led screen include P2.9mm, 3.91mm
and P4.81mm Features are:
1, Adjustable Angle lock for curve Application via Rotary Lock
2, Advanced Flash Function: The Calibration Data can be Saved to
the receiver card and used automatically
3, Outdoor Waterproof IP68 Standard, Rear Maintenance via Screw
4, Rubber seal for the back of the module, to create maximum
protection against rain or moisture
5, Easy to use corner protectors, push it and corner protector
released
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
