Indoor P2.9mm Rental LED Screen 500x1000mm Die Cast Aluminum
Cabinet With 3840Hz Flicker Free Refresh Rate
Advantages Of Indoor Rental LED Screen
Stage background LED display screen Outdoor 500 * 1000 mm
anti-collision rental LED display screen, outdoor stage background
LED display video control system not only has a dual backup system,
in case of failure, it can immediately switch to the standby
system, but also provides related maintenance spare parts, all
backups are modular design, convenient for after-sales maintenance;

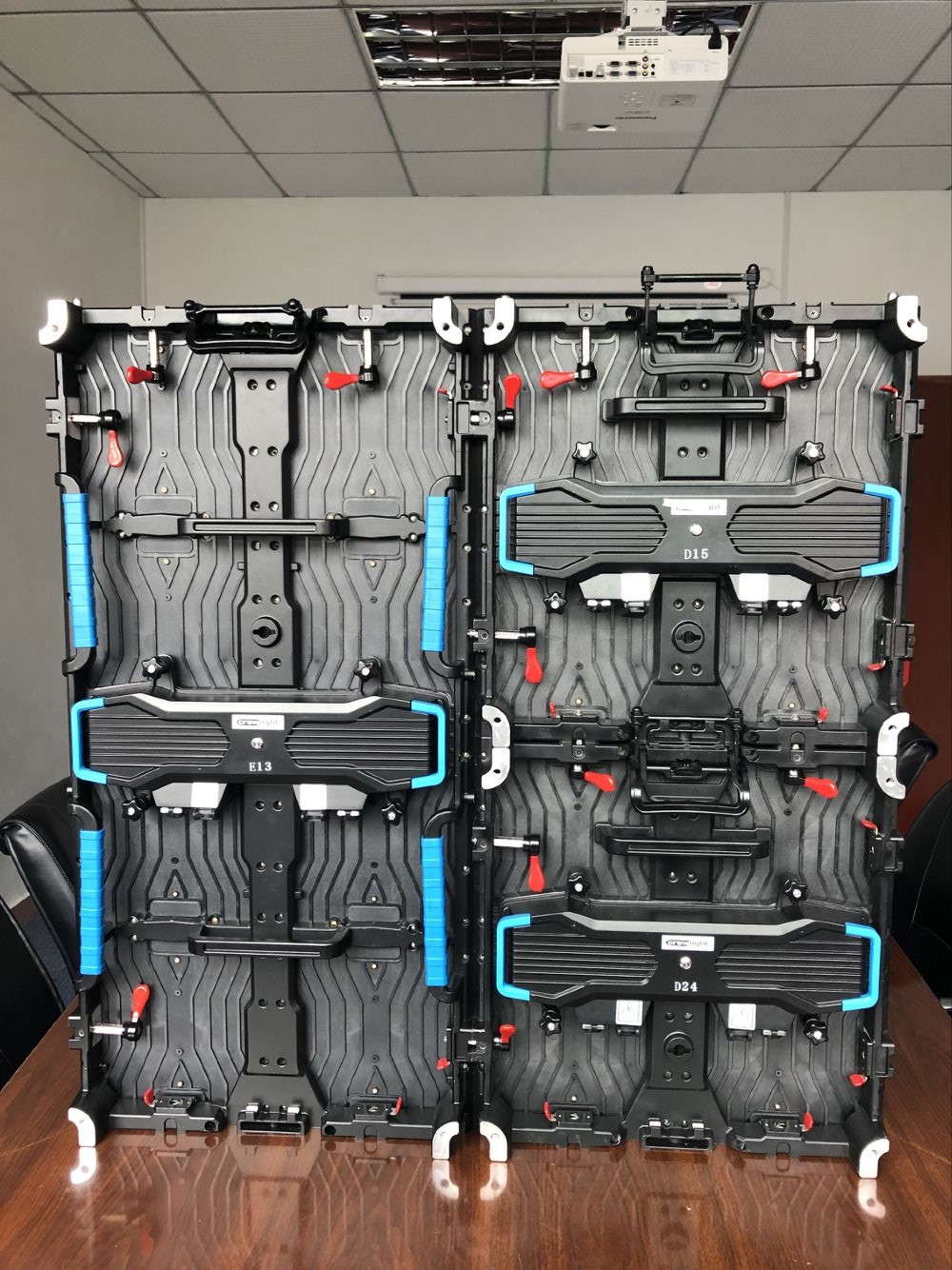

Adopt ultra-thin single box 7.5KG, 80mm thick; front maintenance
structure, easy to replace and maintain, with wider color gamut
space and faster response speed, can achieve any size seamless
splicing, modular maintenance
Light and thin series of quick lock assembly design, support front
and rear maintenance mode, inside and outside arc assembly, with
anti-knock, climbing and floor tile functions, high gray and low
brightness, stable performance, is another classic rental display
screen.
Quick detail Of Indoor Rental LED Screen
1, Pixel Pitch: 2.6mm. 2.9mm, 3.91mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 140°/
140°.
3, Greyscale: 16bits with NOVA Star MRV328
4, Cabinet size: 500x500mm Die Cast Aluminum
5, Recommended Viewing Distance: 2-4m.
6, Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 Indoor
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:>1000cd/sqm
11, Curve Installation: Yes, Concave and Convex Available
12, Corner Protector: Available
Specification Of Indoor Rental LED Screen
| XT1.95 | XT 2.6 | XT 2.9 | XT 3.91 |
| Pixel Pitch | 1.953mm | 2.604mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density | 262,144 pixels/m2 | 147,456 pixels/m2 | 112,986 pixels/m2 | 65,536 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 128x128 | 96 x 96 | 84 x 84 | 64 x 64 |
| Cabinet Resolution | 256x256 | 192 x 192 | 168 x 168 | 128 x 128 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840 Hz | >3,840 -7680Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/32 Scan | 1/32 Scan | 1/21 Scan | 1/16 Scan |
Description Of Indoor Rental LED Screen
TBC LED Rental Series indoor rental led screen include P1.95mm,
P2.6mm, P2.9mm, 3.91mm. Features are:
1, Suitable for all kind of rental events and fix installation
2, Good quality diobes, ensure high brightness and high contrast
3, Front and Rear Maintenance via Magnets
4, Refresh rate 3840Hz and adjustable
5, 500x500mm die cast aluminum cabinet, light weight and slim
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
