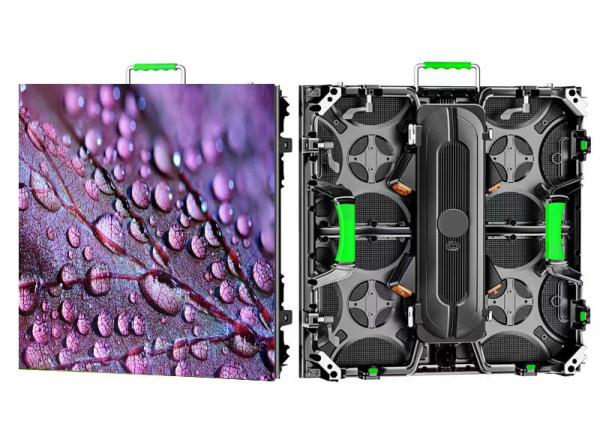

Outdoor P3.91 500x500mm Rental LED Screen With 5000nits brightness
CE, ROHS, FCC Certified
Application of Outdoor Rental LED Screen 500x500
HIDA magic crystal series products redefine the LED display screen
with unit size resolution, truly meet the actual application needs
of users in a certain display area, display multiple standard
systems at the same time, and are not compressed by the signal
source, match the resolution of the standard signal source actually
collected by users on site, break through the limitations of the
traditional LED industry in defining the LED screen from the
perspective of pixel spacing and manufacturers rather than users,
and will lead the industry into a healthy A new stage of
development that truly interacts with customers.
With the continuous promotion of the construction of Digital China,
the 4k/8k UHD large screen industry is bound to usher in rapid
growth. In the era of screen connecting everything, HIDA electronic
phantom crystal series products have broken through the ceiling of
ultra-high definition display technology, redefined the large LED
screen with ultra-high resolution, and built a larger ultra-high
definition display ecological space for users. Following the global
launch of the ISE Europe exhibition, magic crystal products will
soon meet users at home and abroad in the form of conference
all-in-one machines, super TVs, giant screen display walls and
other rich products, bringing more diversified application values
to users with full-scale layout, full series coverage and full
scene applications.
Specification Of Outdoor Rental LED Screen
| AT 2.9 | AT 3.9 | AT 4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
Feature Of Outdoor 500x500 Rental LED Screen
1. Integrated compact design, cableless design, fast replacement of
power box.
2. With fast lock design, 500x500mm and 500x1000mm cabinet can be
easily spclied up and down, and mixed use.
3. Reinforced connection design, all connection part is strong and
reliable for all kinds of application.
4. High precision, with high end CNC machine, the allowance is as
small as within 0.1mm, which keeps the screen in perfect flat
surface and create smooth image performance.
5. Packing, with strong and high end flight cases, 8 in 1 or 6 in 1
as customer demand.
Our Services
1. 15 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. CE, ROHS, FCC, ETL, TUV certified supplier
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
