    Front Service Outdoor P10 LED Display IP65 7000nits Brightness 3840Hz Refresh Rate

    Ask Lasest Price
    Brand Name : TBC LED
    Model Number : P10
    Certification : FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000 sqm per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Front Service Outdoor P10 LED Display IP65 7000nits Brightness 3840Hz Refresh Rate

    Outdoor P10mm Front Service IP65 7000nits Brightness LED Display 3840Hz Refresh Rate

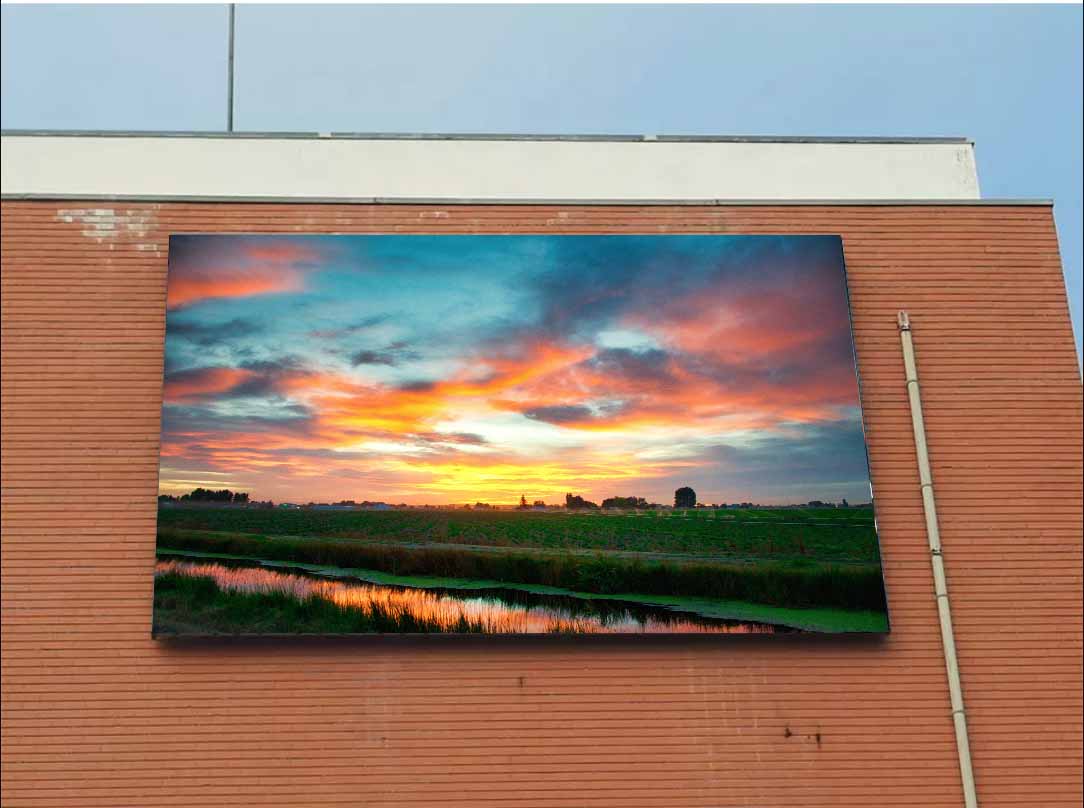

    Application Of Outdoor LED Advertising Display

    The application of outdoor LED screen includes LED screen of urban building curtain wall: in prosperous cities, we can always see LED screen of urban building curtain wall, which provides more opportunities for outdoor LED screen. This part has universal applications, including city landmarks, airports, car 4S stores, hotels, banks, etc. It is our commitment to our customers to provide good service every time.

    The external walls and glass curtain walls of the buildings are mainly concentrated in the prosperous urban areas, and most of them are urban landmark buildings. The use of LED displays in these scenes can play a good role in advertising, information dissemination and other functions.

    For municipal works, the government can release the latest information and publicize public services through LED displays set at busy street intersections, large parks, large business centers, subways, highways and other places with large traffic.


    Quick detail Of Outdoor LED Advertising Billboard


    1, Pixel Pitch: 6.67mm, 8mm, 10mm
    2, SMD3535 LED, high brightness and durable for outdoor use
    3, Greyscale: 16bits
    4, Cabinet size: 960x960mm Steel Or Aluminum Cabinet
    5, Recommended Viewing Distance: 6-16m.

    6, Cabinet Material: Cold Rolled Steel Cabinet, 50kg per Panel

    7, Refresh Rate: 3840Hz

    8, Ingress Rate: IP65 Outdoor Standard Connectors

    9, Quality Certificate:CE, RoHS,FCC, ETL

    10, Brightness:>5500-6000cd/sqm

    11, Curve Installation: Yes, Concave and Convex Available


    Specification Of Outdoor LED Advertising Screen

    Product Unit Parameters

    Parameters

    ModeS6.67mmS8mmS10mm
    LEDs1R1G1B1R1G1B1R1G1B
    LED typeSMD3535SMD3535SMD3535
    Pixel pitch6.67mm8mm10mm
    Unit sizeW960×H960mmW960×H960mmW960×H960mm
    Unit resolution144×144 dots120×120 dots96×96 dots
    Resolution22,500dots/㎡12,625dots/㎡10,000dots/㎡
    Brightness≥5500nit≥5500nit≥6000nit
    Weight55KG/㎡55KG/㎡55KG/㎡
    Max consumption500W/㎡500W/㎡500W/㎡
    Adv consumption260W/㎡230W/㎡235W/㎡
    Viewing angleH120°/V120°H120°/V120°H120°/V120°
    Protection levelIP65IP65IP65
    Thickness150mm150mm150mm
    Install depth200mm200mm200mm

    Heat dissipation


    Convective heat dissipationConvective heat dissipationConvective heat dissipation
    Wind dissipaionLevel 12Level 12Level 12
    Power supplyPower supply with PFCPower supply with PFCPower supply with PFC
    InstallationFast installFast installFast install
    Fire safety10S/unit10S/unit10S/unit
    Fire resistanceFull VO gradeFull VO gradeFull VO grade
    ServiceFront,BackFront,BackFront,Back
    Control modesteady statesteady statesteady state
    Color temperature3200-9300K3200-9300K3200-9300K
    Refresh rate60Hz60Hz60Hz
    Working temperature-40℃ to 70℃-40℃ to 70℃-40℃ to 70℃
    Storage temperature-55℃ to 120℃-55℃ to 120℃-55℃ to 120℃
    Life time≥100,000 hours≥100,000 hours≥100,000 hours
    Input voltageAC110-220VAC110-220VAC110-220V
    Grey grade16bit16bit16bit
    Seismic capability10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

    Feature Of Ultra Light Weight Outdoor LED Advertising Billboard

    1. Comparison of box materials. Compared with iron, aluminum has the characteristics of light weight, good toughness, corrosion resistance and better thermal conductivity. In humid environment, the aluminum module can form a layer of oxide film to prevent metal corrosion, effectively preventing further corrosion. As a new universal metal, aluminum module is widely used because of its light weight, good electrical and thermal conductivity, high reflectivity and oxidation resistance. At room temperature, iron in dry air is not easy to react with oxygen, sulfur, chlorine and other non-metallic simple substances, if there are impurities in humid air, it is easy to rust; Rust occurs more quickly in humid air in the presence of solutions of acids, bases, or salts. Therefore, for the iron material, it needs some maintenance and the surrounding environment also needs some adaptation.

    2. Module comparison 1). Conventional product installation and maintenance requires more screws, which is very time-consuming. The aluminum bottom shell is designed with a side lock and free of screws, which can be easily maintained in two steps. 2). Exposed components of conventional products; The aluminum bottom shell is fully enclosed and wrapped to protect the components. 3). Conventional plastic products have low thermal conductivity and release harmful substances at high temperatures – polyvinyl chloride, with a recovery rate of only 1%. The aluminum bottom shell has high heat conduction point, good heat dissipation performance, no release of harmful substances, and the recovery rate is as high as 85%.

    outdoor p10 led screen front service

    outdoor p10 led screen front service

    outdoor p10 led screen front service


    Our Services


    1. 10 Years professional led display manufacturer

    2. Short delivery time: 5-15 working days, adjustable according to customer request
    3. Wholesale price

    4. OEM and ODM service
    5. Customizable product upon request


    FAQ


    Q1. How does the service work?

    A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

    Q2. What installation options do we have?

    A: Wall mounting with metal structures.

    Q3. Do you have any MOQ limit for led screen order?

    A: Low MOQ, modules or complete screen order are all welcome.

    Q4. What's the shipping method?

    A: Air freight, sea and train transport according to different region.

    Q5. What's the payment method?

    A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

    Q6. How do you control the production quality?

    A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

    The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

    Q7: How does warranty work?

    A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
