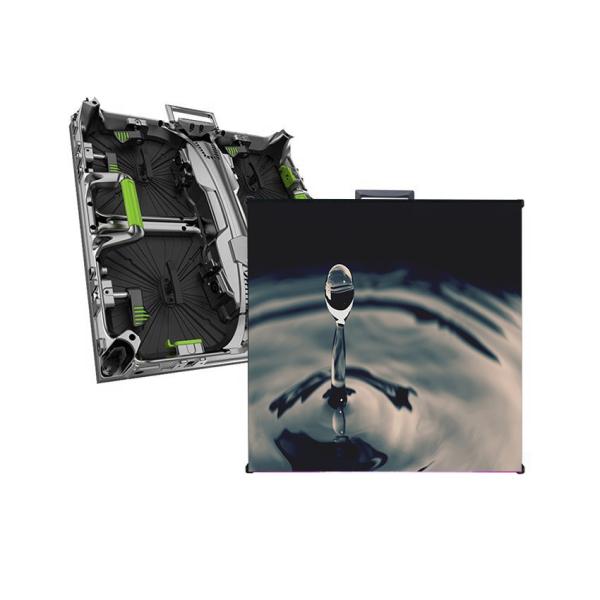

    Giant Series Outdoor P4.81mm Stage Rental LED Screen 5000nits 500x500mm

    Ask Lasest Price
    Brand Name : TBC LED
    Model Number : P4.81
    Certification : FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000 sqm per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Giant Series Outdoor P4.81mm Stage Rental LED Screen 5000nits 500x500mm

    Giant Series Outdoor P4.81mm Stage Rental LED Display 5000nits 500x500mm


    Application Of Outdoor Giant Series Rental LED Video Wall

    Command and Control Center

    With the innovation and development of LED display technology, LED rental screens have been widely used in stage backgrounds, bar entertainment, wedding ceremonies, musicals, conferences and other large-scale activities. The whole process, especially the performance scene of the rental series. In order to achieve diversified display effects, it is required that the leased LED screen can easily switch to different splicing shapes. Therefore, the leased LED display screen should not only be light, easy to install and set, but also have high stability


    Program features

    Excellent design should be easy to understand, and the product will speak by itself, eliminating the need for detailed explanation.

    Seamless splicing: Through our special connector design, the gap can be easily reduced during installation to create a perfect display.

    The latest anti-collision technology is adopted to make the cabinets more stable and have a longer service life in leasing activities.

    Die cast aluminum control box, suitable for all kinds of weather.

    Customized arc design: according to the customer's requirements, the bevel cabinet is designed to assemble the arc screen.

    Gap free connection: the tolerance gap between cabinets and modules is less than 0.1mm, and the tolerance gap between cabinets is less than 0.2mm.


    Quick detail Of Outdoor Rental LED Screen

    1, Pixel Pitch: 2.9mm, 3.91mm, 4.81mm
    2, Waterproof Nation Star SMD LEDs, high brightness and high reliability
    3, Greyscale: 14bits with NOVA A5S, 22bits with NOVA Star A8S
    4, Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet
    5, Service type: Waterproof and magnetic front service

    6, PSU: Pin connection independent power box, easily and evenly remove and put on

    7, Refresh Rate: 3840-7680Hz

    8, Ingress Rate: IP68 Outdoor standard and magnetic front service

    9, Quality Certificate:CE, RoHS,FCC, ETL

    10, Brightness:>5000cd/sqm

    11, Curve Installation: Rotary lock for +- 15 degree Concave and Convex shape

    12, Corner Protector: Semi-auto Corner Protector, gently push and release the protector for the max security of LEDs


    Specification Of Indoor Rental LED Screen

    AT 2.9AT 3.9AT 4.8
    Pixel Pitch2.976mm3.91mm4.81mm
    Pixel ConfigurationSMD1415SMD1921SMD1921
    Pixel Density86,016 pixels/m265,536 pixels/m243,264 pixels/m2
    Module Dimensions(W x H) (mm)250 x 500250 x 250250 x 250
    Panel Dimensions (mm)

    500 x 500 x 80

    500 x 1000 x 80

    500 x 500 x 80

    500 x 1000 x 80

    500 x 500 x 80

    500 x 1000 x 80

    Modules Per Cabinet (W x H)1 x 21 x 21 x 2
    Module Resolution168 x 84128 x 64104 x 52
    Cabinet Resolution168 x 168128 x 128104 x 104
    Panel MaterialDie Cast AluminumDie Cast AluminumDie Cast Aluminum
    Weight per Cabinet7.5kg7.5kg7.5kg
    Digital Processing16bit16bit16bit
    Colours281 trillion281 trillion281 trillion
    Contrast Ratio5,000 : 15,000 : 15,000 : 1
    Average Power Consumption200 W /Sqm200 W /panel200 W /panel
    Max Power Consumption650 W /Sqm650 W /panel650 W /panel
    Brightness>5,000 nits>5,000 nits>5,000 nits
    Refresh Rate>3,840Hz>3,840 Hz>3,840 Hz
    Vertical Viewing Angle160°160°160°
    Horizontal Viewing Angle140°140°140°
    Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs
    ServicingFrontFrontFront
    IP Rating (Front/Rear)IP 68IP 68IP 68
    Operating Temp/Humidity-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%
    Storage Temp/Humidity-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%-20ºC - 50ºC / 10% - 90%
    Scan Method1/21 Scan1/16 Scan1/13 Scan

    Feature Of Outdoor Rental LED Screen

    TBC LED Ant Series outdoor rental led screen include P2.9mm, 3.91mm and P4.81mm Features are:

    1, Adjustable Angle lock for curve Application via Rotary Lock

    2, Advanced Flash Function: The Calibration Data can be Saved to the receiver card and used automatically

    3, Outdoor Waterproof IP68 Standard, Front and Rear Maintenance via Magnets

    4, Rubber seal for the back of the module, to create maximum protection against rain or moisture

    5, Easy to use corner protectors, push it and corner protector released

    p4.81 outdoor rental led display

    p4.81 outdoor rental led display

    p4.81 outdoor rental led display


    Our Services


    1. 10 Years professional led display manufacturer

    2. Short delivery time: 5-15 working days, adjustable according to customer request
    3. Wholesale price

    4. OEM and ODM service
    5. Customizable product upon request


    FAQ


    Q1. How does the semi-auto corner protector work?


    A: Gently push the button, the corner protector will release and cover the corner area.

    Q2. What installation options do we have?

    A: Either stacking on the ground or hanging is supported.

    Q3. Do you have any MOQ limit for led screen orders?

    A: Low MOQ, modules or complete screen orders are all welcome.

    Q4. What's the shipping method?

    A: Airfreight, sea and train transport according to different regions.

    Q5. What's the payment method?

    A: Mostly we accept telegraphic transfer, 50% before production and 50% balance before shipment.

    Q6. How do you control the production quality?

    A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

    The modules and complete screen will have at least 72 hours aging test, to make sure of stable quality and performance.

    Q7: How does warranty work?

    A: We provide 1-3 years warranty for different products. Free Repair or Exchange of Defective Parts with One-way Shipping
