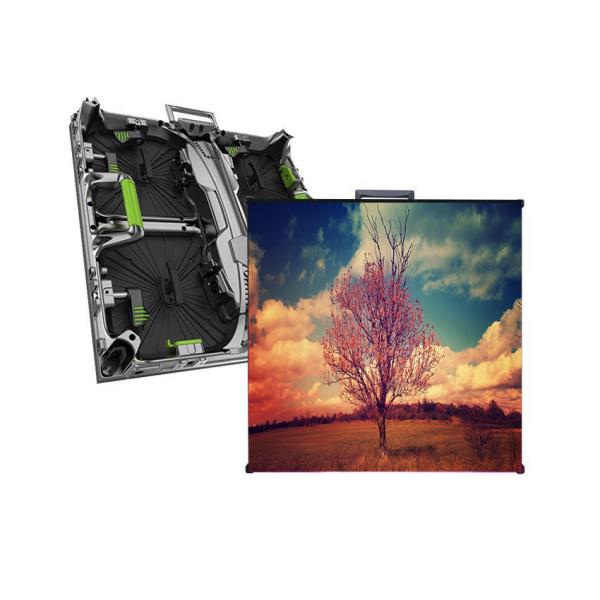

Giant Series Outdoor P3.91mm 500x500mm Stage Rental LED Display
5000nits High Brightness
Application Of Outdoor Giant Series Rental LED Video Wall
Compared with traditional indoor and outdoor displays, stage
displays require different configurations due to different purposes
and functions. Here is a comparison between LED stage rental screen
and traditional display screen: First, the selection is different.
Because the stage rental screen has a high display of stage beauty,
the screen playing effect is required to be clearer. Therefore,
P3P4 high-definition screen is generally used for indoor
environment, and even more stringent, P2.5P2 with small spacing is
used, while P6P5 is used for outdoor environment. As for the
traditional indoor and outdoor display screens, because of the long
viewing distance or low display requirements, P6P5 models are
generally used indoors, with P10 being the most frequently used
outdoors, followed by P16. In addition, there are surface stickers
indoors. Plug in lamps are usually used outdoors, but sometimes
surface stickers are also used.
Quick detail Of Outdoor Rental LED Screen
1, Pixel Pitch: 2.9mm, 3.91mm, 4.81mm
2, Waterproof Nation Star SMD LEDs, high brightness and high
reliability
3, Greyscale: 14bits with NOVA A5S, 22bits with NOVA Star A8S
4, Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet
5, Service type: Waterproof and magnetic front service
6, PSU: Pin connection independent power box, easily and evenly
remove and put on
7, Refresh Rate: 3840-7680Hz
8, Ingress Rate: IP68 Outdoor standard and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>5000cd/sqm
11, Curve Installation: Rotary lock for +- 15 degree Concave and
Convex shape
12, Corner Protector: Semi-auto Corner Protector, gently push and
release the protector for the max security of LEDs
Specification Of Indoor Rental LED Screen
| AT 2.9 | AT 3.9 | AT 4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan
|
Feature Of Outdoor Rental LED Screen
TBC LED Ant Series outdoor rental led screen include P2.9mm, 3.91mm
and P4.81mm Features are:
1, Adjustable Angle lock for curve Application via Rotary Lock
2, Advanced Flash Function: The Calibration Data can be Saved to
the receiver card and used automatically
3, Outdoor Waterproof IP68 Standard, Front and Rear Maintenance via
Magnets
4, Rubber seal for the back of the module, to create maximum
protection against rain or moisture
5, Easy to use corner protectors, push it and corner protector
released
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
