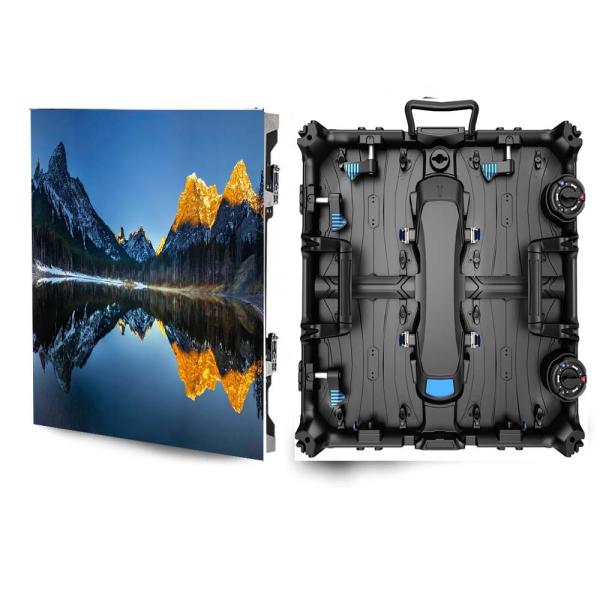

Ghost Series 3840Hz Indoor P2.9mm Stage Rental LED Display
500x500mm Light Weight Design
Feature Of Indoor Giant Series Rental LED Video Wall
The application of LED stage rental screen is live broadcast. The
large and clear live broadcast picture of the game breaks the seat
limit, making it easier to watch performances from a distance and
giving people an immersive audio-visual feast. Wonderful scenes,
slow motion replay, close-up shots, and the creation of special
background environment bring the artistic conception of the
performance into full play. The combination of realistic pictures
and shocking music creates a magnificent and modern scene
High density, high-definition display;
High refresh, high gray scale, high definition and high contrast,
combined with the industry's advanced point by point correction
technology, make the display screen beautiful and realistic,
suitable for the demand of live broadcast on the stage of LED
display;
The installation and disassembly are convenient and fast, and the
rapid disassembly and assembly without tools are really realized;
Frequent video source switching, strong system switching function,
seamless switching;
Adapt to the LED stage screen design. The screen shape is complex
and the screen compatibility is high;
Cooperate with professional audio and video processing equipment to
support arbitrary splicing and splitting of large screens.
Quick detail Of Indoor Rental LED Screen
1, Pixel Pitch: 2.6mm. 2.9mm, 3.91mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 140°/
140°.
3, Greyscale: 16bits, 22bits with NOVA Star A8S
4, Cabinet size: 500x500mm Die Cast Aluminum
5, Recommended Viewing Distance: 2-4m.
6, Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
7, Refresh Rate: 3840-7680Hz
8, Ingress Rate: IP43 Indoor, IP68 Outdoor
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:>1000cd/sqm
11, Curve Installation: Yes, Concave and Convex Available
12, Corner Protector: Yes, Semi-auto Corner Protector
Specification Of Indoor Rental LED Screen
| XT1.95 | XT 2.6 | XT 2.9 | XT 3.91 |
| Pixel Pitch | 1.953mm | 2.604mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density | 262,144 pixels/m2 | 147,456 pixels/m2 | 112,986 pixels/m2 | 65,536 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 128x128 | 96 x 96 | 84 x 84 | 64 x 64 |
| Cabinet Resolution | 256x256 | 192 x 192 | 168 x 168 | 128 x 128 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840 Hz | >3,840 -7680Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/32 Scan | 1/32 Scan | 1/21 Scan | 1/16 Scan |
Description Of Indoor Rental LED Screen
TBC LED XT Series indoor rental led screen include P1.95mm, P2.6mm,
P2.9mm, 3.91mm. Features are:
1, Curve Application via Rotary Lock
2, Flash Function: Calibration Data Saved and Used Automatically
3, Front and Rear Maintenance via Magnets
4, Independent Power Box
5, Poster Function, Easily switched to a LED Poster
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on ground or haning is supported.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different
region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair
or Exchange of Defective Parts with One way Shipping
