Ghost Series Outdoor P3.91mm Front Magnetic Service 500x500mm Stage
Rental LED Display 5000nits High Brightness

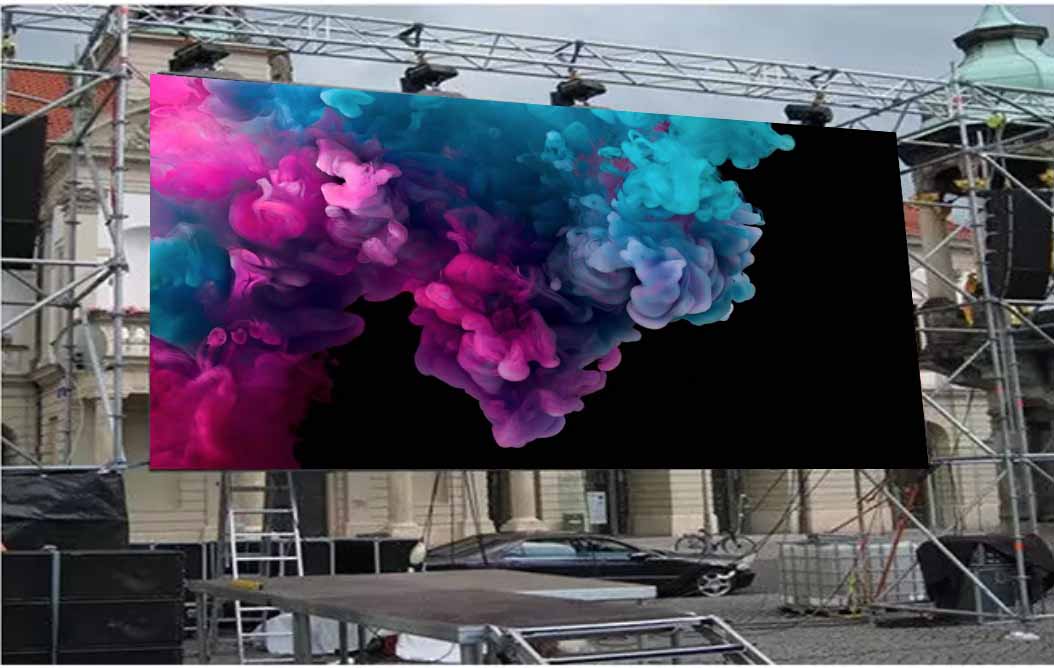

Application Of Outdoor Ghost Series Rental LED Video Wall
1. The shooting distance should be appropriate
As mentioned in the previous discussion on point spacing and
filling rate, for stage LED displays with appropriate point spacing
and filling rate, the appropriate shooting distance is different.
For example, a LED display with 4.25 mm dot spacing and a 60% fill
factor is appropriate. When taking pictures, the distance between
the person and the screen is 4-10 meters, so you can get a good
background image when taking pictures of people.
2. Ensure the correct use environment
The stage LED display is mainly composed of control panel,
switching power supply, light emitting devices, etc. The life and
stability of all these components are closely related to the
working temperature. If the actual working temperature exceeds the
specified range of use, it will not only shorten the service life
of the product, but also seriously damage the product itself. In
addition, the threat of dust can not be ignored. When working in a
dusty environment, PCB will absorb dust. Therefore, when dust
accumulates, it will affect the heat dissipation of electronic
components, causing the temperature of components to rise,
resulting in poor thermal stability or leakage, and in serious
cases may cause burns. Dust can absorb moisture and corrode
electronic circuits, causing short circuit problems that are
difficult to check. Please keep the working room clean, avoid dust
and take care in advance
Quick detail Of Outdoor Rental LED Screen
1, Pixel Pitch: 2.9mm, 3.91mm, 4.81mm
2, Waterproof Nation Star SMD LEDs, high brightness and high
reliability
3, Greyscale: 14bits with NOVA A5S, 22bits with NOVA Star A8S

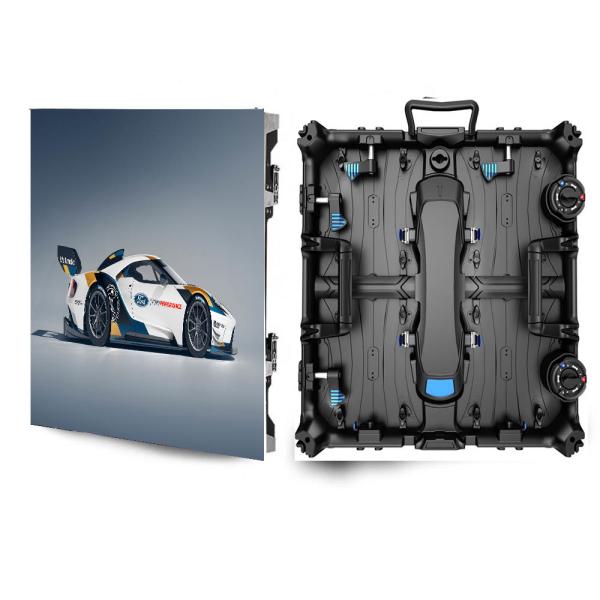

4, Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet
5, Service type: Waterproof and magnetic front service
6, PSU: Pin connection independent power box, easily and evenly
remove and put on
7, Refresh Rate: 3840-7680Hz
8, Ingress Rate: IP68 Outdoor standard and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>5000cd/sqm
11, Curve Installation: Rotary lock for +- 15 degree Concave and
Convex shape
12, Corner Protector: Semi-auto Corner Protector, gently push and
release the protector for the max security of LEDs
Specification Of Indoor Rental LED Screen
| AT 2.9 | AT 3.9 | AT 4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan
|
Feature Of Outdoor Rental LED Screen
TBC LED Ghost Series outdoor rental led screen include P2.9mm,
3.91mm and P4.81mm Features are:
1, Adjustable Angle lock for curve Application via Rotary Lock
2, Advanced Flash Function: The Calibration Data can be Saved to
the receiver card and used automatically
3, Outdoor Waterproof IP68 Standard, Front and Rear Maintenance via
Magnets
4, Rubber seal for the back of the module, to create maximum
protection against rain or moisture
5, Easy to use corner protectors, push it and corner protector
released
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and
cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different
regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and
50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs
and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging
test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free
Repair or Exchange of Defective Parts with One-way Shipping
