Outdoor LED Billboard with High Protection Level and Excellent Heat
Dissipation Performance for Advertising Display
Features of Outdoor LED Billboard
1. Weatherproof and durable
Outdoor solid mounted LED screen can withstand a variety of
relatively harsh weather conditions, including rain, snow, high
temperature and ultraviolet radiation. They typically consist of
weatherproof cabinets or modules that protect internal components
from moisture, dust, and temperature fluctuations.
2. High brightness
In general, outdoor fixed LED screens often use high-intensity LED
and advanced brightness control technology, with higher display
brightness, so that the image content can be clearly displayed in
bright sunlight.
3. Excellent heat dissipation performance
Outdoor mounted LED screens usually operate around the clock and
are usually equipped with radiators, cooling fans or other thermal
management systems to effectively dissipate heat and ensure that
the LED screen operates at the optimal operating temperature.
4. Remote monitoring
Outdoor fixed LED screens usually have remote monitoring and
control functions, so that operators can monitor the status of the
LED screen, remote control screen brightness and playback content,
and receive instant notifications when the LED screen has a problem
or failure.
5. High protection level
The outdoor solid mounted LED screen usually has a higher IP67
protection level to prevent solid particles and rain (or other
liquids) in the outdoor environment from entering the inside of the
screen body, so as to avoid damage to the LED screen and not normal
operation.
Advantages of Outdoor LED Billboard
1. Lighter than standard steel cabinet
2. Use Hard Link to support hot-swap maintenance
3.High precision, Seamless splicing, Good Flatness
Specifications of Outdoor LED Billboard
| No. | Parameter | Value |
| 1 | Pixel pitch | 10mm |
| 2 | Brightness | ≥6000nit |
| 3 | Pixel configuration | SMD2727 |
| 4 | Gray scale | 65536 levels per color |
| 5 | Refresh rate | 3840HZ |
| 6 | Pixel matrix per panel | 96 x 96 |
| 7 | Pixel matrix per sq.m | 10000 |
| 8 | Viewing angle (H /V) | 140/140 deg. |
| 9 | Power consumption (Max /Avg) | 950 / 330 |
| 10 | Protection Level | IP65 |
| 11 | Input voltage (AC) | 110/240 |
| 12 | Panel size (W x H x D) | 1000 x1000x 83mm |
| 13 | Model size (W x H) | 500x250mm |
| 14 | Panel material | Aluminum |
| 15 | Panel weight | 22.5Kg |
| 16 | Working temperature/Storage temperature | -40℃ to 70℃/-55℃ to 120℃ |
| 17 | Life time | ≥100,000 hours |
| 18 | Signal input format (with video processer) | VGA, DVI,RGBHV,PbPr(HDTV),Composite, S-Video, TV |
Application of Outdoor LED Billboard

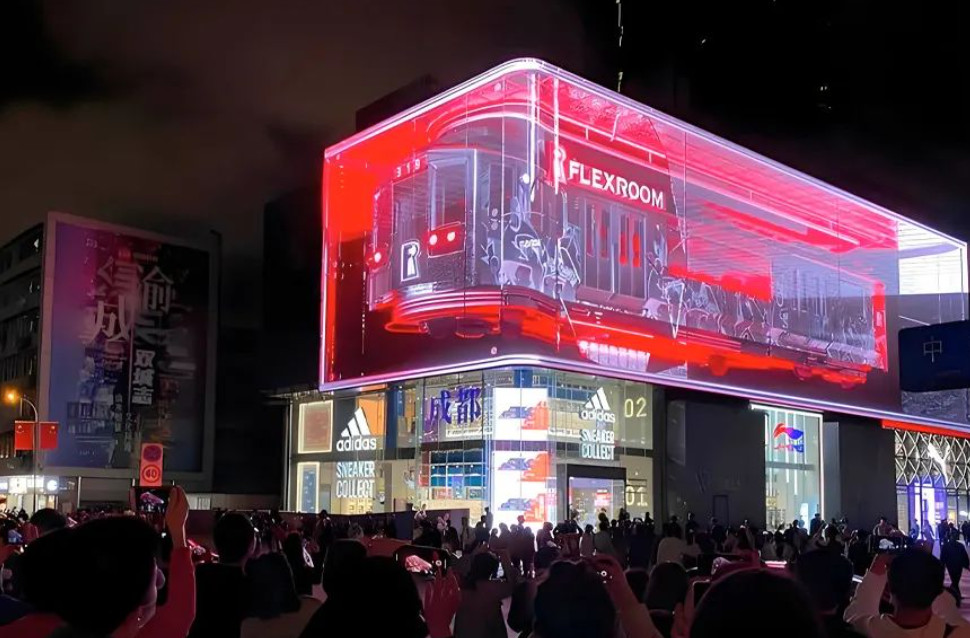

1. Advertising communication
The high brightness and excellent visibility of outdoor LED
displays make them ideal for advertising. This type of display can
be set in high traffic areas, such as commercial centers, stations,
etc., to display advertising content to the public in an
all-weather manner, effectively improving brand awareness and
advertising coverage.
2. Road traffic information display
In road traffic, LED display is used to display real-time road
condition information, traffic warnings, weather forecasts, etc.,
improving the safety and efficiency of road use. Especially in bad
weather conditions, such as fog, the penetration of the LED display
is stronger, which can ensure that the driver can see the
information clearly.
3. Sports venues and event venues
Large sporting events and events often use outdoor LED displays as
fence screens or home screens to update game scores in real time,
broadcast advertisements, and provide audience interaction. These
displays are usually large in size and can reach a wide audience
