    P4.4 Outdoor S Series SMD1921 LED Advertising Display Front and Rear Maintenance 480×320 Module

    Ask Lasest Price
    Brand Name : TBC LED
    Model Number : P4.4
    Certification : FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000 sqm per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    P4.4 Outdoor S Series SMD1921 LED Advertising Display Front and Rear Maintenance 480×320 Module

    P4.4 Outdoor S Series SMD1921 LED Advertising Display Front and Rear Maintenance 480×320 Module


    1. Outdoor S Series Specifications

    ModeS4.4mm
    LEDs1R1G1B
    LED typeSMD1921
    Pixel pitch4.4mm
    Cabinet sizeW960×H960mm
    Cabinet resolution218×218 dots
    Resolution51,529dots/㎡
    Brightness6000nit
    Weight28KG/㎡
    Max consumption500W/㎡
    Adv consumption260W/㎡
    Viewing angleH120°/V120°
    Protection levelIP68
    Thickness95mm

    Heat dissipation

    Convective heat dissipation
    Wind dissipaionLevel 12
    Power supplyPower supply with PFC
    InstallationFast install
    Fire safety10S/unit
    Fire resistanceFull VO grade
    ServiceFront,Back
    Control modesteady state
    Color temperature3200-9300K
    Refresh rate3840Hz
    Working temperature-40℃ to 70℃
    Storage temperature-55℃ to 120℃
    Life time≥100,000 hours
    Input voltageAC110-220V
    Grey grade16bit
    Seismic capability10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

    2. Outdoor S Series P4.4 Product Details

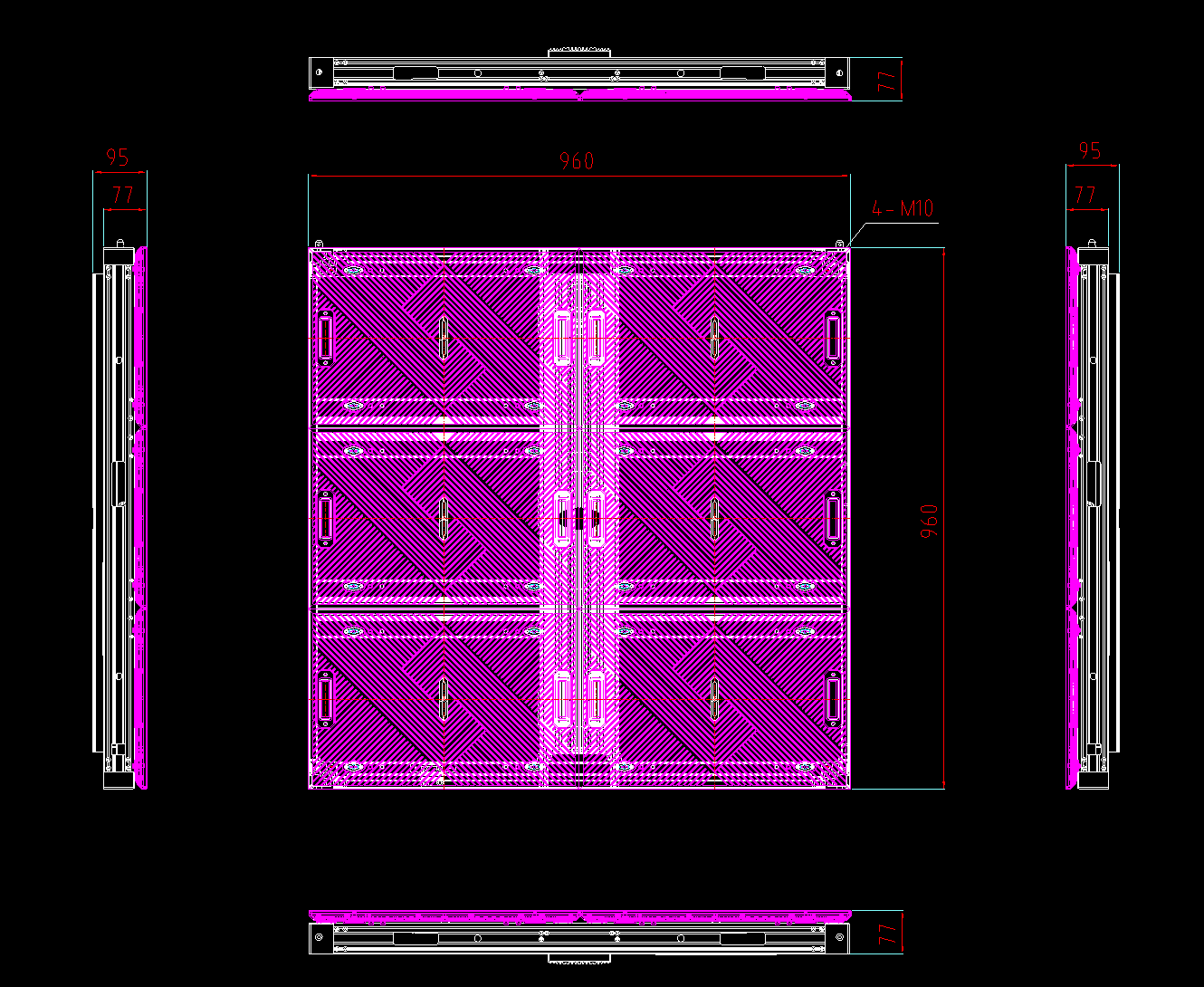

    1. The cabinet is only 77 mm at its thinnest point and 95 mm at its thickest.
    2. Brightness can reach up to 6,000 nits.
    3. Module size is 480x320 mm, allowing flexible combinations for custom sizes; standard cabinet size is 960x960 mm.
    4. The cabinet is made of die-cast aluminum, making it lightweight and slim, with the 960x960 mm cabinet weighing 27.5 kg.
    5. Fire rating: 5VB.
    6. IP rating: 68.


    3. Features of S series P10


    ①High-brightness Nationstar SMD1921 LEDs deliver up to 6,000 nits, ensuring optimal visibility even in direct sunlight.


    ② Outdoor small pitch 4.4mm meets high-definition display requirements.


    ③ Dual Service with Frontal and Real Maintenance

    Dual service mode of front and rear design to save you Maintenance Cost. The LED panel can be assemble and disassemble easily and quickly.
